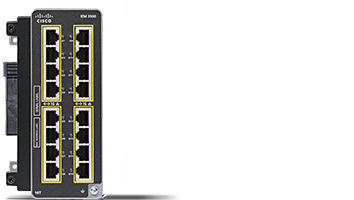

• Cisco IEM-3500-16T 16-port 1G switch with black and gold RJ-45 ports
1 1

Cisco

Cisco IEM-3500-16T | Catalyst IE3500 16x Gigabit Copper Expansion Module

IEM-3500-16T

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IEM-3500-16T is a 16-port Gigabit copper expansion module for the Cisco Catalyst IE3500 Rugged Series industrial Ethernet switches. It adds 16 downlink ports to a compatible IE3500 base switch and has no uplink ports of its own, so traffic leaves the stack through the base switch. It suits factory automation, smart cities, energy and process control, transportation and mining deployments where port density needs to grow inside a hardened DIN rail installation.

The module provides 16 x 10/100/1000 RJ-45 copper ports, all non-PoE, with no SFP ports. Paired with an 11-port IE3500 base switch it brings the total system to 27 ports. Power draw is 11 W, measured at 12 V, supplied from the base switch, so the selected power supply must have capacity for the base switch, the module and any PoE loads on the base switch. It operates from -40°C to +70°C in a vented enclosure and up to +75°C with a fan-equipped enclosure, and carries Class I Div 2 and Zone 2 hazardous location approvals when installed in a cabinet enclosure.

The module installs on IE3500 Rugged Series base switches, including the IE-3500-8T3S, 8P3S, 8T3X and 8U3X and the IE-3505-8T3S and 8P3S. It has no separate licence, as the feature set is set by the Network Essentials or Network Advantage licence on the base switch.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 16 Gigabit copper downlink ports to an IE3500 Rugged base switch
- Rugged DIN rail design for hardened industrial deployments
- Certified for hazardous locations, Class I Div 2 and Zone 2, with a cabinet enclosure
- Wide operating temperature range from -40°C to +75°C with a fan-equipped enclosure
- Base switch is managed through Catalyst Center, Meraki dashboard, WebUI or CLI
- Base switch supports Layer 3, SD-Access Fabric Edge and BGP-EVPN

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 16 x 10/100/1000 RJ-45 copper
- PoE/PoE+ ports: none (non-PoE)
- SFP ports: none
- Uplinks: none, uplinks are provided by the base switch
- Total system ports with base switch: 27
- Power consumption: 11 W (measured at 12 V)
- Mounting: DIN rail
- Dimensions (H x W x D): 3.26 x 6.00 x 5.29 in (8.28 x 15.24 x 13.44 cm)
- Weight: 2.45 lb (1.11 kg)
- MTBF: 1,649,967 hours
- Operating temperature: -40°C to +70°C (40 LFM vented enclosure)
- Operating temperature, sealed enclosure: -40°C to +60°C
- Operating temperature, fan or blower enclosure: -40°C to +75°C (min. 200 LFM)
- Storage temperature: -40°C to +85°C
- Relative humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- Operating altitude: up to 15,000 ft with no derating
- Hazardous locations: Class I Div 2 groups A-D, Class I Zone 2, IECEx and ATEX Zone 2 (cabinet enclosure required)

FAQs

Q: Does the IEM-3500-16T need its own licence?
A: No. The module has no separate licence. The feature set is determined by the Network Essentials or Network Advantage licence on the IE3500 base switch.

Q: Does this module provide PoE?
A: No. All 16 ports are non-PoE Gigabit copper. The module draws 11 W from the base switch, and the power supply must be sized for the base switch, this module and any PoE loads.

Q: Which base switches does it work with?
A: It installs on IE3500 Rugged Series base switches: the IE-3500-8T3S, 8P3S, 8T3X and 8U3X, and the IE-3505-8T3S and 8P3S.

Q: Does it have uplink ports?
A: No. The module has 16 copper downlink ports only. Uplinks are provided by the base switch, which has three uplink ports.

Q: How many ports does the complete system have?
A: With an 11-port IE3500 base switch and this 16-port module, the total system has 27 ports.
