Cisco

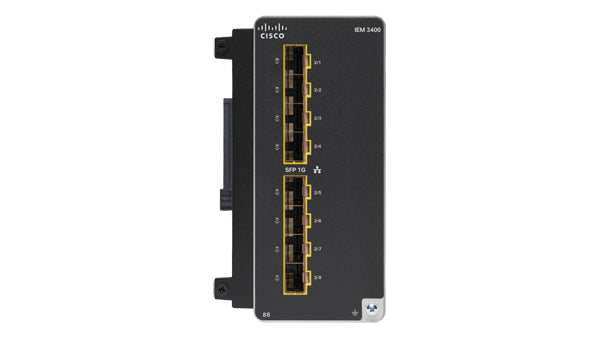

Cisco IEM-3400-8S | Catalyst IE3400 Rugged 8-Port Gigabit SFP Expansion Module, Rugged

IEM-3400-8S

3 in stock

$4,658.50 AUD
$4,658.50 AUD
$4,658.50 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IEM-3400-8S is a rugged expansion module designed for the Catalyst IE3400 series, adding eight Gigabit Ethernet SFP fiber ports to extend network connectivity in harsh industrial environments. Purpose-built for manufacturing, energy, transportation, and smart city deployments, this DIN rail-mountable module supports advanced Layer 2/3 features, security protocols, and hot-swappable installation to minimize downtime. Ideal for expanding fiber connectivity in automation, utility, and outdoor applications where reliability and resilience are critical.

Features

8 x Gigabit Ethernet SFP fiber ports for high-speed fiber connectivity
- Rugged industrial design with DIN rail mounting for harsh environments
- Hot-swappable installation for minimal downtime during maintenance
- Inherits advanced Layer 2 and Layer 3 switching features from IE3400 base switch
- Support for VLANs, routing protocols, ACLs, QoS, and network segmentation
- Security features including MACsec encryption, Trustworthy Systems, and SGT/SGACL support
- Redundancy protocols for industrial resilience and uptime
- Compatible with Cisco DNA Center and Industrial Network Director for centralized management
- Supports Full Flexible NetFlow (FNF) for traffic visibility and threat analysis
- Certified for hazardous locations (C1D2, ATEX) and smart grid applications (IEEE 1613, EN/IEC 61850-3)
- Low power consumption at 27W
- Extended MTBF rating of over 5.5 million hours for long-term reliability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Product Type: Expansion Module for Catalyst IE3400 Rugged Series
- Ports: 8 x 100/1000 Gigabit Ethernet SFP (1000Base-X) fiber ports
- Total System Ports: Up to 18 ports (when combined with base switch)
- Power Consumption: 27W
- Form Factor: DIN rail mountable
- Dimensions (H x W x D): 6 in. x 3.6 in. x 5.3 in. (15.2 cm x 9.1 cm x 13.5 cm)
- Weight: 3.6 lbs (1.6 kg)
- MTBF: 5,572,640 hours
- Operating System: Inherits Cisco IOS XE capabilities from IE3400 base switch
- Management: Cisco DNA Center, Industrial Network Director, WebUI, CLI, SNMP
- Certifications: IEC 62443-4-1, IEC 62443-4-2, C1D2, ATEX, IEEE 1613, EN/IEC 61850-3, EN50121-4
- Compliance: FCC Part 15 Class A, EN 55032/CISPR 32 Class A, VCCI Class A, EN 55024

FAQs

Q: What Cisco switches is the IEM-3400-8S compatible with?
A: The IEM-3400-8S is designed exclusively for the Cisco Catalyst IE3400 Rugged Series switches. It seamlessly integrates with the modular IE3400 platform to expand fiber connectivity up to 26 total Gigabit Ethernet ports depending on the base switch model.

Q: Can this module be hot-swapped without shutting down the switch?
A: Yes, the IEM-3400-8S is hot-swappable, allowing you to install or replace the module without powering down the IE3400 base switch, minimizing network downtime during maintenance or upgrades.

Q: What SFP transceivers are supported by this module?
A: The module supports 100/1000 Gigabit Ethernet SFP transceivers (1000Base-X). Refer to the Cisco Catalyst IE3400 datasheet for the complete list of qualified industrial-grade and standard SFPs. For harsh environments, Cisco recommends using industrial-rated SFP modules to ensure temperature and environmental compliance.

Q: Is a license required to operate this expansion module?
A: No additional license is required for the IEM-3400-8S module itself. However, advanced features and capabilities depend on the software license tier installed on the IE3400 base switch, such as Network Essentials or Network Advantage.

Q: What environments is this module designed for?
A: The IEM-3400-8S is built for harsh industrial environments, including manufacturing plants, energy and utility substations, transportation systems, mining operations, oil and gas facilities, and outdoor extended enterprise deployments such as warehouses and smart city infrastructure.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
