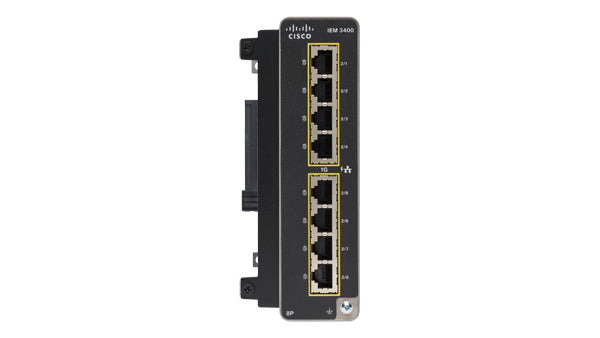

• Cisco IEM-3400-8P 8-port Gigabit Ethernet PoE switch
1 1

Cisco

Cisco IEM-3400-8P | Catalyst IE3400 8-Port PoE+ Expansion Module, GE

IEM-3400-8P

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IEM-3400-8P is a rugged DIN-rail expansion module for the Cisco Catalyst IE3400 Rugged Series. It adds 8 Gigabit Ethernet copper PoE/PoE+ ports to an IE3400 PoE base switch, suiting industrial and extended-enterprise sites such as manufacturing, energy, transportation, mining, smart cities and warehouses, where it can power IP cameras, phones, wireless access points and sensors.

The module provides 8 x 10/100/1000 RJ45 PoE/PoE+ ports in a single-wide form factor, taking the total system to 18 ports. Paired with an IE3400 PoE base switch, the combined PoE budget reaches 480W, and a system can support up to 24 PoE/PoE+ ports. The module itself draws 20W excluding PoE power. It is rated for operation from -40°C to +75°C in a fan or blower-equipped enclosure and carries an IP30 rating.

It is supported only with IE3400 PoE base switches, IE-3400-8P2S-E and IE-3400-8P2S-A, and is not intended for the non-PoE IE-3400-8T2S models. No separate licence is needed for the module, as software features are set by the base switch.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 8 PoE/PoE+ ports to IE3400 PoE base switches, up to 24 PoE/PoE+ ports per system
- Supports IEEE 802.3af PoE and 802.3at PoE+ for IP cameras, phones, wireless access points and sensors
- Rugged, fanless, convection-cooled design for harsh industrial environments
- Supports SGT/SGACL security when used with the IE3400 base switch
- Complies with industrial standards including IEEE 1613, IEC 61850-3, EN 61000-6-2/-4, NEMA TS 2, EN 50121-4 and DNV marine
- Mounts alongside the base switch on a DIN rail

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Module ports: 8 x 10/100/1000 RJ45 PoE/PoE+
- SFP ports: None
- Total system ports with base switch: 18
- Total system PoE budget: 480W with an IE3400 PoE base switch
- Module power consumption: 20W, excluding PoE power
- Mounting: DIN rail
- Module width: Single wide
- Dimensions (H x W x D): 15.2 x 6.6 x 13.5 cm
- Weight: 0.9 kg
- Operating temperature: -40°C to +75°C with a fan or blower-equipped enclosure (minimum 200 LFM)
- Operating temperature, sealed enclosure: -40°C to +60°C
- Storage temperature: -40°C to +85°C
- Relative humidity: 5% to 95% non-condensing
- Operating altitude: up to 15,000 feet
- Ingress protection: IP30
- Rated MTBF (Telcordia Issue 3): 1,802,010 hours
- Hazardous locations: UL/CSA Class I Div 2 and Class I Zone 2

FAQs

Q: Which base switches does this expansion module work with?
A: It is supported only with IE3400 PoE base switches, IE-3400-8P2S-E and IE-3400-8P2S-A. It is not intended for the non-PoE IE-3400-8T2S base models.

Q: Does the module need its own licence?
A: No separate licence is required for the module. Software features are determined by the IE3400 base switch, which runs Network Essentials or Network Advantage.

Q: What is the total PoE budget when the module is fitted?
A: The combined system PoE budget is 480W when paired with an IE3400 PoE base switch, compared with 240W for the base switch alone.

Q: How is the module powered?
A: It takes its power from the IE3400 PoE base switch and draws 20W excluding PoE power. The base switch needs a 9.6-60VDC supply, with 48VDC for PoE and 54VDC for PoE+, sized to cover the total switch and PoE load.

Q: How is it mounted?
A: It mounts on a DIN rail alongside the base switch. A 19-inch rack kit, STK-RACK-DINRAIL=, is available for rack installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
