• Cisco IEM-3300-8S 8-port 1G SFP switch with sleek black design
1 1

Cisco

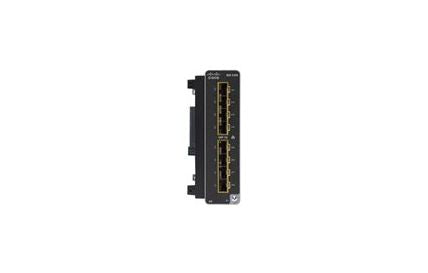

Cisco IEM-3300-8S | Catalyst IE3300 Rugged 8-Port Gigabit SFP Expansion Module, Industrial

IEM-3300-8S

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IEM-3300-8S is a rugged expansion module that adds eight Gigabit SFP fiber ports to Catalyst IE3300 Series industrial switches. Designed for harsh environments in manufacturing, energy, transportation, and utilities, this module enables long-distance, interference-resistant fiber connectivity for extended enterprise and industrial automation deployments. The plug-and-play design supports flexible network expansion without requiring system replacement.

Features

8x Gigabit SFP fiber ports (100/1000 Mbps) for flexible uplink expansion
- Plug-and-play modular design compatible with Catalyst IE3300 and IE3400 Rugged Series switches
- Industrial-grade rugged construction rated for -40°C to +70°C operation
- IP30-rated housing with excellent surge and vibration resistance
- DIN rail mounting for easy installation in industrial enclosures
- Low power consumption at 13W for energy-efficient operation
- Supports VLAN tagging, SNMP monitoring, and jumbo frames through host switch
- Compatible with Cisco-approved SFP transceivers for multimode and single-mode fiber
- Fiber ring network architecture support for redundancy
- High MTBF rating of over 6.8 million hours for mission-critical reliability
- Hot-swappable SFP modules for field replacement without system downtime
- Fully integrated with Cisco IOS and IOS XE for unified management
- Certified to UL 508, IEC 60950-1, and CSA industrial standards
- Supports Quality of Service (QoS) and advanced security features via host switch

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Product Type: Expansion Module for Cisco Catalyst IE3300 Rugged Series Switches
- Total Ports: 8x Gigabit SFP (100/1000 Mbps)
- PoE Support: None
- Power Consumption: 13W (measured at 12V)
- Dimensions (H x W x D): 6 in. x 2.6 in. x 5.3 in. (15.2 cm x 6.6 cm x 13.5 cm)
- Weight: 2.0 lbs (0.91 kg)
- Operating Temperature: -40°C to +70°C (40 LFM vented enclosure), -40°C to +60°C (sealed enclosure)
- Mounting: DIN Rail
- MTBF: 6,810,960 hours (Telcordia Issue 3)
- Management: Managed through host IE3300 switch via Cisco IOS or IOS XE
- Compliance: UL 508, IEC 60950-1, CSA certified for industrial electronics

FAQs

Q: Which Cisco switches are compatible with the IEM-3300-8S module?
A: The IEM-3300-8S is designed for Cisco Catalyst IE3300 Rugged Series industrial switches and is also compatible with IE3400 Rugged Series switches. It provides plug-and-play installation without requiring specialized tools or configuration.

Q: What is the maximum fiber distance supported by the IEM-3300-8S?
A: The maximum distance depends on the SFP transceiver used. With multimode fiber SFPs, typical distances are around 550 meters, while single-mode fiber SFPs support distances up to 80 km or more, making it ideal for long-reach industrial deployments.

Q: Does the IEM-3300-8S support Power over Ethernet (PoE)?
A: No, the IEM-3300-8S is a fiber SFP expansion module and does not support PoE. It consumes 13W of power from the host switch and is designed solely for fiber uplink expansion.

Q: Can the IEM-3300-8S be used in harsh industrial environments?
A: Yes, the IEM-3300-8S is ruggedized for industrial use with an operating temperature range of -40°C to +70°C. It is built to withstand harsh conditions in manufacturing, utilities, transportation, mining, and oil and gas environments, with UL 508 and IEC 60950-1 certifications.

Q: What warranty coverage is included with the IEM-3300-8S?
A: The IEM-3300-8S includes Cisco's standard five-year limited hardware warranty on all IE3300 product IDs and Industrial Ethernet power supplies, ensuring long-term reliability and support for mission-critical industrial applications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
