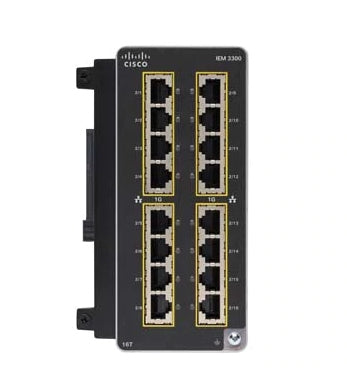

• Cisco IEM-3300-16T black switch with gold ports and white text
1 1

Cisco

Cisco IEM-3300-16T | Catalyst IE3300 16-Port Gigabit Expansion Module, DIN Rail

IEM-3300-16T

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IEM-3300-16T is a rugged expansion module that adds 16 Gigabit Ethernet copper ports to Catalyst IE3300 Series switches, enabling scalable industrial network deployments. Designed for harsh environments in manufacturing, energy, transportation, and smart cities, this hot-swappable module delivers reliable connectivity with DIN rail mounting for flexible installation. It extends the base IE3300 switch to up to 26 total ports, supporting high-speed data transmission for industrial IoT devices, sensors, and automation equipment.

Features

16 Gigabit Ethernet copper ports for industrial connectivity
- Modular design enables network expansion from 10 to 26 total ports
- Operates on Cisco IOS XE with built-in security features
- Hot-swappable for minimal network disruption during installation or replacement
- Rugged construction for harsh environments (-40°C to +70°C operating range)
- DIN rail mounting for easy integration in industrial cabinets
- Line-rate forwarding for all ports and all packet sizes
- Low power consumption (13W) for energy-efficient operation
- Supports Layer 2 and Layer 3 features when paired with IE3300 base switches
- Integrated with Cisco DNA Center and Cisco Industrial Network Director for centralized management
- Compliant with industrial networking standards for reliability and safety

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

16 x 10/100/1000BASE-T Gigabit Ethernet copper ports (RJ45)
- Total system ports: 26 (when installed with IE3300 base switch)
- PoE support: None (non-PoE model)
- Power consumption: 13W at 12V DC
- Dimensions: 6 in. (H) x 3.4 in. (W) x 5.3 in. (D) / 15.2 cm x 8.6 cm x 13.5 cm
- Weight: 2.06 lbs (0.93 kg)
- Mounting: DIN rail
- Operating temperature: -40°C to +70°C (vented enclosure), -40°C to +60°C (sealed enclosure)
- Hot-swappable design for seamless network expansion
- Compatible exclusively with Cisco Catalyst IE3300 Rugged Series switches

FAQs

Q: Which Cisco switches is the IEM-3300-16T compatible with?
A: The IEM-3300-16T is designed exclusively for the Cisco Catalyst IE3300 Rugged Series switches. It expands the base switch to a total of 26 Gigabit Ethernet ports when installed.

Q: Does this module support Power over Ethernet?
A: No, the IEM-3300-16T does not support PoE or PoE+. For PoE capability, consider the IEM-3300-16P expansion module, which provides PoE+ on all 16 ports.

Q: What environments is the IEM-3300-16T suitable for?
A: This module is purpose-built for harsh industrial environments including manufacturing plants, energy facilities, transportation systems, mining operations, and outdoor deployments. It operates reliably in temperatures from -40°C to +70°C in vented enclosures.

Q: Is the module hot-swappable?
A: Yes, the IEM-3300-16T supports hot-swappable installation, allowing you to add or remove the module without powering down the base IE3300 switch, minimizing network downtime.

Q: What mounting options are available for this module?
A: The IEM-3300-16T features DIN rail mounting, which is standard for industrial networking equipment. This provides flexible installation in industrial control cabinets and enclosures alongside other automation equipment.
