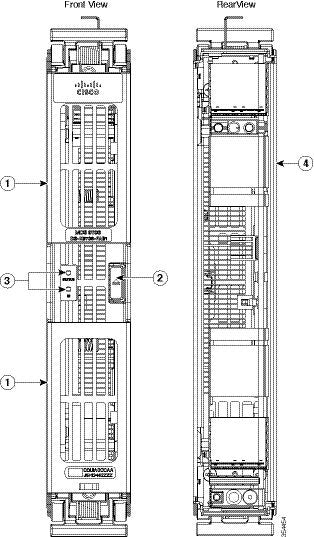

• Cisco DS-X9710-FAB3H fabric-3 module in MDS 9710 chassis rack
1 1

Cisco

Cisco DS-X9710-FAB3H | Fabric-3 crossbar module | Director-class Fibre Channel backplane | Hot-swappable, redundant fabric | For MDS 9710 OEM chassis variant

DS-X9710-FAB3H

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Fabric-3 crossbar module for OEM-labeled MDS 9710 director platforms, delivering the non-blocking internal backplane fabric between line cards. Equivalent functionality to the standard variant with support for redundant fabrics and in-service maintenance.

Features

- OEM-labeled Fabric-3 module for MDS 9710 directors
- Ensures non-blocking internal switching across the backplane
- Supports live insertion and removal for service continuity
- Built for multi-fabric redundancy and high availability
- Enables full chassis bandwidth with complete fabric population

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Crossbar Fabric Module (Fabric-3), OEM-labeled
- Chassis compatibility: MDS 9710 OEM configurations
- Function: Provides non-blocking, high-throughput crossbar interconnect
- Hot-swap: Yes, with redundant fabrics present
- Redundancy: Multi-fabric architecture; populate all slots for maximum bandwidth
- Software support: Requires compatible MDS NX-OS releases (verify per OEM/Cisco matrix)
- Consistency: Use matching Fabric-3 modules across all fabric slots
- Mounting: Dedicated fabric module slots inside the director chassis

FAQs

Q: Will this OEM-labeled module work in a non-OEM MDS 9710?
A: Functionality is equivalent, but acceptance and support can depend on chassis labeling and support contracts. Confirm compatibility with your platform documentation.

Q: Do I need to schedule downtime to replace it?
A: Not necessarily. The module is hot-swappable when other fabric modules maintain redundancy. Follow change control and vendor procedures.

Q: Is mixing OEM and non-OEM modules supported?
A: Use a consistent set of modules per vendor guidance. Mixing is not recommended for production.

Q: Does this module determine FC port speeds?
A: It underpins internal fabric bandwidth. External FC speeds are governed by installed line cards and supported NX-OS versions.
