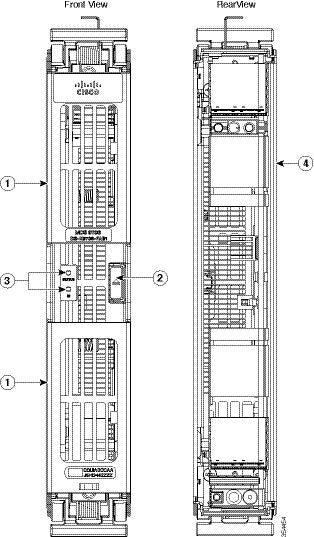

• Cisco DS-X9706-FAB3H fabric-3 module in MDS 9706 chassis rack
1 1

Cisco

Cisco DS-X9706-FAB3H | Fabric-3 crossbar module | Director-class Fibre Channel backplane | Hot-swappable, redundant fabric | For MDS 9706 OEM chassis variant

DS-X9706-FAB3H

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Fabric-3 crossbar module for OEM-labeled MDS 9706 director systems, providing the internal non-blocking switching fabric between line cards. Functionally equivalent to the standard variant for MDS 9706 platforms sold via OEM channels, supporting redundant fabrics and in-service replacement.

Features

- OEM-labeled Fabric-3 module for MDS 9706 directors
- Provides non-blocking crossbar connectivity across the chassis
- Supports live replacement for minimized downtime
- Designed for multi-fabric redundancy and high availability
- Ensures full backplane bandwidth when all fabric slots are populated

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Crossbar Fabric Module (Fabric-3), OEM-labeled variant
- Chassis compatibility: MDS 9706 OEM configurations
- Function: High-throughput, non-blocking crossbar interconnect for director backplane
- Serviceability: Hot-swappable in redundant fabric deployments
- Redundancy: Multi-fabric architecture; populate all slots for full performance
- Software: Requires compatible NX-OS releases as per OEM/Cisco documentation
- Mixing policy: Use identical Fabric-3 modules across all installed fabric slots
- Placement: Dedicated fabric module slots

FAQs

Q: Is this module interchangeable with the non-OEM Fabric-3 for MDS 9706?
A: Functionally equivalent for OEM-labeled MDS 9706 systems; confirm part number acceptance and support policy for your specific chassis and vendor support contract.

Q: Do I need to power down the chassis to install it?
A: No. It supports hot insertion/removal when other fabric modules maintain redundancy. Follow documented maintenance procedures.

Q: Are all fabric slots required to be populated?
A: For maximum bandwidth and N+1 resiliency, populate all fabric slots. Partial population reduces available crossbar bandwidth.

Q: Can I mix different fabric generations or OEM labels?
A: Avoid mixing in production. Use matching Fabric-3 modules with consistent labeling per vendor guidance.
