Cisco CW-ACC-GPS1 | USB GNSS Receiver for Access Points, No Antenna
SKU:CW-ACC-GPS1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The CW-ACC-GPS1 is a plug-in USB GNSS receiver for compatible Meraki and Cisco Catalyst access points that have a built-in USB port. It supplies the access point's latitude, longitude and altitude, which is used for AP Auto Locate on the floor plan and for Automatic Frequency Coordination (AFC) when running 6 GHz Standard Power.
The module contains a GNSS SoC and a barometric pressure sensor, and supports GPS, GLONASS, Galileo, BeiDou, NavIC, QZSS and SBAS. It is bus-powered from the access point's USB port. A status LED blinks green while searching and turns solid green once a GPS lock is obtained. This SKU is the USB GNSS module only, with no external antenna. An MMCX GNSS port on the module accepts the optional CW-ANT-GPS1-M-00 external antenna, which allows reception of up to 32 satellites and suits access points mounted away from windows.
It works with Meraki MR57 and Cisco Catalyst CW9162, CW9164 and CW9166 access points, and is listed as the optional GPS module for the Meraki CW9172I. Access points with built-in GPS, such as the CW9163, do not need it.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Plug-and-play USB GNSS receiver for compatible access points
- Enables automatic AP placement on the floor plan from GNSS measurements (AP Auto Locate)
- Supports AFC enablement for 6 GHz Standard Power operation

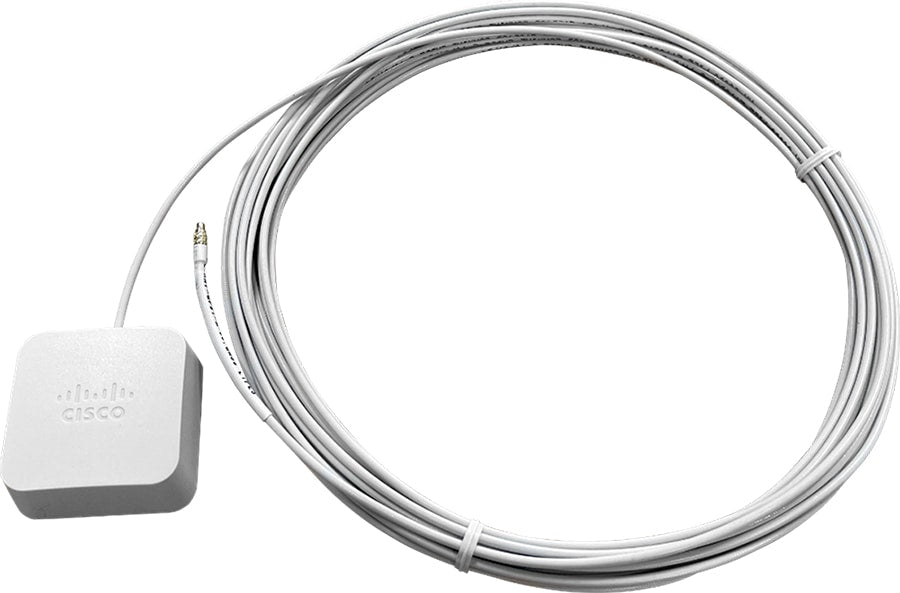

- Optional MMCX external antenna (CW-ANT-GPS1-M-00) with a 10 m cable for access points far from windows
- Managed from the Meraki dashboard port profile or the AP join profile on a Catalyst 9800 controller
- Status LED shows search and lock state at a glance
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: CW-ACC-GPS1
- Description: Cisco USB GNSS dongle
- Host interface: USB
- Device supported: Access point
- GNSS systems: GPS, GLONASS, Galileo, BeiDou (BDS), NavIC, QZSS, SBAS
- Onboard sensors: GNSS SoC and barometric pressure sensor
- Data provided: AP location (latitude, longitude, altitude)
- External antenna connector: MMCX (GNSS port on left side of module)
- Supported external antenna: CW-ANT-GPS1-M-00
- Satellite acquisition: up to 32 satellites with the external antenna
- Minimum satellites for stable lock: at least 4 (6 to 8 recommended for better accuracy)
- LED behaviour: blinks green while acquiring signal, solid green once GPS lock is obtained
- Power: USB bus-powered from the access point
FAQs
Q: Which access points does the CW-ACC-GPS1 work with?
A: It works with access points that have a built-in USB port: Meraki MR57 and Cisco Catalyst CW9162, CW9164 and CW9166, and it is listed as the optional GPS module for the Meraki CW9172I. AFC is available from MR30.7.
Q: Does it need its own licence?
A: No. The module has no licence of its own. The host access point needs its normal licence, either the Meraki Dashboard licence or management through a Catalyst 9800 controller.
Q: How is the module powered?
A: It is bus-powered from the access point's USB port. The access point must be powered on with its USB port enabled in the AP join profile or the Meraki dashboard port profile.
Q: Does this SKU include an external antenna?
A: No. This is the USB GNSS module only. The optional CW-ANT-GPS1-M-00 external antenna connects to the MMCX port on the module and is ordered separately.
Q: Is it needed for 6 GHz Standard Power?
A: Yes, where the access point has no built-in GPS. It is the only external GPS module supported for enabling AFC for 6 GHz Standard Power operation.
