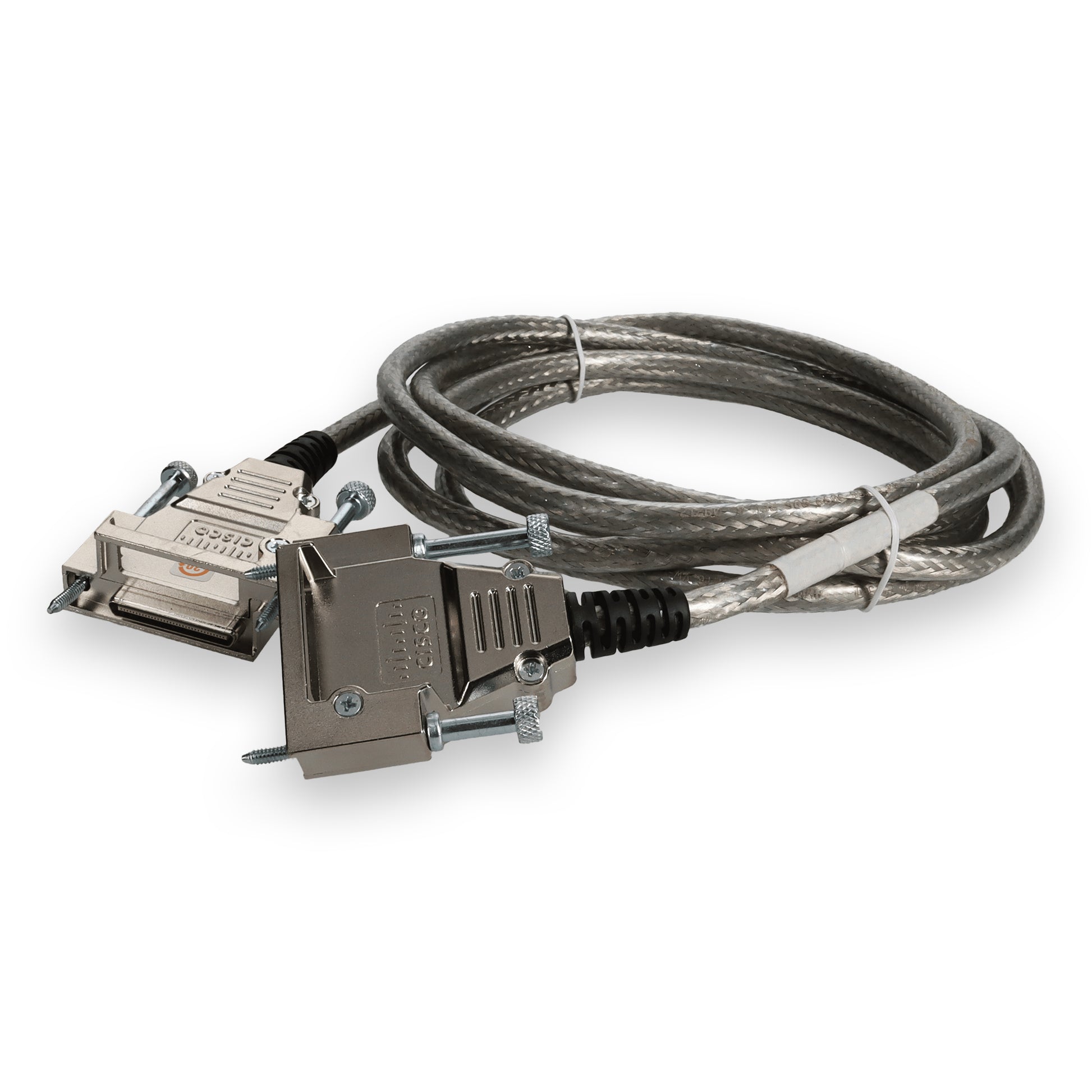

• Cisco CAB-STACK-3M 3m StackWise silver metal DB9 cable with black connectors
1 1

Cisco

Cisco CAB-STACK-3M | Catalyst 3750 StackWise Stacking Cable, 3 m

CAB-STACK-3M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco StackWise stacking cable joins Cisco Catalyst 3750 Series switches into a single stack through the dedicated StackWise ports on the rear panel. At 3 m (9.8 ft) it is the longest of the three StackWise cable lengths Cisco approves, which are 50 cm, 1 m and 3 m.

The extra length suits stacks where switches sit further apart in a rack or are spread across rack positions, where the shorter 50 cm and 1 m cables will not reach. On the Catalyst 3750 Series, StackWise provides a 32 Gbps stack interconnect and supports stacks of up to 9 switches. Stacking uses the dedicated StackWise ports, so no user ports are consumed.

Cabling every switch to both of its neighbours gives full bandwidth and redundant connections. This is a passive cable with no power draw and no licence requirement. It is designed for StackWise on the Catalyst 3750 Series and is not compatible with StackWise-480 or StackWise-160 cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Connects Catalyst 3750 Series switches into one stack that acts as a single switching unit
- Uses dedicated StackWise ports, so no user ports are consumed
- Cabling every switch to both neighbours gives full bandwidth and redundant connections
- A stack with incomplete cabling runs at half bandwidth with no redundancy
- 3 m length reaches switches spread across rack positions in larger stacks
- Passive design with no power requirement and no licence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Cable length: 3 m (9.8 ft)
- Type: Cisco StackWise stacking cable
- Connectors: StackWise port (proprietary), rear panel of the switch
- Used with: Cisco Catalyst 3750 Series switches
- Stack interconnect bandwidth (Catalyst 3750 Series): 32 Gbps
- Maximum stack size (Catalyst 3750 Series): up to 9 switches
- Stacking ports: dedicated StackWise ports on the rear panel, no user ports used
- Cable family: CAB-STACK-50CM (50 cm), CAB-STACK-1M (1 m), CAB-STACK-3M (3 m)
- Spare part order code: CAB-STACK-3M=
- Power: passive cable, no power or PoE function
- Licensing: none required

FAQs

Q: Does this cable need a licence or power?
A: No. It is a passive cable with no power requirement, no PoE function and no licensing.

Q: Which switches does it work with?
A: It is an approved StackWise cable for the Cisco Catalyst 3750 Series. It is not compatible with StackWise-480 cables such as STACK-T1-xx used on the Catalyst 3850, or with StackWise-160 cables.

Q: How does it differ from the other StackWise cable lengths?
A: The functionality is the same across the family. CAB-STACK-3M is the 3 m length, while CAB-STACK-50CM and CAB-STACK-1M are the shorter 50 cm and 1 m versions for switches mounted closer together.

Q: Does stacking use up switch ports?
A: No. Stacking uses the dedicated StackWise ports on the rear panel, so all user ports remain available.

Q: Should every switch in the stack be cabled to two neighbours?
A: Yes. Cabling each switch to both neighbours gives full stack bandwidth and redundant connections. A stack with incomplete cabling runs at half bandwidth with no redundancy.
