Cisco

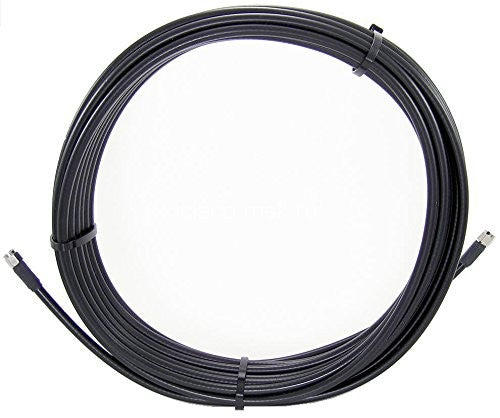

Cisco CAB-L400-10-R | LMR-400 Antenna Cable, 10 ft, RA RP-TNC to RP-TNC

SKU:CAB-L400-10-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco LMR-400 ultra low loss coaxial cable is a 10 ft (3 m) RF extension cable for connecting an industrial router or wireless access point to a remotely mounted antenna. It suits outdoor and industrial sites where the radio and antenna need to sit apart and signal loss must stay low.

The cable has a right-angle RP-TNC plug (male) at one end and a straight RP-TNC jack (female) at the other. The right-angle plug saves space and reduces strain at the device port. RF loss is 0.8 dB at 2.4 GHz and 1.4 dB at 5.8 GHz, and the construction is rated for outdoor direct burial. It is a passive cable and needs no power.

It is intended for RP-TNC antenna ports on Cisco industrial routers and industrial wireless access points, such as the Cisco 829 Industrial Router, and for RP-TNC antennas. Cisco lists it in its Industrial Routers and Industrial Wireless Access Points Antenna Guide.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ultra low loss LMR-400 coax for long RF runs between a radio and a remote antenna
- Right-angle RP-TNC plug saves space and reduces strain at the device port
- Outdoor direct-burial rated construction
- Low signal loss at both 2.4 GHz and 5.8 GHz
- Passive design with no power requirement
- Listed by Cisco as an optional accessory for the Cisco 829 Industrial Router

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Cable type: LMR-400 Ultra Low Loss coaxial
- Length: 10 ft (3 m)
- Connector 1: RP-TNC plug (male), right-angle
- Connector 2: RP-TNC jack (female), straight
- RF loss at 2.4 GHz: 0.8 dB
- RF loss at 5.8 GHz: 1.4 dB
- Environmental rating: outdoor, direct burial (DB)
- Power: passive cable, no power required
- Description: RPTNC (plug)-RA to RPTNC (jack)-STR, LMR-400, 10 foot RF cable

FAQs

Q: Does this cable need power?
A: No. It is a passive coaxial cable and requires no power.

Q: What connectors does it use?
A: One end is a right-angle RP-TNC plug (male) and the other is a straight RP-TNC jack (female).

Q: What is the signal loss over the cable?
A: RF loss is 0.8 dB at 2.4 GHz and 1.4 dB at 5.8 GHz over the 10 ft (3 m) length.

Q: What is it designed to connect?
A: It connects RP-TNC antenna ports on Cisco industrial routers and industrial wireless access points, such as the Cisco 829 Industrial Router, to RP-TNC antennas.

Q: Can it be used outdoors?
A: Yes. It is rated for outdoor direct burial.
