Cisco

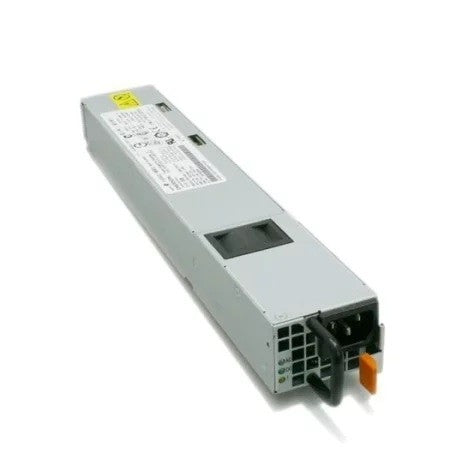

Cisco C9800-AC-1100W | Catalyst 9800-80 1100W AC Power Supply, Plug-Side

SKU:C9800-AC-1100W

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C9800-AC-1100W is a hot-swappable 1100W AC power entry module (PEM) for the Cisco Catalyst 9800-80 wireless controller. It uses plug-side intake airflow and suits enterprise campus and large-scale wireless controller deployments that need redundant AC power.

The module is rated at 1100W with an AC input range of 85-264 VAC, at 47-63 Hz. The 9800-80 chassis has two PEM slots, and with a PEM fitted in each the controller keeps running if one fails. Because the unit is hot-swappable, a PEM can be replaced without interrupting system power. The host chassis draws at most 600W with modules fitted.

This PEM is intended for the Catalyst 9800-80 (C9800-80-K9), which has PEM 0 and PEM 1 slots at the rear of the chassis. No licence is required for the power supply itself. A DC alternative for the same chassis is the C9800-DC-950W.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable PEM, replacement needs no power interruption
- Redundant power, the 9800-80 runs on a single PEM
- Plug-side intake airflow
- Rear-panel access in the chassis
- Main power switch sits next to the PEMs on the chassis rear

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Power rating: 1100W AC
- AC input range: 85-264 VAC
- Input frequency: 47-63 Hz
- Airflow: plug-side intake
- Hot-swap: yes, no power interruption on replacement
- Redundancy: controller runs on a single PEM
- Host chassis: Catalyst 9800-80 (C9800-80-K9), PEM 0 and PEM 1 slots
- Host chassis maximum power consumption with modules: 600W
- Host chassis heat dissipation: 2047 BTU/hr
- Chassis operating temperature: 0 to 40 C normal, 0 to 50 C short term

FAQs

Q: Which controller does this power supply fit?
A: It is the AC power entry module for the Catalyst 9800-80 wireless controller (C9800-80-K9), which has two PEM slots.

Q: Does it need a licence?
A: No. The power supply itself does not require a licence.

Q: Can I replace it while the controller is running?
A: Yes. The PEM is hot-swappable and can be replaced without interrupting system power. The controller also runs continuously on a single PEM.

Q: Is there a DC alternative?
A: Yes. The C9800-DC-950W is the DC PEM option for the Catalyst 9800-80.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
