Cisco

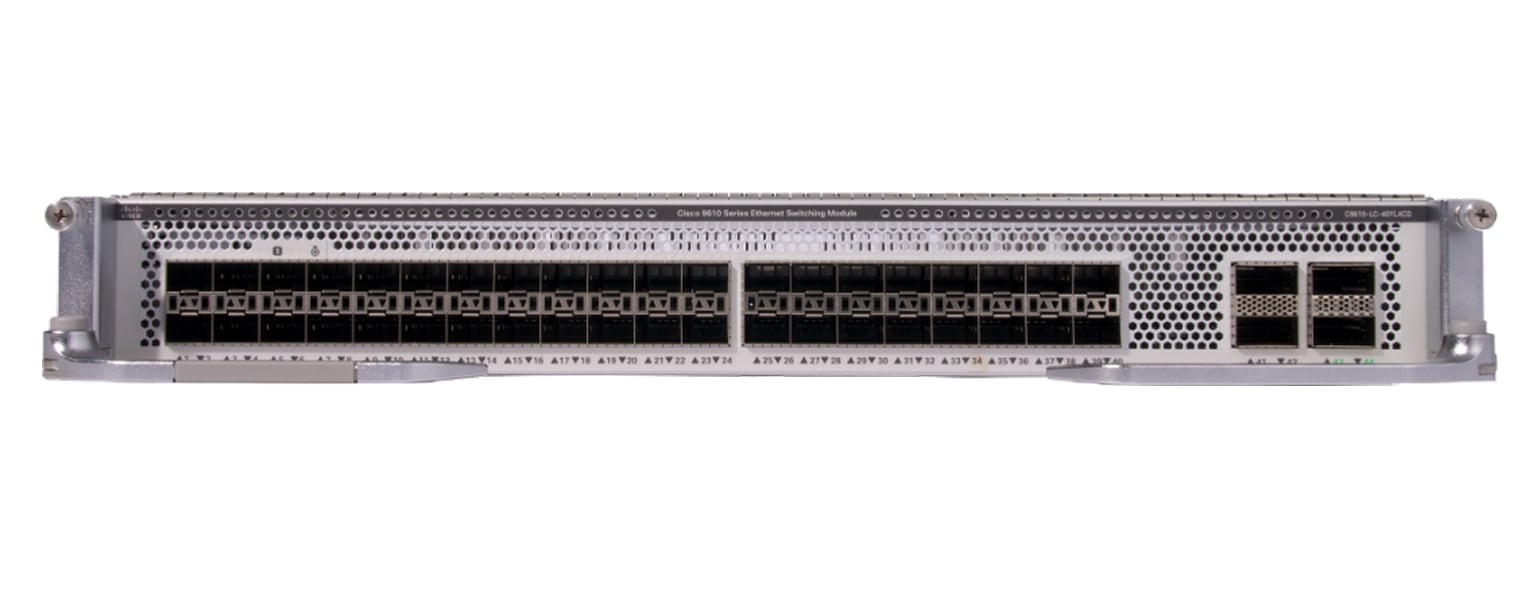

Cisco C9610-LC-40YL4CD | Catalyst 9610 40x SFP56 Line Card, 2x QSFP56, 2x 400G

SKU:C9610-LC-40YL4CD

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9610 C9610-LC-40YL4CD is a combo line card for the Catalyst C9610R chassis, built for medium to high port density campus core and distribution deployments. It is a C9610R-optimised version of the C9600-LC-40YL4CD, with SFP56 downlinks to access or downstream switches and QSFP56 and QSFP-DD uplinks to upstream service provider or data centre switches.

The card provides 40 multi-rate 50/25/10GE SFP56 ports, 2 x 200/100/40GE QSFP56 ports and 2 x 400GE QSFP-DD ports, so the uplinks are integrated without needing additional modules. Paired with a C9610-SUP-3 or C9610-SUP-3XL supervisor it delivers non-blocking operation at 3.2 Tbps full-duplex per slot. The 200GE rate on the QSFP56 ports depends on transceiver availability. It is licensed at the switch level through Cisco Networking Subscription, with no separate line-card licence.

The card requires a C9610R chassis with a C9610-SUP-3 or C9610-SUP-3XL supervisor running Cisco IOS XE 17.18.1 or later, and is powered from the chassis power supplies. It accepts SFP56, SFP28, SFP+, QSFP56, QSFP28, QSFP+ and QSFP-DD transceivers listed in the Cisco optics compatibility matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 40 multi-rate SFP56 downlink ports for connecting access or downstream switches
- Integrated 100/40GE QSFP56 and 400GE QSFP-DD uplinks without additional modules
- Non-blocking performance with C9610 Supervisor Engine 3 and 3XL
- Optimised for C9610R chassis airflow and layout
- Accepts a wide range of SFP56, SFP28, SFP+, QSFP56, QSFP28, QSFP+ and QSFP-DD transceivers
- Part of the C9610 platform with Cisco Silicon One ASICs, IOS XE programmability and Trust Anchor security
- Managed via Cisco Catalyst Center or Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: Line card for Catalyst C9610R chassis
- Downlink ports: 40 x 50/25/10GE SFP56
- Uplink ports (QSFP56): 2 x 200/100/40GE, 200GE subject to transceiver availability
- Uplink ports (QSFP-DD): 2 x 400GE
- Bandwidth per slot: 6.4 Tbps (3.2 Tbps full-duplex) with C9610-SUP-3 or C9610-SUP-3XL
- Supported supervisors: C9610-SUP-3, C9610-SUP-3XL
- Minimum software: Cisco IOS XE 17.18.1
- Host chassis: C9610R (10 slots; 8 line card slots, 2 supervisor slots)
- Chassis airflow: Front-to-back
- Chassis operating temperature: -5 to 45 C at sea level, -5 to 40 C up to 6000 ft
- Chassis storage temperature: -40 to 75 C
- Relative humidity: 10% to 95%, non-condensing
- Altitude: -60 to 3000 m
- Safety: Class 1 laser product, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
- RoHS: RoHS5

FAQs

Q: Does this line card need its own licence?
A: No separate line-card licence is required. Licensing is applied at the switch level through Cisco Networking Subscription, for example the Cisco Switching Advantage License for Core Modular, or a Cisco Enterprise Agreement.

Q: Which chassis and supervisors does it work with?
A: It is designed for the Catalyst C9610R chassis and requires a C9610-SUP-3 or C9610-SUP-3XL supervisor running Cisco IOS XE 17.18.1 or later.

Q: How is the card powered?
A: It draws power from the C9610R chassis power supplies: C9600-PWR-3KWAC, C9600-PWR-2KWAC or C9600-PWR-2KWDC, with 4 to 8 supported. Use the Cisco Power Calculator to size the chassis for your line card mix.

Q: What is the difference between this card and the C9600-LC-40YL4CD?
A: The C9610-LC-40YL4CD is the C9610R-optimised version of the C9600-LC-40YL4CD. Existing C9600-series line cards can also be used in the C9610R through the C9610-LC-ADPT adapter.

Q: What transceivers can I use in the uplink ports?
A: The 2 QSFP56 ports take QSFP56, QSFP28 and QSFP+ modules, and the 2 QSFP-DD ports take QSFP-DD modules. The 200GE rate on the QSFP56 ports depends on transceiver availability.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
