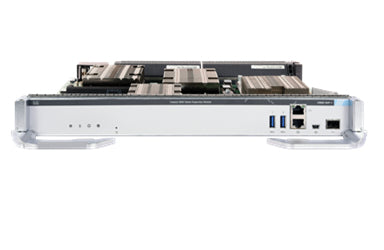

• Cisco C9600-SUP-1/2 supervisor module in silver server rack with USB ports
1 1

Cisco

Cisco C9600-SUP-1/2 | Catalyst 9600 Redundant Supervisor 1 Module, 9.6 Tbps, SSO

C9600-SUP-1/2

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9600-SUP-1/2 is a redundant Supervisor 1 module for the Catalyst 9600 Series modular chassis, delivering high-availability control plane with 1:1 active/standby redundancy and Stateful Switchover. Built on the UADP 3.0 ASIC, it provides up to 9.6 Tbps system switching capacity, 16GB DDR4 memory, and dual management ports for advanced core and distribution deployments. Ideal for enterprise campus networks requiring resilient, scalable, and secure Layer 2/3 operations.

Features

Cisco UADP 3.0 ASIC with programmable pipeline and template-based resource allocation
- 1:1 redundant supervisor support with Stateful Switchover (SSO) for high availability
- Hot-swappable design for zero-downtime maintenance
- In-Service Software Upgrade (ISSU) capability
- Comprehensive Layer 2 switching (VLAN, STP, PVLAN, VRRP)
- Advanced Layer 3 routing (OSPF, EIGRP, BGP, PIM, multicast)
- Hardware-based Flexible NetFlow (FNF) for telemetry and analytics
- IPv4/IPv6 dual-stack with wire-rate forwarding
- Template-based SDM ASIC flexibility for core, distribution, and aggregation roles
- MACsec (802.1AE) hardware encryption support
- Cisco TrustSec with Security Group Tags (SGT)
- Control Plane Policing (CoPP) and DoS protection
- Quality of Service (QoS) with programmable buffers and scheduling
- Encrypted Traffic Analytics (ETA) for threat detection
- Cisco IOS XE operating system with model-driven programmability
- NETCONF, RESTCONF, and YANG data model support for automation
- On-box Python scripting and container hosting (up to 960GB SSD)
- Plug and Play (PnP) for zero-touch provisioning
- SNMP, Telnet, SSH, and CLI management
- Dual management ports: 1G RJ-45 and 10G SFP+ for redundancy
- Multiple console options: RJ-45, Mini USB, and dual USB 3.0 ports
- RFID tag embedded for asset and inventory tracking

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Product: Cisco Catalyst 9600 Series Redundant Supervisor 1 Module
- SKU: C9600-SUP-1/2
- ASIC: 3x Cisco UADP 3.0 ASICs
- System Switching Capacity: Up to 9.6 Tbps (4.8 Tbps full-duplex)
- Per-Slot Switching Capacity: 2.4 Tbps (1.2 Tbps full-duplex)
- Forwarding Rate: Up to 3 Bpps (1 Bpps per ASIC)
- CPU: Intel x86 2.0 GHz, 8-core processor
- Memory: 16GB DDR4 DRAM
- Flash Storage: 16GB
- SSD Storage: Up to 960GB SATA SSD (for container-based applications)
- Management Ports: 1x 10/100/1000 RJ-45, 1x 10G SFP+ (1G/10G support)
- Console Ports: 1x RJ-45, 1x Mini USB 2.0 Type B
- USB Ports: 2x USB 3.0
- Redundancy: 1:1 active/standby with Stateful Switchover (SSO)
- Hot-Swappable: Yes
- VLAN Support: Up to 4094 VLAN IDs
- MAC Address Table: Up to 82,000 entries
- IPv4 Routes: Up to 212,000 (indirect + direct)
- IPv6 Routes: Up to 212,000
- Switched Virtual Interfaces (SVIs): Up to 1000
- Flexible NetFlow (FNF): Up to 294,000 flows (98,000 per ASIC)
- ARP Entries: Up to 90,000
- Multicast Routes: Up to 32,000
- QoS Buffer: Up to 108 MB (36 MB per ASIC)
- Jumbo Frame Support: Up to 9216 bytes
- Dimensions (H x W x D): 4.32 x 38.1 x 34.06 cm (to faceplate), 4.32 x 38.1 x 39.88 cm (to ejector)
- Compatible Chassis: Cisco Catalyst 9606R
- Operating System: Cisco IOS XE (minimum 16.11.1)
- Line Card Compatibility: C9600-LC-48YL, C9600-LC-24C, C9600-LC-48TX, C9600-LC-48S, C9600-LC-40YL4CD

FAQs

Q: What is the C9600-SUP-1/2 and how does it differ from C9600-SUP-1?
A: The C9600-SUP-1/2 is the redundant version of the Supervisor 1 module, shipped as a pair for 1:1 active/standby redundancy with Stateful Switchover (SSO). The C9600-SUP-1 is sold as a single supervisor module. Both modules use identical hardware based on the UADP 3.0 ASIC.

Q: Which chassis models support the C9600-SUP-1/2?
A: The C9600-SUP-1/2 is designed for the Cisco Catalyst 9606R modular chassis. It occupies dedicated supervisor slots 3 and 4 and cannot be mixed with C9600X-SUP-2 modules in the same chassis.

Q: What is the maximum switching capacity with the Supervisor 1 module?
A: The C9600-SUP-1 delivers up to 9.6 Tbps system switching capacity with 2.4 Tbps per line card slot. The Catalyst 9606R chassis supports up to 25.6 Tbps when equipped with the newer C9600X-SUP-2 module.

Q: Does the C9600-SUP-1/2 support In-Service Software Upgrade (ISSU)?
A: Yes, the redundant supervisor configuration supports ISSU, allowing software upgrades without service disruption. The module is also hot-swappable for easy maintenance and replacement.

Q: What advanced features does the UADP 3.0 ASIC enable?
A: The UADP 3.0 ASIC provides programmable pipeline architecture, flexible SDM templates for Layer 2/3 forwarding, ACL and QoS allocation, hardware-based MACsec encryption, Flexible NetFlow, IPv4/IPv6 dual-stack support, and advanced security features like TrustSec and Encrypted Traffic Analytics (ETA).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
