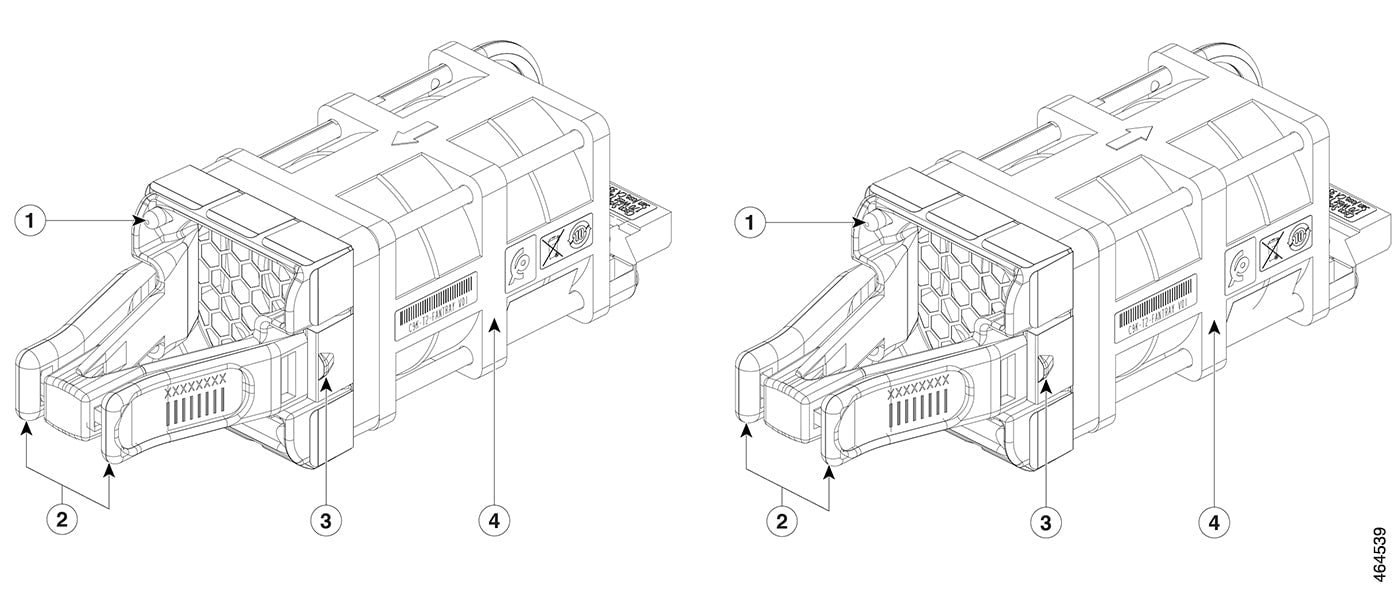

• Cisco C9500X-FAN-1U-F 1U fan module with port-side exhaust
1 1

Cisco

Cisco C9500X-FAN-1U-R | 1U Front-to-Back Cooling Fan Module, Hot-Swappable

C9500X-FAN-1U-R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9500X-FAN-1U-R is a hot-swappable, field-replaceable 1U fan module designed for Catalyst 9500X Series switches. Featuring front-to-back airflow with port-side intake and rear exhaust, this variable-speed fan supports Online Insertion and Removal (OIR) for seamless maintenance without disrupting network operations. Ideal for enterprise campus core and aggregation deployments requiring reliable, redundant cooling.

Features

Variable-speed operation with automatic adjustment based on internal temperature
- Hot-swappable design with Online Insertion and Removal (OIR) support for up to 120 seconds
- Front-to-back airflow (port-side intake, rear exhaust) for optimal cold-aisle/hot-aisle data center configurations
- Field-replaceable unit (FRU) with tool-less installation and removal
- Burgundy color coding for easy visual identification of airflow direction
- LED indicators for real-time status and health monitoring
- Maximum fan speed of 30,000 rpm for high-performance cooling
- Redundant design supporting switch operation with minimum five out of six fans operational
- Compatible with both AC and DC power supply configurations on Catalyst 9500X switches
- Lightweight modular design at 0.26 lbs (0.12 kg) per fan tray
- Wide operating temperature range from -5°C to +45°C at sea level
- Supports extended altitude operation up to 10,000 feet with appropriate temperature de-rating

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Airflow direction: Front-to-back (port-side intake, rear exhaust)
- Form factor: 1U modular fan unit
- Compatibility: Cisco Catalyst 9500X Series switches (C9500X-28C8D, C9500X-60L4D)
- Hot-swappable: Supports Online Insertion and Removal (OIR) for up to 120 seconds
- Maximum fan speed: Up to 30,000 rpm
- Variable-speed: Temperature-based automatic speed adjustment
- Weight: 0.26 lbs (0.12 kg) per fan tray
- Operating temperature: -5°C to +45°C (23°F to 113°F) at sea level when using C9500X-FAN-1U-R
- Visual indicator: Burgundy color for front-to-back airflow identification
- Configuration: Six individual fan modules required per switch; minimum five must be operational
- LED indicators: Status and health monitoring
- Replacement: Field-replaceable unit (FRU) with tool-less design
- MTBF: Data available in official Cisco Catalyst 9500 Series datasheet

FAQs

Q: How many fan modules are required for a Catalyst 9500X switch?
A: Catalyst 9500X switches ship with six field-replaceable fan modules. At a minimum, five fans must be operating normally. If fewer than five fans are operational, the switch will shut down automatically to prevent overheating.

Q: Can I mix front-to-back and back-to-front fan modules in the same switch?
A: No. All Catalyst 9500X fan modules must be the same type—either all front-to-back (C9500X-FAN-1U-R) or all back-to-front (C9500X-FAN-1U-F). Mixing airflow directions is not supported and will cause operational issues.

Q: What does hot-swappable mean for this fan module?
A: Hot-swappable means the C9500X-FAN-1U-R can be removed and replaced while the switch is powered on and operational, without interrupting network traffic. The fan supports Online Insertion and Removal (OIR) for up to 120 seconds, allowing seamless maintenance.

Q: How do I identify the airflow direction of the fan module?
A: Front-to-back airflow fans like the C9500X-FAN-1U-R are color-coded in burgundy. Back-to-front airflow fans are royal blue. This visual indicator helps quickly identify the correct fan type during installation or replacement.

Q: Is the C9500X-FAN-1U-R compatible with older Catalyst 9500 models?
A: No. The C9500X-FAN-1U-R is specifically designed for Catalyst 9500X Series switches (C9500X-28C8D and C9500X-60L4D). Earlier Catalyst 9500 models use different fan modules such as FAN-T4-R or C9K-T1-FANTRAY.
