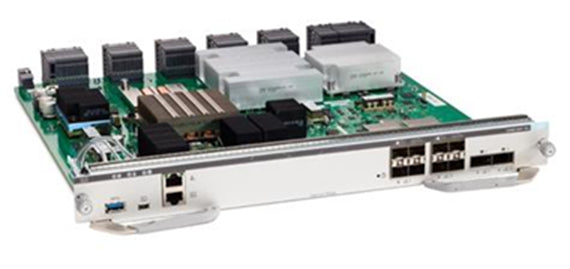

• Cisco C9400-SUP-1XL Supervisor Engine XL with ports and components
1 1

Cisco

Cisco C9400-SUP-1XL | Catalyst 9400 Supervisor Module, 8x 10G SFP+ or 2x 40G QSFP

C9400-SUP-1XL

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400-SUP-1XL is a next-generation supervisor engine module designed for enterprise core and aggregation deployments within the Catalyst 9400 modular switch chassis. It delivers up to 240 Gbps per slot in a 4-slot chassis, supporting flexible uplink configurations of either 8x 10G SFP+ or 2x 40G QSFP uplinks. Built on Cisco's programmable UADP 2.0 ASIC, it supports advanced routing, SD-Access, StackWise Virtual, and high availability with SSO/NSF for mission-critical campus networks.

Features

Advanced Layer 3 routing: Supports OSPF, BGP, EIGRP, MPLS, and VRF-lite for enterprise-class core and aggregation deployments
- SD-Access ready: Integrated support for Cisco Software-Defined Access with LISP, VXLAN, and TrustSec segmentation
- Cisco StackWise Virtual: Virtualizes two Catalyst 9400 chassis into a single logical switch for simplified management and increased resilience
- High Availability: SSO (Stateful Switchover), NSF (Nonstop Forwarding), and ISSU enable zero-downtime upgrades and failover
- Flexible NetFlow (FNF): Hardware-based flow visibility for traffic analysis, capacity planning, and security monitoring
- MACsec encryption: Line-rate 256-bit MACsec on all access ports (hardware MACsec not supported on supervisor uplinks)
- Cisco TrustSec: Policy-based segmentation with Security Group Tags (SGT) for zero-trust network access
- Programmable UADP 2.0 ASIC: Flexible SDM templates for optimized table allocation (routing, ACL, QoS, security)
- Container-based application hosting: On-box Python scripting and support for third-party containerized applications on optional SSD storage
- Open Cisco IOS XE: Model-driven programmability with YANG, NETCONF, RESTCONF, and gRPC for automation
- Uplink resiliency: Configurable uplink redundancy for EtherChannel and multi-chassis link aggregation
- IPv6 ready: Full wire-rate IPv6 forwarding and dual-stack support for modern networks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Product Type: Supervisor Engine Module for Catalyst 9400 Series
- Uplink Options: 8x 10 Gigabit Ethernet SFP+ OR 2x 40 Gigabit Ethernet QSFP+ (software-selectable)
- Bandwidth per Slot: 240 Gbps (C9404R), 120 Gbps (C9407R), 80 Gbps (C9410R)
- Processor: Intel 2.4 GHz x86 processor
- Memory: 16 GB RAM
- Flash Storage: 10 GB Flash
- Storage: Up to 960 GB SSD (optional)
- Management Interfaces: 1x RJ-45 console port, 1x RJ-45 1000BASE-T management port, 1x USB 3.0 Type-A, 1x mini-USB management port
- High Availability: Supports SSO (Stateful Switchover), NSF (Nonstop Forwarding), ISSU (In-Service Software Upgrade)
- Compatibility: Catalyst 9400 Series chassis (C9404R, C9407R, C9410R)
- Supported Line Cards: C9400-LC-48U, C9400-LC-48T, C9400-LC-48UX, C9400-LC-24XS, C9400-LC-48P, C9400-LC-24S, C9400-LC-48S, C9400-LC-48H, C9400-LC-48HN
- Operating System: Cisco IOS XE (minimum 16.6.2 for C9407R/C9410R, 16.9.1 for C9404R)
- Dimensions (H x W x D): 1.6 in x 14.9 in x 14.6 in (4.06 cm x 37.85 cm x 37.08 cm)
- Weight: Approximately 10 lb (4.5 kg)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Redundancy: Supports N+1 and N+N redundant supervisor configurations

FAQs

Q: What is the difference between C9400-SUP-1XL and C9400-SUP-1XL-Y?
A: The C9400-SUP-1XL offers 8x 10G SFP+ or 2x 40G QSFP+ uplinks, while the C9400-SUP-1XL-Y adds support for 2x 25G uplinks and enables 90W UPOE+ capabilities when paired with compatible line cards. The -Y variant does not support hardware MACsec on supervisor ports.

Q: Can I mix different supervisor engines in a redundant configuration?
A: For optimal compatibility and feature parity, it is recommended to use matching supervisor engines in a redundant configuration. Mixing different supervisor models may limit certain features or performance capabilities.

Q: What licensing is required for the C9400-SUP-1XL?
A: The C9400-SUP-1XL requires a Cisco DNA license (Essentials, Advantage, or Premier tier) purchased separately to enable full software-defined access, automation, and security features. The hardware does not include a license.

Q: Does the C9400-SUP-1XL support StackWise Virtual?
A: Yes, the C9400-SUP-1XL supports Cisco StackWise Virtual technology, enabling two Catalyst 9400 chassis to operate as a single logical switch with combined management, control plane, and data plane for simplified operations and increased port density.

Q: What line cards are compatible with the C9400-SUP-1XL?
A: The C9400-SUP-1XL supports all Catalyst 9400 Series line cards including 48-port PoE+/UPOE, multigigabit, 10G SFP+, 25G SFP28, and 40G/100G QSFP modules. Compatibility is dependent on chassis model and IOS XE software version.
