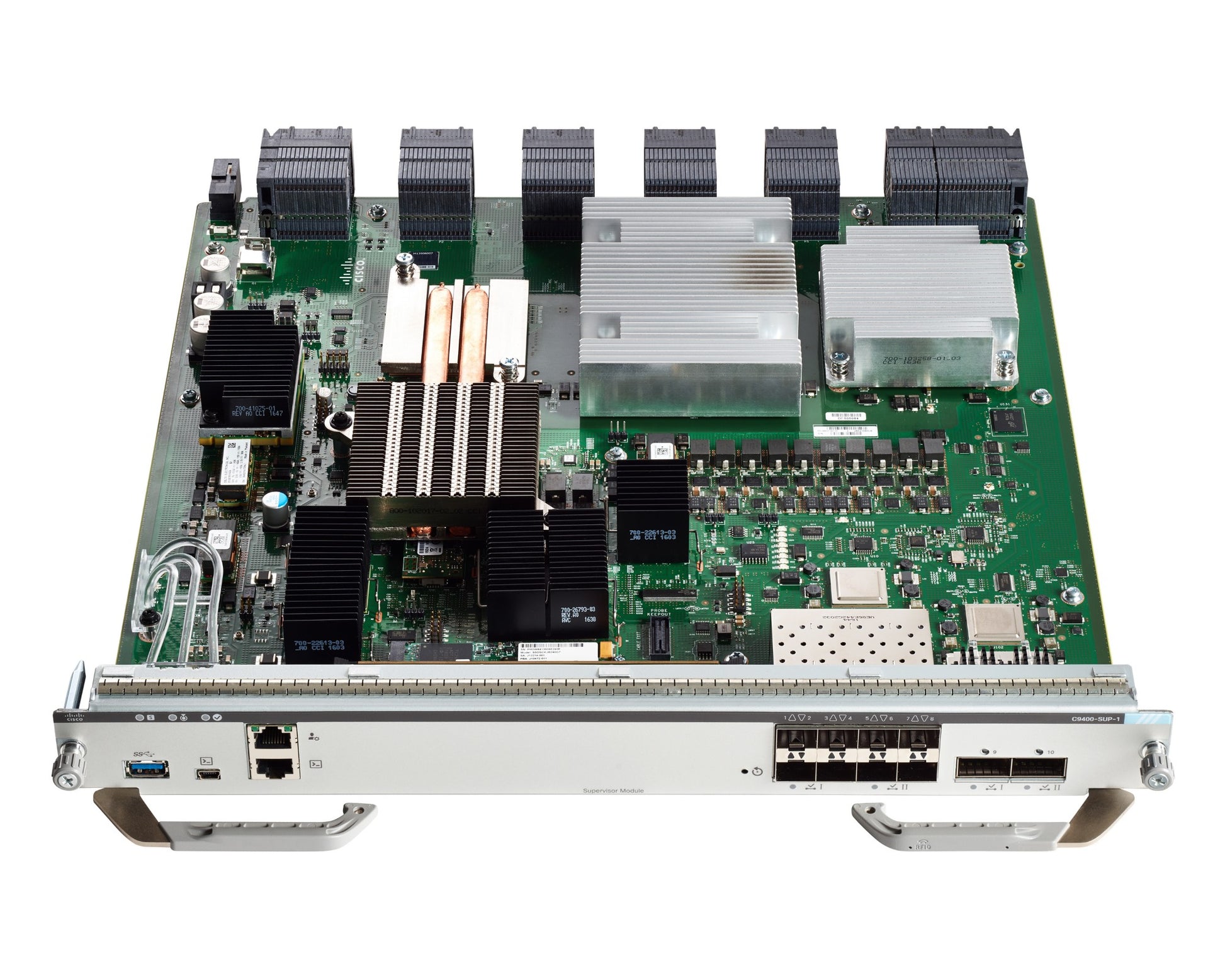

• Cisco C9400-SUP-1 supervisor engine with silver motherboard and green circuitry
1 1

Cisco

Cisco C9400-SUP-1 | Catalyst 9400 Supervisor 1 Module, 1.44Tbps, 8x 10G SFP+

C9400-SUP-1

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400-SUP-1 is the entry-level supervisor engine for Catalyst 9400 Series modular switches, delivering 1.44 Tbps switching fabric and 80 Gbps per slot capacity. Powered by the Cisco UADP 2.0 ASIC, it provides eight 10 Gigabit Ethernet SFP+ uplinks or two 40 Gigabit Ethernet QSFP+ uplinks with MACsec-256 hardware encryption. Designed for secure campus access and distribution deployments, it supports HA with NSF/SSO and redundant supervisor configurations for enterprise-grade reliability.

Features

Cisco UADP 2.0 ASIC for programmable, high-performance packet processing
- MACsec-256 hardware encryption for wire-speed, standards-based security
- High Availability: Nonstop Forwarding (NSF) and Stateful Switchover (SSO)
- Redundant supervisor support for mission-critical uptime
- Flexible uplink options: 8x 10G SFP+ or 2x 40G QSFP+
- 960 GB SSD support for on-box applications (ThousandEyes, Wi-Fi analytics, Python automation)
- Cisco SD-Access ready: policy-based segmentation and automation
- Cisco TrustSec and group-based policy enforcement
- Advanced Layer 2 and Layer 3 routing (static, RIP, OSPF, EIGRP, BGP)
- IPv4 and IPv6 dual-stack routing with up to 112K IPv4 and 56K IPv6 routes
- Hardware-based Flexible NetFlow for up to 384K IPv4 flows
- Quality of Service (QoS): up to 18,000 hardware QoS entries
- Security ACLs: up to 18,000 hardware ACL entries
- Multicast routing: PIM, IGMP, up to 16,000 multicast routes
- RFID tag for automated asset and inventory tracking
- Blue Beacon LED for easy physical device identification
- USB 3.0 Type-A host port for external storage and image management
- Ethernet management port for out-of-band management and image recovery (ROMMON mode)
- Console port (RJ-45) with 9600 baud default settings
- In-Service Software Upgrade (ISSU) support with compatible IOS XE versions
- Cisco StackWise Virtual (SVL) support for virtualized redundancy with ISSU
- Per-port PoE power control and sensing (when used with PoE line cards)
- Closet-friendly 16-inch depth with side-to-side airflow and dual-serviceable fan trays
- RoHS-5 compliant and environmentally friendly design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Switching Fabric: Up to 1.44 Tbps centralized wired capacity
- Per-Slot Capacity: 80 Gbps
- Uplink Options: 8x 10 Gigabit Ethernet SFP+ (ports 1-8) OR 2x 40 Gigabit Ethernet QSFP+ (ports 9-10)
- Forwarding Rate: 900 Mpps (IPv4), 450 Mpps (IPv6)
- MAC Addresses: Up to 64,000
- IPv4 Routing Entries: Up to 112,000
- IPv6 Routing Entries: Up to 56,000
- VLANs: 4,096
- Switched Virtual Interfaces (SVIs): 4,000
- Memory: 16 GB DRAM, 10 GB Flash
- SSD Capacity: 960 GB (optional M.2 SATA)
- Packet Buffer: 96 MB
- Security ACL Entries: Up to 18,000 (hardware)
- Flexible NetFlow Entries: Up to 384,000 (IPv4) / 192,000 (IPv6)
- Jumbo Frame Support: 9,216 bytes
- Management: Console port, Ethernet management port (10/100/1000), USB 3.0 Type-A
- Encryption: MACsec-256 (hardware-based)
- High Availability: NSF/SSO, redundant supervisor support
- Dimensions (H x W x D): 1.6 x 14.9 x 14.6 in (4.1 x 37.8 x 37.1 cm)
- Weight: Approximately 10 lb (4.5 kg)
- Power Consumption: Maximum 400W (active), 400W (standby)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Altitude: Up to 6,000 ft (1,800 m) at normal temperatures
- Compatibility: Catalyst 9400 Series chassis (C9404R, C9407R, C9410R)
- Minimum Software: Cisco IOS XE 16.6.1 (C9407R/C9410R), IOS XE 16.9.1 (C9404R)

FAQs

Q: What is the difference between C9400-SUP-1 and C9400-SUP-1XL?
A: The C9400-SUP-1 is the entry-level supervisor with 80 Gbps per slot and supports 8x 10G SFP+ or 2x 40G QSFP+ uplinks. The C9400-SUP-1XL offers the same capacity but with enhanced scalability features. For 25G uplinks, consider the C9400-SUP-1XL-Y, and for 100G uplinks and 240-480 Gbps per slot, the C9400X-SUP-2 or 2XL models are recommended.

Q: Can I mix C9400-SUP-1 with other supervisor models in redundant configurations?
A: Cisco recommends using matching supervisor models for redundancy. While IOS XE may allow mixed configurations, using identical supervisors (e.g., two C9400-SUP-1 modules) ensures compatibility, consistent performance, and seamless failover with NSF/SSO.

Q: Does the C9400-SUP-1 require a separate license for SD-Access or DNA features?
A: Yes, the C9400-SUP-1 requires separate Cisco DNA licenses for advanced features. DNA Essentials enables basic automation and segmentation, while DNA Advantage unlocks full SD-Access, encrypted traffic analytics, and Cisco AI-driven insights. Licenses are sold separately as term subscriptions (3, 5, or 7 years).

Q: Which Catalyst 9400 line cards are supported by the C9400-SUP-1?
A: The C9400-SUP-1 supports all Catalyst 9400 Series line cards, including 48-port Gigabit models (C9400-LC-48U, C9400-LC-48T, C9400-LC-48P), 24-port 10G models (C9400-LC-24XS), and multigigabit modules (C9400-LC-48UX). Consult the official Cisco datasheet for the full compatibility matrix and minimum IOS XE versions.

Q: Can the uplink ports support both 10G and 40G simultaneously?
A: No, the uplink mode is mutually exclusive. You can configure either eight active 10 Gigabit Ethernet SFP+ ports (ports 1-8) or two active 40 Gigabit Ethernet QSFP+ ports (ports 9-10). A hybrid mode (e.g., 4x 10G + 1x 40G) is available but disables the remaining ports. Configuration is done via IOS XE CLI.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
