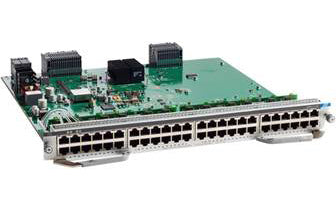

Cisco C9400-LC-48U | Catalyst 9400 48-Port Gigabit UPOE Line Card, 60W Per Port

C9400-LC-48U

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400-LC-48U is a modular line card designed for the Catalyst 9400 Series switches, delivering 48 ports of Gigabit Ethernet with Universal Power over Ethernet (UPOE) support. Each port provides up to 60W of power, making it ideal for powering high-demand devices such as wireless access points, IP phones, surveillance cameras, and IoT endpoints. With hardware-based MACsec security, hot-swappable design, and compatibility with all Catalyst 9400 chassis models, this line card is built for enterprise campus and branch deployments requiring high-density connectivity and advanced PoE.

Features

Universal Power over Ethernet (UPOE) delivering 15W, 30W, or 60W per port
- High-density 48-port Gigabit Ethernet connectivity in a single slot
- Hardware-based MACsec-256 encryption for secure data transmission
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Support for EtherChannel and IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Hot-swappable and tool-less installation for simplified maintenance
- Dual-serviceable fan tray design with side-to-side airflow
- Compatible with Cisco DNA Center for centralized network management and automation
- SD-Access ready with support for network segmentation and policy-based automation
- Jumbo frame support for high-performance data transfers
- N+1 and N+N power supply redundancy support
- SSO/NSF (Stateful Switchover / Non-Stop Forwarding) for high availability
- Embedded RFID tags for automated inventory and asset management
- Cisco StackWise Virtual support when used in compatible Catalyst 9400 configurations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48 x 10/100/1000 Mbps RJ-45 ports
- Universal Power over Ethernet (UPOE): up to 60W per port
- PoE standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Cisco UPOE
- Bandwidth: up to 480 Gbps per slot (with C9400X-SUP-2XL), 240 Gbps (with C9400X-SUP-2 or C9400-SUP-1XL/1XL-Y), 80 Gbps (with C9400-SUP-1)
- Compatible chassis: C9404R, C9407R, C9410R
- Hot-swappable, tool-less installation
- MACsec-256 hardware-based encryption support
- Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
- Maximum rated power consumption: 65W (module only, excluding PoE budget)
- Standards: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz
- Energy Efficient Ethernet (IEEE 802.3az)
- EtherChannel and IEEE 802.3ad Link Aggregation support

FAQs

Q: What devices can the C9400-LC-48U power with UPOE?
A: The C9400-LC-48U supports UPOE at up to 60W per port, enabling it to power high-demand devices such as Wi-Fi 6 access points, PTZ security cameras, IP phones, video conferencing endpoints, thin clients, and building automation systems without requiring separate power infrastructure.

Q: Which Catalyst 9400 chassis models are compatible with this line card?
A: The C9400-LC-48U is compatible with all Catalyst 9400 Series chassis models, including the C9404R (4-slot), C9407R (7-slot), and C9410R (10-slot). It occupies one slot per line card and can be mixed with other Catalyst 9400 line cards in the same chassis.

Q: What is the maximum bandwidth per slot for the C9400-LC-48U?
A: Bandwidth depends on the supervisor engine: 480 Gbps per slot with C9400X-SUP-2XL, 240 Gbps with C9400X-SUP-2 or C9400-SUP-1XL/1XL-Y, and 80 Gbps with C9400-SUP-1. This ensures line-rate performance for Gigabit Ethernet traffic across all 48 ports.

Q: Does the C9400-LC-48U require a separate software license?
A: The C9400-LC-48U line card itself does not require a separate license. However, advanced software features on the Catalyst 9400 switch (such as Cisco DNA Advantage or Premier) require appropriate licensing on the supervisor engine for full SD-Access, automation, and analytics capabilities.

Q: Can the C9400-LC-48U support multigigabit Ethernet speeds?
A: No, the C9400-LC-48U supports standard 10/100/1000 Mbps Ethernet only. For multigigabit (2.5G/5G/10G) support, consider the C9400-LC-48UX line card, which includes 24 ports of multigigabit UPOE+ capability.
