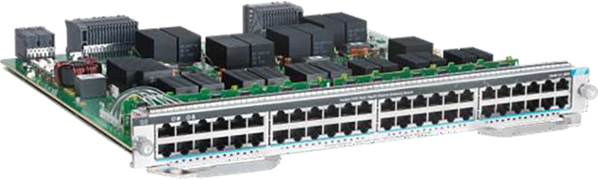

Cisco C9400-LC-48TX | Catalyst 9400 48-Port 10GBASE-T Line Card, Non-PoE, 480Gbps

C9400-LC-48TX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400-LC-48TX is a high-density 48-port multigigabit line card for the Catalyst 9400 Series modular chassis, delivering non-PoE data connectivity at speeds up to 10GBASE-T. Each RJ-45 port auto-negotiates 100M, 1G, 2.5G, 5G, or 10G speeds, providing flexible deployment for bandwidth-intensive campus environments. With up to 480Gbps per-slot throughput when paired with C9400X-SUP-2XL supervisors, this line card is ideal for high-performance enterprise networks requiring secure, scalable copper connectivity without Power over Ethernet.

Features

Multigigabit Ethernet supporting 100M/1G/2.5G/5G/10GBASE-T auto-negotiation per port
- Non-blocking, line-rate forwarding for consistent application performance
- Hardware-based MACsec-256 encryption for secure Layer 2 data transmission
- Hot-swappable design with front-panel LEDs for operational status monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Jumbo frame support (up to 9,216 bytes) for optimized large-packet transmission
- Integrated RFID tag for automated asset management and inventory tracking
- Compatible with Cisco StackWise Virtual for chassis redundancy and scalability
- Supports Cisco DNA Center automation, assurance, and policy management
- SD-Access ready for software-defined segmentation and zero-trust security
- Cisco Trustworthy Systems with secure boot and runtime defenses
- Encrypted Traffic Analytics (ETA) for threat detection without decryption

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48 x RJ-45 10GBASE-T multigigabit ports (100M/1G/2.5G/5G/10G auto-negotiation)
- Non-PoE, data-only connectivity
- Up to 480 Gbps bandwidth per slot with C9400X-SUP-2XL/2 supervisors
- 240 Gbps per slot with C9400-SUP-1XL/1XL-Y supervisors
- 80 Gbps per slot with C9400-SUP-1 supervisor
- Hardware-based MACsec-256 encryption for data-in-transit security
- Jumbo frame support up to 9,216 bytes
- Hot-swappable installation (OIR - Online Insertion and Removal)
- Energy Efficient Ethernet (EEE) support
- Compatible with all Catalyst 9400 chassis (C9404R, C9407R, C9410R)
- Requires Cat6a cabling for reliable 10G performance
- Supports Cisco DNA Center and SD-Access integration

FAQs

Q: Does the C9400-LC-48TX support Power over Ethernet?
A: No, the C9400-LC-48TX is a data-only line card and does not provide PoE. For PoE requirements, consider the C9400-LC-48UX (UPOE) or C9400-LC-48HX (UPOE+) line cards.

Q: What cable category is recommended for 10G speeds?
A: Cat6a or Cat7 cabling is recommended for reliable 10GBASE-T operation. Lower category cables (Cat5e/Cat6) may result in downgraded link speeds to 1G, 2.5G, or 5G depending on cable quality and length.

Q: Which supervisor modules are compatible with this line card?
A: The C9400-LC-48TX is compatible with all Catalyst 9400 supervisor engines including C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL. Maximum bandwidth varies by supervisor model.

Q: Can I hot-swap this line card without powering down the chassis?
A: Yes, all Catalyst 9400 line cards support Online Insertion and Removal (OIR). The chassis automatically detects and configures the line card without requiring a system reboot.

Q: What is the typical use case for this line card?
A: The C9400-LC-48TX is ideal for high-bandwidth enterprise edge deployments, campus access layer connections, and workgroup environments requiring multigigabit copper connectivity for devices with dedicated power sources such as Wi-Fi 6/6E access points with local power or high-performance wired endpoints.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
