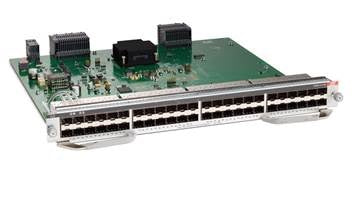

Cisco C9400-LC-48S | Catalyst 9400 48-Port Gigabit SFP Line Card, Modular

C9400-LC-48S

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400-LC-48S is a high-density 48-port Gigabit Ethernet SFP line card designed for Catalyst 9400 Series modular switches. Ideal for enterprise core, distribution, and access layer fiber aggregation, this line card delivers up to 480 Gbps throughput per slot with compatible supervisors and features hardware-accelerated MACsec encryption for secure fiber connectivity. Hot-swappable design enables seamless deployment in campus, service provider, and Fiber-to-the-Desktop environments.

Features

48 hot-swappable 1 Gigabit Ethernet SFP ports for flexible fiber connectivity
- Non-blocking architecture with line-rate forwarding across all ports
- Hardware-based MACsec-256 (IEEE 802.1AE) encryption for secure data transmission
- Jumbo frame support up to 9,216 bytes for optimized large file transfers
- Compatible with all Catalyst 9400 supervisor engines (SUP-1, SUP-1XL, SUP-2, SUP-2XL)
- Hot-swappable Online Insertion and Removal (OIR) for zero-downtime maintenance
- Supports Cisco StackWise Virtual technology for redundancy and scalability
- Integrated with Cisco DNA Center for automated provisioning and SD-Access
- Layer 2 and Layer 3 switching capabilities via Cisco IOS XE
- Advanced security features: TrustSec, Encrypted Traffic Analytics, 802.1X authentication
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Embedded RFID tag for automated inventory and asset management
- Full compatibility with Cisco and third-party SFP transceivers (SR, LR, ER)
- Designed for enterprise-grade high availability with SSO/NSF support
- Side-to-side airflow optimized for rack-mounted modular chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48 x 1 Gigabit Ethernet SFP ports (non-blocking)
- Bandwidth: Up to 480 Gbps per slot with C9400X-SUP-2XL; 240 Gbps with C9400X-SUP-2; 80-240 Gbps with SUP-1 variants
- Form factor: Single-slot plug-in line card module
- Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
- Maximum power consumption: 170W
- Hot-swappable with Online Insertion and Removal (OIR)
- MACsec: Hardware-accelerated IEEE 802.1AE (MACsec-256) encryption
- Jumbo frame support: Up to 9,216 bytes
- Compatible chassis: C9404R (48-96 ports), C9407R (48-240 ports), C9410R (48-384 ports)
- Supervisor compatibility: C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, C9400X-SUP-2XL
- Management: Cisco IOS XE Software (Release 16.8.1 or later), Cisco DNA Center, CLI, SNMP
- Standards compliance: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az
- Built-in RFID tag for automated asset tracking
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Operating humidity: 10% to 90% non-condensing

FAQs

Q: What chassis models are compatible with the C9400-LC-48S?
A: The C9400-LC-48S is compatible with all Cisco Catalyst 9400 Series chassis: C9404R (4-slot), C9407R (7-slot), and C9410R (10-slot). It occupies one line card slot and supports hot-swappable installation without powering down the chassis.

Q: What is the difference between C9400-LC-48S and C9400-LC-48XS?
A: The C9400-LC-48S provides 48 x 1 Gigabit Ethernet SFP ports, while the C9400-LC-48XS offers 48 x 10 Gigabit Ethernet SFP+ ports. The 48XS supports both 10G SFP+ and 1G SFP transceivers for flexible migration, whereas the 48S is optimized for 1G fiber connectivity only.

Q: Does the C9400-LC-48S support Power over Ethernet?
A: No, the C9400-LC-48S is a fiber-only SFP line card and does not support PoE. For PoE deployment, consider PoE-capable line cards such as the C9400-LC-48P, C9400-LC-48U, or C9400-LC-48H series with RJ45 copper ports.

Q: What bandwidth does this line card provide with different supervisors?
A: Bandwidth varies by supervisor engine: up to 480 Gbps per slot with C9400X-SUP-2XL, 240 Gbps with C9400X-SUP-2, 240 Gbps with C9400-SUP-1XL/1XL-Y, and 80 Gbps with C9400-SUP-1. Higher bandwidth supervisors enable full line-rate, non-blocking performance across all 48 ports.

Q: What are typical deployment scenarios for the C9400-LC-48S?
A: This line card is ideal for enterprise core and distribution layer fiber aggregation, Fiber-to-the-Desktop (FTTD) deployments, service provider Gigabit Ethernet aggregation for DSLAM and PON, mobile data backhaul, and high-density campus environments requiring secure fiber connectivity with MACsec encryption.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
