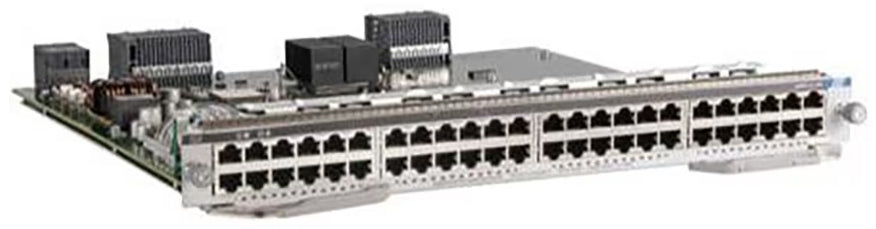

• Cisco C9400-LC-48HX 48-port mGig switch with RJ-45 ports and UPOE+
1 1

Cisco

Cisco C9400-LC-48HX | Catalyst 9400 48-Port 10G mGig Switch Line Card, 90W UPOE+

C9400-LC-48HX

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400-LC-48HX is a high-performance line card for Catalyst 9400 Series modular switches, delivering 48 ports of multigigabit connectivity with UPOE+ support. Each RJ-45 port auto-negotiates from 100Mbps to 10Gbps and provides up to 90W per port via IEEE 802.3bt Type 4, making it ideal for powering Wi-Fi 6/6E access points, IoT devices, digital signage, and smart building applications. Designed for enterprise campus and high-density environments, this line card offers up to 480Gbps bandwidth per slot with compatible supervisors and supports MACsec-256 hardware encryption for secure deployments.

Features

Multigigabit Ethernet: Auto-negotiation from 100Mbps to 10Gbps on all 48 ports for flexible device connectivity
- UPOE+ Power Delivery: IEEE 802.3bt Type 4 compliant, up to 90W per port for next-generation high-power endpoints
- Backward PoE Compatibility: Supports PoE (15W), PoE+ (30W), UPOE (60W), and UPOE+ (90W) on all ports
- MACsec Hardware Encryption: Line-rate MACsec-256 for secure data transmission
- Hot-Swappable Design: Tool-less installation and removal without powering down the chassis
- Non-Blocking Architecture: Line-rate forwarding performance on all ports simultaneously
- Energy Efficient Ethernet (EEE): IEEE 802.3az support for reduced power consumption during low traffic periods
- Jumbo Frame Support: Enhanced throughput for large data transfers
- Dual Supervisor Redundancy: Supports uninterrupted power and data with redundant supervisors
- Cable Flexibility: Supports Cat 5e/6 cabling for 1G/2.5G/5G speeds, Cat 6a for full 10G performance
- SD-Access Ready: Integrated support for Cisco's Software-Defined Access architecture
- IoT and Smart Building Optimized: Purpose-built for high-density IoT, digital workplace, and smart campus deployments
- Stackwise Virtual Support: Part of Catalyst 9400 virtual stacking for up to 800 ports in a single logical switch

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Port Configuration: 48x 10GBASE-T multigigabit RJ-45 ports
- Port Speeds: Auto-negotiation 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps
- Power over Ethernet: UPOE+ (IEEE 802.3bt Type 4) - up to 90W per port
- PoE Standards: Supports IEEE 802.3af (PoE), 802.3at (PoE+), Cisco UPOE (60W), Cisco UPOE+ (90W)
- Bandwidth per Slot: Up to 480Gbps with C9400X-SUP-2XL/2, 240Gbps with C9400X-SUP-2/C9400-SUP-1XL, 80Gbps with C9400-SUP-1
- Forwarding Performance: Non-blocking, line-rate forwarding on all ports
- Security: MACsec-256 hardware encryption support
- Hot-Swappable: Yes, tool-less installation and removal
- Management: Cisco IOS XE software (Release 17.8.1 or later required)
- Standards Compliance: IEEE 802.3, 802.3ab, 802.3an, 802.3bz, 802.3bt, 802.3az (EEE)
- Jumbo Frame Support: Yes
- Form Factor: Modular line card for Catalyst 9400 chassis (4-slot, 7-slot, 10-slot)

FAQs

Q: What is the maximum power output per port on the C9400-LC-48HX?
A: The C9400-LC-48HX supports UPOE+ (IEEE 802.3bt Type 4) and can deliver up to 90W per port across all 48 ports, making it ideal for high-power devices like Wi-Fi 6E access points, PTZ cameras, and digital displays.

Q: Which Catalyst 9400 supervisor engines are compatible with this line card?
A: The C9400-LC-48HX is compatible with all Catalyst 9400 supervisor engines including C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, and C9400X-SUP-2XL. Bandwidth per slot varies by supervisor, with the latest C9400X-SUP-2XL providing 480Gbps per slot.

Q: What are the typical use cases for this line card?
A: The C9400-LC-48HX is designed for high-density enterprise campus access deployments, powering Wi-Fi 6/6E wireless infrastructure, smart building IoT devices, IP security cameras, digital signage, LED lighting, and collaboration endpoints that require high bandwidth and high power delivery.

Q: Does this line card support any uplink ports?
A: No, the C9400-LC-48HX is a 48-port access line card with no dedicated uplink ports. All 48 ports are multigigabit RJ-45 ports. Uplink connectivity is provided by other line cards in the Catalyst 9400 chassis or through dedicated uplink modules.

Q: What software license is required for the C9400-LC-48HX?
A: The C9400-LC-48HX supports both Network Essentials and Network Advantage software tiers on Cisco IOS XE. The license tier is assigned at the chassis/supervisor level, not per line card. A minimum of IOS XE 17.8.1 or later is required for this line card.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
