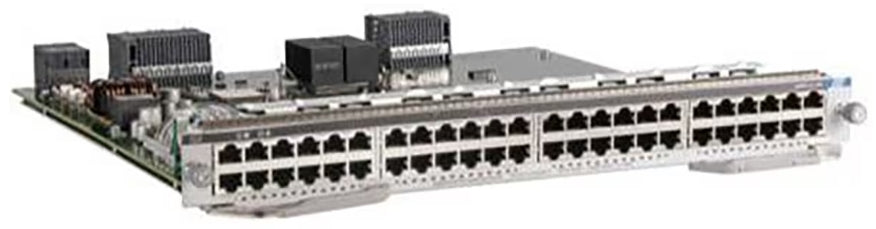

• Cisco C9400-LC-48H 48-port 1G RJ-45 PoE UPOE+ switch module
1 1

Cisco

Cisco C9400-LC-48H | Catalyst 9400 48-Port Gigabit UPOE+ Line Card, 90W per Port

C9400-LC-48H

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9400-LC-48H is a high-density line card for Catalyst 9400 Series modular switches, delivering 48 ports of Gigabit Ethernet with IEEE 802.3bt UPOE+ support at up to 90W per port. Designed for digital building and IoT deployments, it powers next-generation devices including Wi-Fi 6/6E access points, IP cameras, LED lighting, digital signage, and collaboration endpoints over a single cable. This hot-swappable module offers up to 480 Gbps bandwidth per slot with compatible supervisors, MACsec-256 hardware security, and non-blocking architecture for campus and enterprise access applications.

Features

48 Gigabit Ethernet ports with full UPOE+ support delivering up to 90W per port
- IEEE 802.3bt Type 4 compliant for next-generation digital building applications
- Backward compatible with PoE, PoE+, and Cisco UPOE standards
- Non-blocking architecture for wire-speed performance on all ports
- MACsec-256 hardware-based encryption for secure communications
- Jumbo frame support up to 9216 bytes for efficient large file transfers
- Hot-swappable design with tool-less installation for simplified maintenance
- Energy Efficient Ethernet (IEEE 802.3az) support for reduced power consumption
- Compatible with Cisco DNA Center for centralized management and automation
- Stackwise Virtual support when used in compatible chassis configurations
- Integrated RFID tags for automated inventory and asset tracking
- Dual supervisor support for redundant power and data delivery
- Full front accessibility for efficient cable management and deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48 x 10/100/1000BASE-T (RJ-45) ports
- UPOE+ (IEEE 802.3bt Type 4): Up to 90W per port
- Backward compatible with PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), and Cisco UPOE
- Bandwidth: Up to 480 Gbps per slot (with C9400X-SUP-2XL), 240 Gbps (with C9400X-SUP-2 or C9400-SUP-1XL), 80 Gbps (with C9400-SUP-1)
- Non-blocking switching architecture
- MACsec-256 hardware security support
- Jumbo frame support: 9216 bytes
- Hot-swappable, tool-less installation
- Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
- Module power consumption: 65W maximum
- Operating temperature: 23°F to 113°F (-5°C to 45°C)
- Compatible with Catalyst 9400 Series chassis: C9404R, C9407R, C9410R
- Minimum IOS XE Software Release: 16.12.1 or later
- Compliant with IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az

FAQs

Q: What is the maximum power per port on the C9400-LC-48H?
A: The C9400-LC-48H delivers up to 90W per port using UPOE+ (IEEE 802.3bt Type 4). It is also backward compatible with standard PoE (15W), PoE+ (30W), and Cisco UPOE (60W) for flexibility with existing powered devices.

Q: Which Catalyst 9400 chassis is this line card compatible with?
A: The C9400-LC-48H is compatible with all Catalyst 9400 Series chassis models including the C9404R (4-slot), C9407R (7-slot), and C9410R (10-slot). Maximum port density varies by chassis: 96 ports on C9404R, 240 ports on C9407R, and 384 ports on C9410R.

Q: What types of devices can be powered with UPOE+ on this line card?
A: This line card is designed to power high-demand devices including Wi-Fi 6 and Wi-Fi 6E access points, 4K IP cameras with PTZ, LED lighting fixtures, digital signage displays, collaboration endpoints, IP phones, and other IEEE 802.3bt-compliant IoT devices requiring up to 90W.

Q: Does the C9400-LC-48H support hot swapping?
A: Yes, all Catalyst 9400 Series line cards including the C9400-LC-48H support hot swapping. You can install, remove, or replace the module without powering down the chassis, and the system will automatically detect and configure the card with no operator intervention required.

Q: What bandwidth does this line card provide?
A: Bandwidth per slot depends on the supervisor engine installed. With the C9400X-SUP-2XL, the C9400-LC-48H delivers up to 480 Gbps per slot. With C9400X-SUP-2 or C9400-SUP-1XL, it provides 240 Gbps. With C9400-SUP-1, bandwidth is 80 Gbps per slot.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
