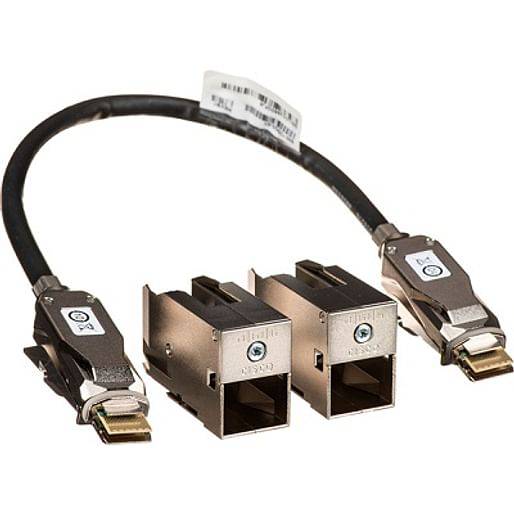

• Cisco C9300L-STACK module with black silver USB cable
1 1

Cisco

Cisco C9300L-STACK | Catalyst 9300L StackWise-320 Module, 320 Gbps, Hot-Swappable

C9300L-STACK

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9300L-STACK stacking module enables StackWise-320 connectivity for Catalyst 9300L Series switches. This hot-swappable kit includes two stack adapters and one stacking cable, supporting up to 8 switches in a unified stack with 320 Gbps bandwidth. Designed for enterprise campus networks requiring simplified management, scalability, and high-availability deployments.

Features

StackWise-320 technology for high-speed stacking at 320 Gbps bandwidth
- Unified management and configuration across up to 8 stacked switches
- Redundant ring topology for high availability and failover protection
- Hot-swappable design for easy installation and maintenance
- Plug-and-play deployment with automatic stack discovery protocol
- Support for multiple cable lengths (0.5m, 1m, 3m) for flexible rack configurations
- Dual stack adapter design provides two independent stacking ports
- Fast stack convergence for minimal downtime during topology changes
- Spatial Reuse Protocol (SRP) optimization for unicast traffic up to 320 Gbps
- Compatible with Cisco IOS XE Release 16.11.1b or later

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Stacking Technology: StackWise-320
- Stacking Bandwidth: 320 Gbps (160 Gbps aggregated per switch, 320 Gbps with Spatial Reuse Protocol)
- Maximum Stack Size: Up to 8 switches
- Form Factor: Hot-swappable plug-in module
- Included Components: 2 stack adapters and 1 stacking cable (0.5m default)
- Cable Options: 0.5m (default), 1m, and 3m stacking cables available
- Compatibility: Cisco Catalyst 9300L and 9300LM Series switches only
- Installation: Rear-mounted stack adapters with dedicated stack cable
- Ring Topology: 4 internal stack rings per switch
- Maximum Throughput per Ring: 40 Gbps
- Connectivity: Dual StackWise-320 ports per adapter

FAQs

Q: Is the C9300L-STACK module compatible with standard Catalyst 9300 or 9300X switches?
A: No, the C9300L-STACK module is designed exclusively for Catalyst 9300L and 9300LM fixed uplink models. It cannot be used with modular uplink models (C9300/C9300X) or other Catalyst switch series such as the 3850 or 3650.

Q: How many switches can I stack using this module?
A: You can stack up to 8 Catalyst 9300L switches in a ring topology using the C9300L-STACK module, providing a total stacking bandwidth of 320 Gbps with redundant cable connections for high availability.

Q: What cable length is included with the C9300L-STACK kit?
A: The kit includes a 0.5m (50cm) Type 3 stacking cable by default. Optional 1m and 3m cables are available for side-by-side or distributed rack mounting configurations.

Q: Can I hot-swap the stacking module without powering down the switch?
A: Yes, the C9300L-STACK module is hot-swappable, allowing installation and removal during operation. However, best practice is to follow proper stacking procedures to avoid stack disruption.

Q: Does the C9300L-STACK module support StackPower functionality?
A: No, StackPower is not supported on Catalyst 9300L switches. StackPower functionality is available only on C9300 and C9300X modular uplink models with dedicated StackPower connectors.
