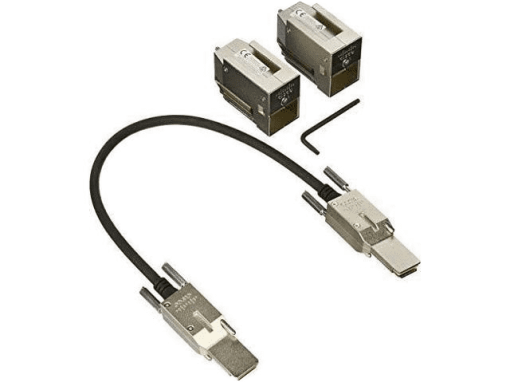

• Cisco C9200-STACK StackWise-160 module with black and gold cable connectors
1 1

Cisco

Cisco C9200-STACK | Catalyst 9200 StackWise-160 Stacking Module, 160 Gbps Bandwidth

C9200-STACK

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200-STACK is a StackWise-160 stacking module designed for Catalyst 9200 modular switches, delivering 160 Gbps of stacking bandwidth per switch. This field-replaceable module enables you to stack up to 8 Catalyst 9200 switches in a ring topology, creating a unified system with a single management and control plane. Ideal for enterprise campus and branch deployments requiring high availability, simplified management, and scalable infrastructure.

Features

StackWise-160 technology delivers 160 Gbps stacking bandwidth per switch
- Supports stacking up to 8 Catalyst 9200 switches in a unified system
- Single management plane and control plane for simplified operations
- Distributed forwarding architecture for wire-speed switching performance
- Stateful Switchover (SSO) for sub-second failover and high availability
- Resilient ring topology for redundant stack connectivity
- Non-stop forwarding (NSF) during stack member failure
- Field-replaceable design for easy installation and maintenance
- Centralized management via CLI, Cisco Catalyst Center, or Meraki Dashboard
- Mixed-mode stacking support across different C9200 variants (PoE, data, multigigabit)
- Hardware-accelerated network services distributed across all stack members
- Scales port density up to 384 access ports in a single stack

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Product Type: Network stacking module
- Compatible Platforms: Cisco Catalyst 9200 modular switches (C9200 SKUs only)
- Stacking Technology: StackWise-160
- Stack Bandwidth: 160 Gbps per switch
- Maximum Stack Members: Up to 8 switches
- Stack Ports: 2x stack ports per module
- Stack Topology: Resilient ring and non-resilient configurations
- Form Factor: Field-replaceable plug-in module
- Management: Single management and control plane for entire stack
- High Availability: Stateful Switchover (SSO) support
- Note: Not compatible with C9200L (uses StackWise-80) or C9200CX models
- Note: Stacking cables sold separately (STACK-T4-50CM, STACK-T4-1M, STACK-T4-3M)

FAQs

Q: What is the difference between C9200-STACK and C9200-STACK-KIT?
A: The C9200-STACK is the individual stacking module only, sold as a spare or replacement part. The C9200-STACK-KIT includes 2 stacking modules plus a 0.5m stacking cable, providing everything needed to enable stacking on two switches.

Q: Is the C9200-STACK compatible with Catalyst 9200L switches?
A: No, the C9200-STACK is designed exclusively for Catalyst 9200 modular switches. Catalyst 9200L fixed-configuration models use StackWise-80 technology and require the C9200L-STACK-KIT instead. Mixed stacking between C9200 and C9200L is not supported.

Q: How many C9200-STACK modules do I need to stack switches?
A: You need one stacking module per switch. For example, to stack 4 switches, you need 4 modules. Additionally, you need StackWise cables to connect the modules in a ring topology (cables sold separately).

Q: What stacking bandwidth does the C9200-STACK provide?
A: Each C9200-STACK module provides 160 Gbps of stacking bandwidth per switch, enabling high-speed inter-switch communication for distributed switching and non-blocking performance across the stack.

Q: Can I hot-swap a C9200-STACK module?
A: Yes, the C9200-STACK is a field-replaceable unit (FRU) and can be installed or replaced as needed. However, stacking cables should be connected before powering on the switch for proper stack formation.
