• Cisco C-SM-16P4M2X 16x 1G PoE+ and 4x 2.5G mGig switch module
1 1

Cisco

Cisco C-SM-16P4M2X | Catalyst 8300 22-Port PoE+ Switch Module, 2x 10G SFP+

C-SM-16P4M2X

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

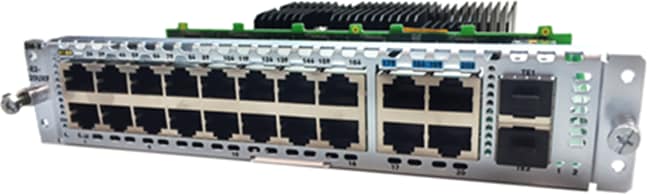

Single-wide Layer 2 switching service module for Cisco Catalyst 8300 Series Edge Platforms, adding 16 x 1G RJ-45 ports, 4 x 2.5G multigigabit RJ-45 ports and 2 x 10G SFP+ uplinks in a 22-port configuration. PoE, PoE+ and UPOE are supported on the copper ports, making it suited to powering access points, IP phones and cameras at the branch edge. As a plug-in SM slot module, it consolidates routing and switching in a single chassis. It differs from the double-wide C-SM-40P8M2X, which provides 50 ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated Layer 2 branch switching inside the Catalyst 8300 router
- 10G-capable internal uplink to the central forwarding data plane
- 2.5G mGig ports suited to access points, uplink expansion and cellular gateways
- Two SFP+ ports support single-mode and multimode fibre and can be aggregated into a fault-tolerant Layer 2 port channel
- Supports PoE, PoE+, Cisco EPoE and UPOE on copper ports
- Only one of the C-SM-16P4M2X or C-SM-40P8M2X can be used per chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: single-wide SM slot module for Catalyst 8300 Series Edge Platforms
- 22 ports total: 16 x 1G RJ-45, 4 x 2.5G Multigigabit RJ-45, 2 x 10G SFP+
- SFP+ ports can each be configured as 1G SFP or 10G SFP+
- PoE 15.4W and PoE+ up to 30W on all 20 copper ports
- PoE, PoE+ and UPOE supported, up to 60W per port depending on platform and PSU
- Available PoE power ranges from 250W to 1000W depending on the platform model
- Layer 2 switching with UADP ASIC
- 32,000 MAC addresses
- 1000 VLAN IDs
- Jumbo frames up to 9216 bytes
- Up to 4 ports of 1G or 2.5G can be aggregated into a single EtherChannel (PAgP and LACP supported)
- Dimensions (W x D x H): 17.25 x 18.5 x 3.5 in
- Requires at least one PoE-capable PSU in the chassis to enable PoE ports

FAQs

Q: Is the C-SM-16P4M2X a standalone switch?
A: No. It is a single-wide plug-in service module for the SM slot of Cisco Catalyst 8300 Series Edge Platforms, so it must be installed in a compatible chassis.

Q: What ports does this module provide?
A: It provides 22 ports: 16 x 1G RJ-45, 4 x 2.5G Multigigabit RJ-45 and 2 x 10G SFP+. Each SFP+ port can be configured as 1G SFP or 10G SFP+.

Q: Does it support PoE?
A: Yes. All 20 copper ports support PoE (15.4W) and PoE+ (up to 30W), with PoE, PoE+ and UPOE supported up to 60W per port depending on platform and power supply. At least one PoE-capable PSU must be installed in the chassis to enable PoE ports.

Q: How does it differ from the C-SM-40P8M2X?
A: The C-SM-16P4M2X is single wide with 22 ports. The C-SM-40P8M2X is double wide with 50 ports. Only one of the two can be used per chassis.

Q: Can I aggregate links on this module?
A: Yes. Up to 4 ports of 1G or 2.5G can be aggregated into a single EtherChannel, with PAgP and LACP supported. The two SFP+ ports can also be aggregated into a Layer 2 port channel.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
