Cisco AIR-CAB020LL-R | Aironet 20 ft Low-Loss Antenna Cable, RP-TNC
SKU:AIR-CAB020LL-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco Aironet 20 ft low-loss cable assembly is a 50-ohm LMR400-type interconnect cable for placing an antenna at a distance from a Cisco Aironet access point. It suits remote or external antenna installations in indoor and outdoor Wi-Fi deployments where the antenna must sit some way from the radio unit.

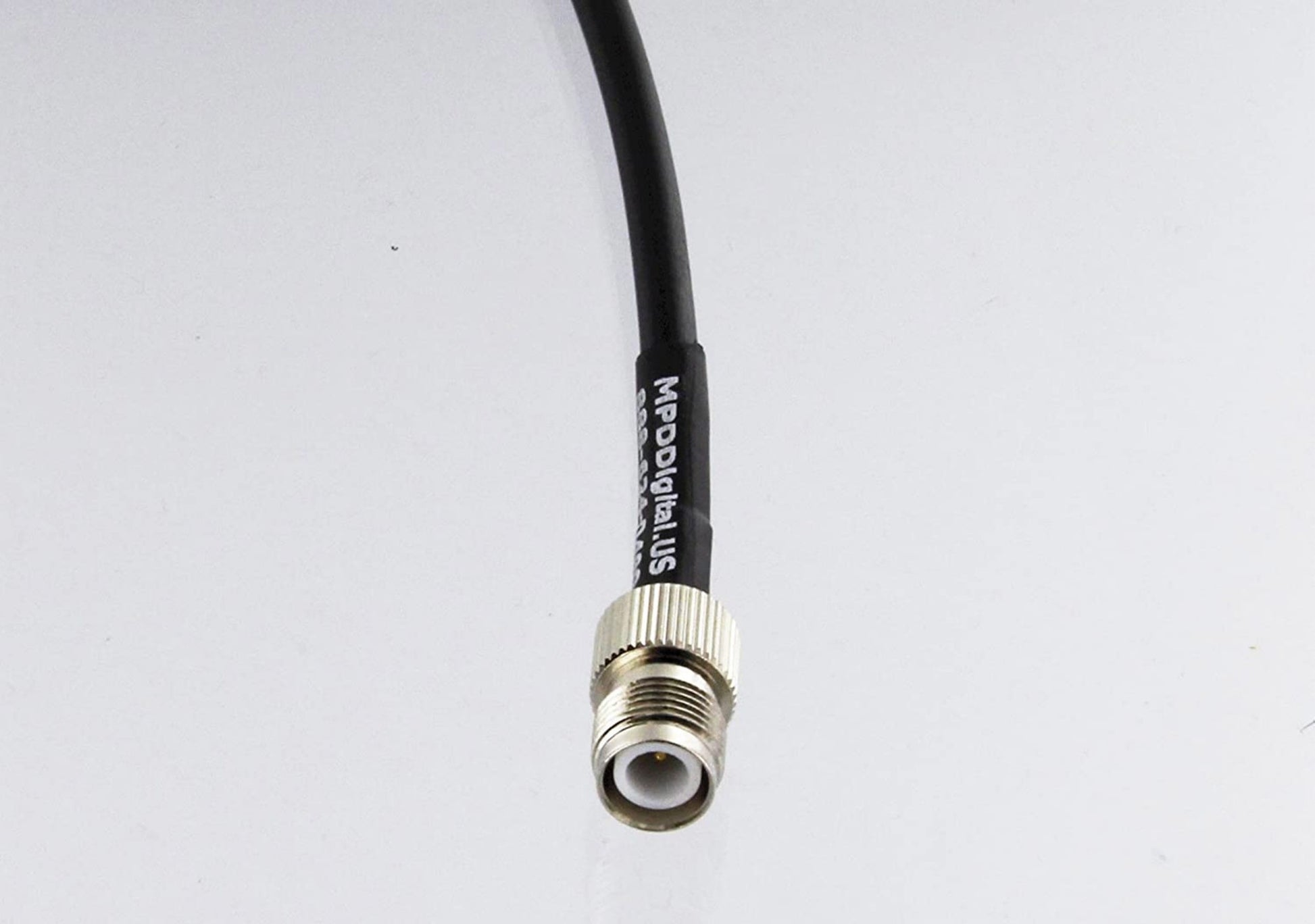

The cable is 20 ft (approx. 6 m) long and is terminated with one RP-TNC plug and one RP-TNC jack. Signal loss is 1.3 dB at 2.4 GHz and 2.5 dB at 5.8 GHz, which is lower than a standard interconnect cable. It is an outdoor-rated cable with improved insulation that is far less susceptible to water penetration than earlier cables. It is a passive component and needs no power.
It is intended for Cisco Aironet access points and antennas that use RP-TNC connectors, and it can be used with the Cisco Aironet lightning arrestor AIR-ACC245LA-R. RP-TNC connectors do not mate with standard TNC connectors. It is the suggested replacement for the end-of-life 20 ft cable AIR-420-003346-020.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Low-loss cable that lets the antenna be placed at a distance from the access point
- RP-TNC plug and jack connect between the radio unit and the interconnect cable on the antenna
- Outdoor-rated construction with improved insulation and water-penetration resistance
- Low-loss cable runs are best kept to the minimum length required
- Works with Cisco Aironet indoor products that use RP-TNC connectors
- Passive component with no power requirement
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Length: 20 ft (approx. 6 m)
- Cable type: Low-loss (LMR400-type) interconnect cable
- Connector A: RP-TNC plug (reverse polarity TNC)
- Connector B: RP-TNC jack (reverse polarity TNC)
- Impedance: 50 ohm
- Loss at 2.4 GHz: 1.3 dB
- Loss at 5.8 GHz: 2.5 dB
- Outdoor-rated: Yes, improved insulation with greater resistance to water penetration
- Power: Passive component, no power required
- Replaces: AIR-420-003346-020
FAQs
Q: Which connectors does this cable use?
A: It has one RP-TNC plug and one RP-TNC jack. RP-TNC connectors do not mate with standard TNC connectors, so check the connector type on your access point and antenna before ordering.
Q: What is it compatible with?
A: It is for Cisco Aironet access points and antennas that use RP-TNC connectors. It can also be used with the Cisco Aironet lightning arrestor AIR-ACC245LA-R, which uses RP-TNC connectors.
Q: How much signal loss does this cable have?
A: Loss is 1.3 dB at 2.4 GHz and 2.5 dB at 5.8 GHz. This is lower than a standard interconnect cable, but it is still best to keep low-loss cable runs as short as the installation allows.
Q: Does this cable need power?
A: No. It is a passive component and requires no power.
Q: Can it be used outdoors?
A: Yes. It is outdoor-rated, with improved insulation that is far less susceptible to water penetration than previous cables.
Q: Does it replace an older Cisco cable?
A: Yes. It is the suggested replacement for the end-of-life 20 ft cable AIR-420-003346-020, which also uses RP-TNC connectors.
