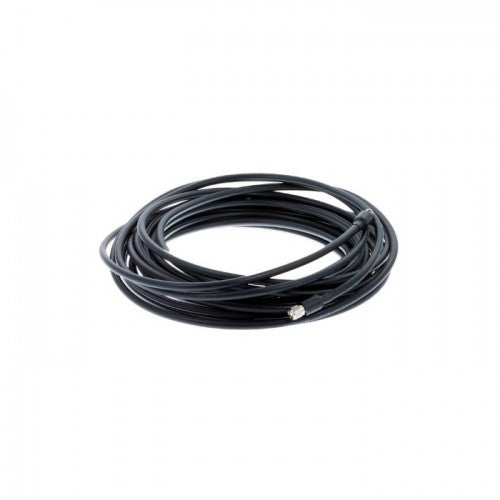

Cisco AIR-CAB010LL-R | Aironet Low-Loss RF Cable, 10 ft, RP-TNC Plug/Jack
SKU:AIR-CAB010LL-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco Aironet low-loss RF coaxial cable is a 10 ft (3 m), 50-ohm cable from the Aironet 400 Series Low Loss range. It is used to mount an RP-TNC antenna away from a Cisco Aironet 2.4 GHz or 5 GHz radio, for example to place the antenna in a better RF location than the access point or bridge itself.
This -R variant is terminated with one RP-TNC plug on one end and one RP-TNC jack on the other. Attenuation is rated at 10.8 dB per 100 ft (35.5 dB per 100 m) at 5.8 GHz, with typical loss of about 6.7 dB per 100 ft in the 2.4 GHz band. The construction uses a copper clad aluminium inner conductor, foam polyethylene dielectric and an aluminium tape outer conductor.
It is a passive component and needs no power. It works with Cisco Aironet 2.4 GHz and 5 GHz radios and antennas that use RP-TNC connectors. The -N variant, AIR-CAB010LL-N, uses N connectors instead, so confirm the connector type on both your radio and antenna before choosing.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Extends the distance between a Cisco Aironet 2.4 GHz or 5 GHz radio and an RP-TNC antenna
- Much lower loss than standard interconnect cable, so the antenna can sit away from the radio
- Allows flexible antenna placement without a significant sacrifice in range
- Passive cable with no power or configuration required
- RP-TNC plug and RP-TNC jack termination for direct inline connection
- Keep the cable run to the minimum length needed to limit signal loss
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: AIR-CAB010LL-R
- Cable series: Aironet 400 Series Low Loss
- Length: 10 ft (3 m)
- Connector A: RP-TNC plug
- Connector B: RP-TNC jack
- Impedance: 50 ohm
- Attenuation at 5.8 GHz: 10.8 dB/100 ft (35.5 dB/100 m)
- Typical loss (2.4 GHz band): 6.7 dB per 100 ft (30 m)
- Inner conductor: Copper clad aluminium
- Dielectric: Foam polyethylene
- Outer conductor: Aluminium tape
- Power: Passive, no power required
FAQs
Q: What connectors does AIR-CAB010LL-R use?
A: It has one RP-TNC plug on one end and one RP-TNC jack on the other. The -N variant, AIR-CAB010LL-N, uses N connectors instead.
Q: What does this cable connect?
A: It connects a Cisco Aironet 2.4 GHz or 5 GHz radio or access point to an antenna that has RP-TNC connectors, letting you mount the antenna at a distance from the radio.
Q: Does the cable need power or configuration?
A: No. It is a passive component, so there is nothing to power or configure.
Q: How does signal loss affect cable length?
A: Loss is about 6.7 dB per 100 ft in the 2.4 GHz band and 10.8 dB per 100 ft at 5.8 GHz. At 10 ft the loss is small, but it is best to use the shortest run that suits your installation.
Q: How does this differ from the ultra-low-loss cables?
A: This is part of the 400 Series Low Loss family. The ultra-low-loss series (AIR-CABxxxULL-y) is a separate cable family with lower attenuation.
