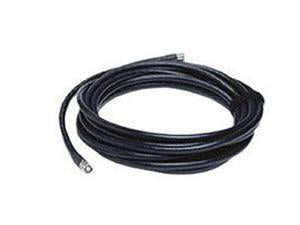

Cisco AIR-CAB005LL-R-N | Aironet Low-Loss Antenna Cable, 5 ft, RP-TNC to N
SKU:AIR-CAB005LL-R-N
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 5-foot low-loss coaxial cable is part of the Cisco Aironet antennas and accessories range. It connects an Aironet 2.4 GHz or 5 GHz radio or access point with RP-TNC antenna connectors to an external antenna or other N-type equipment, for both indoor and outdoor runs.
One end is a straight RP-TNC plug and the other is a 90-degree (right-angle) N-type male connector, which helps in tight spaces behind enclosures and mounting plates. Loss is 0.5 dB at 2.4 GHz and 0.8 dB at 5.8 GHz over the 5 ft length, with a 50 ohm impedance. The cable is LMR-240 type construction, direct-burial rated, with a black polyethylene jacket and a tinned copper or aluminium braid.
It is a passive component and needs no power. It suits Aironet radios and access points that use RP-TNC antenna connectors, such as the Aironet 1140 Series, paired with N-type antennas or accessories.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Low-loss design extends the distance between the radio and the antenna without a significant loss of range
- Jacket designed for better protection against water penetration in outdoor installations
- Right-angle N-type male connector helps in tight spaces
- Works with 2.4 GHz and 5 GHz Aironet radios that use RP-TNC connectors
- Direct-burial rated construction suits outdoor cable runs
- Wide installation temperature range of -40 to 85 C
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cable length: 5 ft
- Cable type: Low-loss interconnect (Aironet 400 Series LL class)
- Connector (end A): N-type male, 90-degree (right-angle)
- Connector (end B): RP-TNC plug, straight
- Loss at 2.4 GHz: 0.5 dB
- Loss at 5.8 GHz: 0.8 dB
- Impedance: 50 ohms
- Construction: LMR-240 type, outdoor direct-burial (DB)
- Conductor: Copper
- Overall braid: Tinned copper or aluminium
- Jacket: Black polyethylene
- Installation temperature range: -40 to 85 C (-40 to 185 F)
- Power: Passive, no power required
FAQs
Q: Which connectors does this cable have?
A: One end is a straight RP-TNC plug and the other is a 90-degree (right-angle) N-type male connector.
Q: What equipment does it connect?
A: It links Cisco Aironet 2.4 GHz and 5 GHz radios and access points that use RP-TNC antenna connectors, such as the Aironet 1140 Series, to N-type antennas or accessories.
Q: Does it need power or a licence?
A: No. It is a passive coaxial cable, so it needs no power and no licence.
Q: How much signal loss should I expect?
A: Loss over the 5 ft length is 0.5 dB at 2.4 GHz and 0.8 dB at 5.8 GHz.
Q: Can it be used outdoors?
A: Yes. It uses direct-burial rated LMR-240 type construction with a jacket designed to resist water penetration, and has an installation temperature range of -40 to 85 C.
