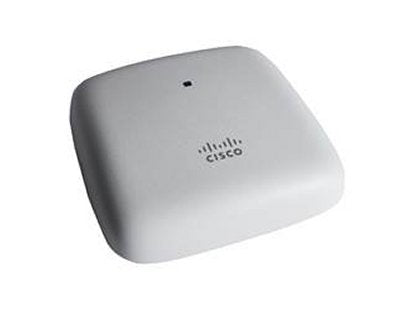

• Cisco AIR-AP1815I-Z-K9 Wi-Fi 5 access point, sleek white-gray square design
1 1

Cisco

Cisco AIR-AP1815I-Z-K9 | Aironet 1815i Wi-Fi 5 Access Point, Z Domain, K9

AIR-AP1815I-Z-K9

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1815i is a dual-band, controller-based 802.11ac Wave 2 (Wi-Fi 5) indoor access point with internal antennas. It suits small and medium-sized enterprise networks, remote workers and micro-offices, and indoor deployments that need an entry-level Wi-Fi 5 Wave 2 access point. It can also act as an OfficeExtend Access Point for remote sites.

This SKU is the Z regulatory domain (ANZ) controller-based K9 variant. It uses a 2x2:2 MU-MIMO design with two spatial streams, delivering up to 867 Mbps on 5 GHz and an aggregate dual-radio rate of up to 1 Gbps. It supports up to 400 clients per access point (200 per radio) and has a single 10/100/1000BASE-T RJ-45 port with PoE, plus an RJ-45 console port. Internal antennas provide 2 dBi on 2.4 GHz and 4 dBi on 5 GHz. It runs on 802.3af/at PoE with a maximum draw of 8.3 W. Cisco DNA software subscriptions are required to join a Catalyst 9800 Series controller.

It works with Cisco 2500, 3500, 5500, Flex 7500, 8500 and Catalyst 9800 Series Wireless Controllers, WiSM2 and the ISR G2 controller module, running AireOS 8.3.112.0/83MR1 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 802.11ac Wave 2 with MU-MIMO, serving multiple Wave 2 clients simultaneously
- Simultaneous dual-radio, dual-band operation on 2.4 GHz and 5 GHz
- Integrated Bluetooth Low Energy 4.1 radio for location and asset tracking (future availability)
- Can act as an OfficeExtend Access Point (OEAP) for remote workers and micro-offices
- Small form factor with ceiling or wall mounting
- Full operation on 802.3af PoE
- Supports Cisco DNA Center features such as the Wi-Fi 6 readiness dashboard and Cisco User Defined Network

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Standards: IEEE 802.11a/b/g, 802.11n, 802.11ac Wave 2, 802.11h, 802.11d
- Radios: dual-band, dual-radio, 2.4 GHz and 5 GHz
- MIMO: 2x2 SU/MU-MIMO with two spatial streams, MRC, 20/40/80 MHz channels
- Maximum PHY data rate: up to 866.7 Mbps on 5 GHz (80 MHz)
- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
- Maximum clients: 200 per radio, 400 per access point
- Regulatory domain: Z (Australia and New Zealand)
- 2.4 GHz channels: 2.412 to 2.462 GHz, 11 channels
- 5 GHz channels: 5.180-5.320 GHz (8), 5.500-5.700 GHz (8, excluding 5.600-5.640 GHz), 5.745-5.825 GHz (5)
- Transmit power: 20 dBm (100 mW) down to -1 dBm (0.78 mW) on both bands
- Antennas: internal, 2 dBi on 2.4 GHz, 4 dBi on 5 GHz
- Bluetooth: Bluetooth 4.1 (BLE), 4 dBm maximum transmit power, 2 dBi antenna gain (future availability)
- Interfaces: 1 x 10/100/1000BASE-T autosensing RJ-45 with PoE, RJ-45 management console port
- Indicators: status LED
- System: 1 GB DRAM, 256 MB flash, 710 MHz quad core
- Power: 802.3af/at PoE, 8.3 W maximum draw
- Dimensions: 150.8 x 150.8 x 33 mm (W x L x H), without mounting bracket
- Weight: 400 g, without mounting bracket
- Operating temperature: 0 to 40 C, 10-90% non-condensing humidity
- Storage temperature: -30 to 70 C, 10-90% non-condensing humidity
- Software: AireOS Wireless Controller Release 8.3.112.0/83MR1 or later
- Security: WPA3, WPA2, WPA, 802.11i, 802.11r, 802.1X, AES, RADIUS AAA

FAQs

Q: Does this access point need a licence or subscription?
A: This is a controller-based K9 SKU. Cisco DNA software subscriptions (DNA Essentials or DNA Advantage, 3-, 5- or 7-year terms) are required to connect to a Catalyst 9800 Series controller. The perpetual Network Essentials or Network Advantage features remain after the subscription expires. No licence is included in the hardware SKU itself.

Q: How is the access point powered?
A: It runs on 802.3af/at PoE from a switch, or from an optional AIR-PWRINJ5= or AIR-PWRINJ6= power injector. Maximum draw is 8.3 W on PoE.

Q: Which controllers does it work with?
A: It works with Cisco 2500, 3500, 5500, Flex 7500, 8500 and Catalyst 9800 Series Wireless Controllers, WiSM2 and the ISR G2 controller module. It requires AireOS 8.3.112.0/83MR1 or later.

Q: What does the Z regulatory domain mean?
A: Z is the regulatory domain for Australia and New Zealand. It enables 11 channels on 2.4 GHz and 8 + 8 + 5 channels across the 5 GHz bands.

Q: Can it be used without a controller?
A: This K9 SKU is controller-based. Mobility Express controller-less operation applies to the K9C variants, not to this part number.
