Cisco 5G-ANTM-BRACKET | 5G/LTE Antenna Indoor/Outdoor Wall-Mount L-Bracket

SKU:5G-ANTM-BRACKET

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This L-shaped metal wall-mount bracket is an antenna mounting accessory for the Cisco 5G-ANTM-O-4-B multi-element 9-in-1 LTE/Wi-Fi/GNSS antenna. It suits indoor and outdoor installations where the antenna needs to be fixed to a wall, such as drywall, wood or stud walls indoors, or brick and concrete walls outdoors.

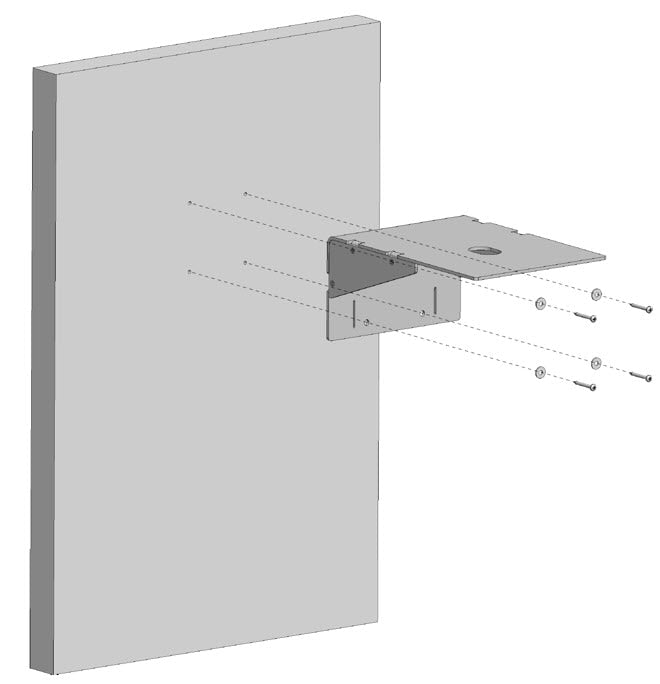

The antenna stud passes through the bracket's horizontal plate and is secured with a slotted lock-nut, with the antenna mounting hole sized for 1.00 to 1.06 in diameter. The bracket itself is fixed to the wall using four screws on a square pattern at 2.75 in (approx. 69.9 mm) spacing. Indoor drywall mounting uses plastic wall plugs, 30 mm ST3.5 pan-head screws and washers, with 5 mm pilot holes at least 35 mm deep. Outdoor brick or concrete mounting uses 3/16 in hex washer-head concrete screws of 1-1/4 in or longer. The antenna lock-nut should be tightened to a minimum of 14 Nm.

This is a passive mechanical accessory and needs no power. It lets the antenna cable run through the bracket plate and wall to an indoor router, and it is also listed for use with Cisco IR1101 industrial routers. For ceiling mounting, the separate 5G-ANTM-GD ground disc is used instead.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wall-mounts the 5G-ANTM-O-4-B antenna indoors on drywall, wood or stud walls
- Supports outdoor wall mounting on brick or concrete
- Single L-shaped bracket design covers both indoor and outdoor installations
- Antenna stud passes through the horizontal plate for a secure fixing
- Allows the antenna cable to run through the wall to an indoor router
- Passive metal bracket with no power or configuration required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: L-shape antenna mounting bracket
- Mounting: Wall mountable, indoor and outdoor
- Mounting hole pattern: 4 holes at 2.75 in (approx. 69.9 mm) spacing, square pattern
- Construction: Metal
- Supported antenna: Cisco 5G-ANTM-O-4-B 9-in-1 LTE/Wi-Fi/GNSS antenna
- Antenna mounting hole: 1.00 to 1.06 in diameter, stud mount with 1 in UNS thread and slotted lock-nut
- Antenna lock-nut torque: 14 Nm (10.5 lbft) minimum
- Indoor drywall fixing: 4x plastic wall plugs, 4x 30 mm ST3.5 pan-head screws, 4x 12 mm OD / 1 mm washers
- Indoor drywall pilot holes: 5 mm diameter, minimum 35 mm deep
- Indoor wood or stud fixing: 4x 30 mm ST3.5 pan-head screws, 4x 12 mm OD / 1 mm washers
- Outdoor brick or concrete fixing: 3/16 in hex washer-head concrete screws, 1-1/4 in or longer
- Power: Passive mechanical accessory, no power required

FAQs

Q: Which antenna does this bracket mount?
A: It is the wall-mount accessory for the Cisco 5G-ANTM-O-4-B multi-element 9-in-1 LTE/Wi-Fi/GNSS antenna.

Q: Can it be used outdoors?
A: Yes. It supports outdoor wall mounting on brick or concrete using 3/16 in hex washer-head concrete screws of 1-1/4 in or longer. The antenna is then cabled through an access hole in the wall to an indoor router.

Q: What is the mounting hole spacing?
A: The bracket has four mounting holes in a square pattern at 2.75 in (approx. 69.9 mm) spacing.

Q: Is it suitable for ceiling mounting?
A: No. This bracket is for wall mounting. Ceiling mounting of the antenna uses the separate 5G-ANTM-GD ground disc.

Q: Does it work with Cisco IR1101 routers?
A: It is listed for use with the antenna that connects to Cisco IR1101 industrial routers, including IR1101-A-K9 and IR1101-K9 variants.
