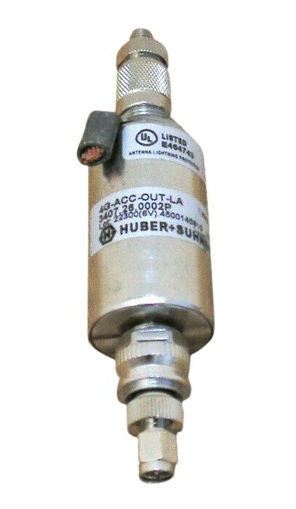

Cisco 4G-ACC-OUT-LA | 4G/LTE Lightning Arrestor, TNC, 50 Ohm, 698-2700 MHz
SKU:4G-ACC-OUT-LA
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This in-line coaxial lightning arrestor is an accessory for Cisco 4G/LTE wireless WAN devices. It shunts over-voltage transients from lightning, static discharge, switching and power-line contact to ground, protecting the connected router or interface card and the people using it. It suits outdoor 4G/LTE antenna runs on Cisco 4G routers and interface cards.
It is a passive quarter wave high pass filter design with a 50 ohm impedance and a 698 MHz to 2700 MHz frequency range. Insertion loss is below 0.1 dB and return loss is better than 26 dB. Surge current handling is 20 kA single and 10 kA multiple (8/20 µs test pulse). RF CW power handling is below 20 W and no power supply is needed. The housing is IP67 rated brass with a gold-plated brass centre contact, and it operates from -40 to 85 C. Connectors are a TNC jack on the unprotected antenna side and a TNC plug on the protected device side.
It works with Cisco 4G wireless devices and with antennas and cables that use standard TNC connectors. Install it in series between the outdoor antenna cable and the cable entering the building, bulkhead-mounted to a well-grounded panel as close as possible to the cable entry point.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Shunts over-voltage transients from lightning, static discharge, switching and power-line contact to ground
- Limits the amplitude and duration of interference voltages and improves the overvoltage resistance of in-line equipment
- Suitable for indoor or outdoor use on coaxial communication loop circuits isolated from the PSTN
- Installed in series between the outdoor antenna cable and the cable entering the building
- IP67 rated brass housing with a gold-plated centre contact
- Passive design with no power supply required
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Arrestor type: Quarter wave high pass filter
- Impedance: 50 ohm
- Frequency range: 698 MHz to 2700 MHz
- Unprotected side connector: TNC jack (female)
- Protected side connector: TNC plug (male)
- Insertion loss: < 0.1 dB
- Return loss: > 26 dB
- RF CW power: < 20 W
- Surge current handling: 20 kA single / 10 kA multiple (8/20 µs test pulse)
- Residual pulse energy: 0.03 microjoules typically (4 kV 1.2/50 µs; 2 kA 8/20 µs test pulse)
- Waterproof rating: IP67
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Mounting and grounding: Bulkhead
- Alternate grounding: Supplied ground lug and customer-provided 6 AWG ground wire, 0.5 m (20 inches) maximum length
- Housing material: Brass
- Centre contact: Gold-plated brass
FAQs
Q: Does the lightning arrestor need power?
A: No. It is a passive device and needs no power supply. RF CW power handling is below 20 W.
Q: Which connectors does it use?
A: It has a TNC jack (female) on the unprotected antenna side and a TNC plug (male) on the protected device side.
Q: Where should it be installed?
A: Install it in series between the outdoor antenna cable and the cable entering the building, as close as possible to the cable entry point, either just outside or just inside. Bulkhead-mount it to a well-grounded panel.
Q: What does it work with?
A: It is designed for Cisco 4G wireless devices and for antennas and cables that use standard TNC connectors. A high-quality, low-loss coaxial cable is recommended.
Q: How is it grounded?
A: It is bulkhead-mounted for grounding. Alternatively, use the supplied ground lug with a customer-provided 6 AWG ground wire, 0.5 m (20 inches) maximum length.
