Aruba S0U65A | CX 5420 8-Port 10G Smart Rate Module, Class 8 PoE 90W
SKU:S0U65A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The CX 5420 8-port Smart Rate module is a plug-in line card for the modular Aruba CX 5420 6-slot chassis. It suits access, small core and aggregation deployments in enterprise campus and branch networks, where multi-gigabit PoE ports are needed to power high-draw devices such as Wi-Fi 6/6E/7 access points, IoT devices and other 802.3bt endpoints.
The module provides 8 RJ-45 Smart Rate ports that run at 1G, 2.5G, 5G or 10GBASE-T, each with Class 8 PoE at up to 90W per port. It supports IEEE 802.3af, 802.3at and 802.3bt PoE standards. Total PoE availability depends on the number of power supplies, line cards, management modules and fan trays installed in the chassis. The module measures 214.7 x 212.2 x 45.15 mm, weighs 0.76 kg and uses front-to-back airflow.

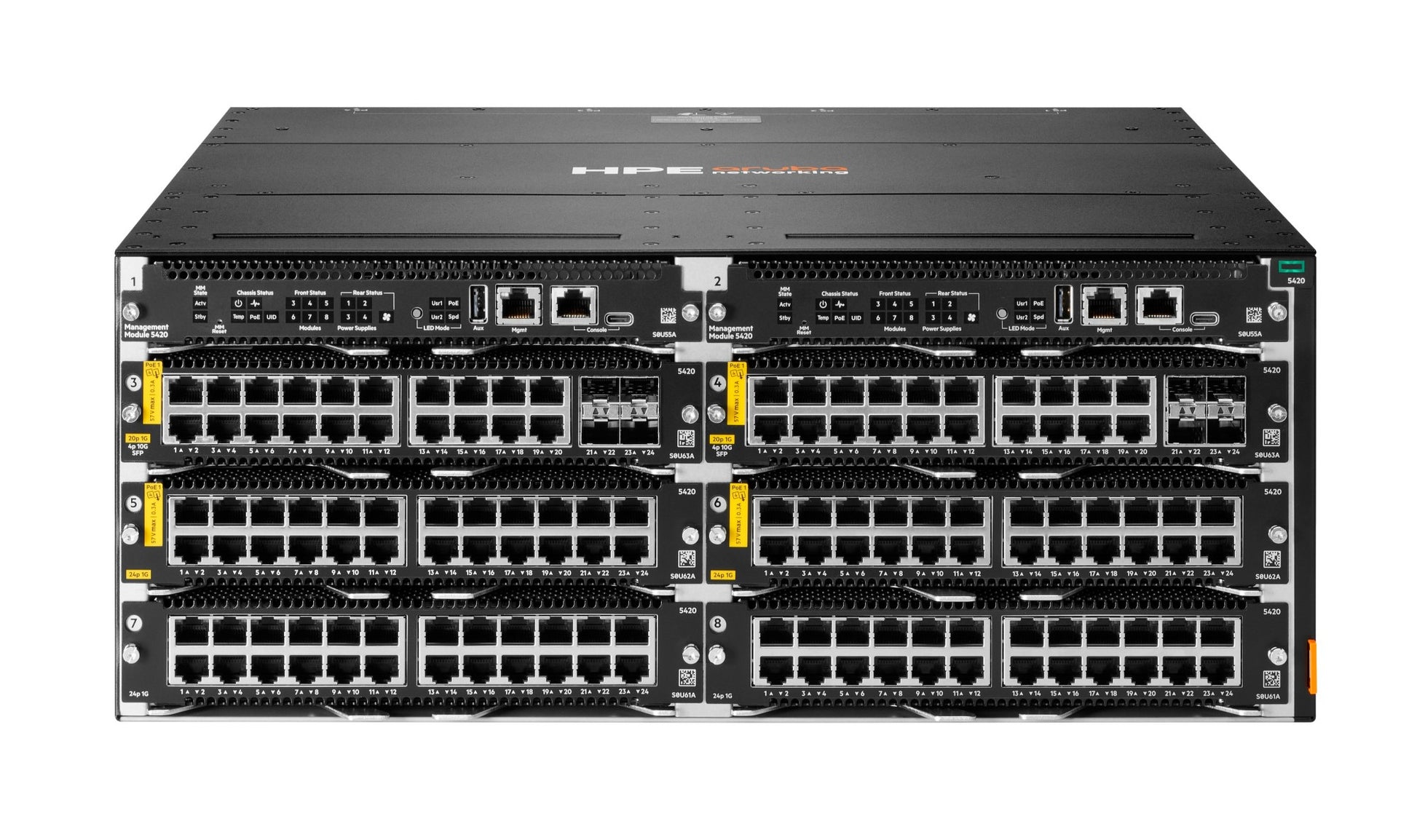

It fits the open line-card slots of the CX 5420 6-slot switch (S0U59A) and 6-slot chassis (S0U60A), and requires a 5420 Management Module (S0U55A) and Fan Tray (S0U54A). The module needs no licence of its own and runs on the chassis with the embedded CX Foundation software licence.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Smart Rate multi-gigabit 10GbE with up to 90W Class 8 PoE per port
- Runs AOS-CX with Network Analytics Engine (NAE) for monitoring and troubleshooting
- Hardware-capable IEEE 802.1AE MACsec on uplink and downlink ports (software support in future releases)
- Dynamic Segmentation extends role-based policy from wireless to wired
- VSX live upgrades for high availability, with redundant power supplies and N+1 fans on the chassis
- Management via Aruba Central or HPE Mist
- Energy Efficient Ethernet (802.3az) and pre-standard PoE detection for legacy PoE devices
- Auto-MDIX on 10/100/1000, Smart Rate and 10GBASE-T ports
- Field-replaceable line card
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 8 x 1G/2.5G/5G/10GBASE-T Smart Rate RJ-45 (PoE++)
- PoE: Class 8, up to 90W per port
- PoE standards: IEEE 802.3af, 802.3at, 802.3bt
- Form: plug-in line card for CX 5420 6-slot chassis (S0U59A / S0U60A)
- Module dimensions (H x W x D): 45.15 x 214.7 x 212.2 mm
- Module weight: 0.76 kg
- Airflow: front to back
- Software: AOS-CX, Layer 3 managed
- Forwarding per slot (chassis): up to 160 Gb/s, line rate at 64 bytes
- Chassis switching capacity: 960 Gbps
- Chassis throughput: 714 Mpps
- Chassis average latency (64-byte): 2.5 microseconds
- Chassis packet buffer: 64MB shared dynamically among ports
- Chassis MAC table: 32,768 entries
- Chassis IPv4 / IPv6 unicast routes: 16,384 / 8,192
- Chassis operating temperature: 0 to 45 C
- Chassis operating relative humidity: 5% to 95% at 45 C, non-condensing
- Chassis non-operating temperature: -40 to 70 C
- Compatible power supply: S0U53A 1600W AC
- Emissions: Class A (FCC Part 15B, EN 55032, AS/NZS CISPR 32)
FAQs
Q: Does this module need its own licence?
A: No. The module runs on the chassis and management module with the embedded CX Foundation software licence. The optional CX 54XX Advanced Feature Pack subscription adds advanced visibility and security.
Q: Which chassis and components does it work with?
A: It fits the open line-card slots of the CX 5420 6-slot switch (S0U59A) and 6-slot chassis (S0U60A). It needs a 5420 Management Module (S0U55A) and Fan Tray (S0U54A).
Q: How is PoE power supplied to the module?
A: The module draws power from the chassis, which supports up to 4 hot-swappable S0U53A 1600W AC power supplies. Total PoE budget depends on the number of power supplies, line cards, management modules and fan trays installed.
Q: How does it differ from the other CX 5420 modules?
A: This is the 8-port Smart Rate module with Class 8 PoE at up to 90W per port. S0U66A offers 16 Smart Rate ports with Class 6 PoE, S0U62A offers 24 1G ports with Class 4 PoE, and S0U68A provides 8 SFP+ ports.
Q: Is there a TAA-compliant version?
A: Yes, the TAA equivalent of this module is S0U75A.
