Aruba S0U64A | CX 5420 20-Port PoE+ Line Card, 2x SFP28 1G/10G/25G
SKU:S0U64A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

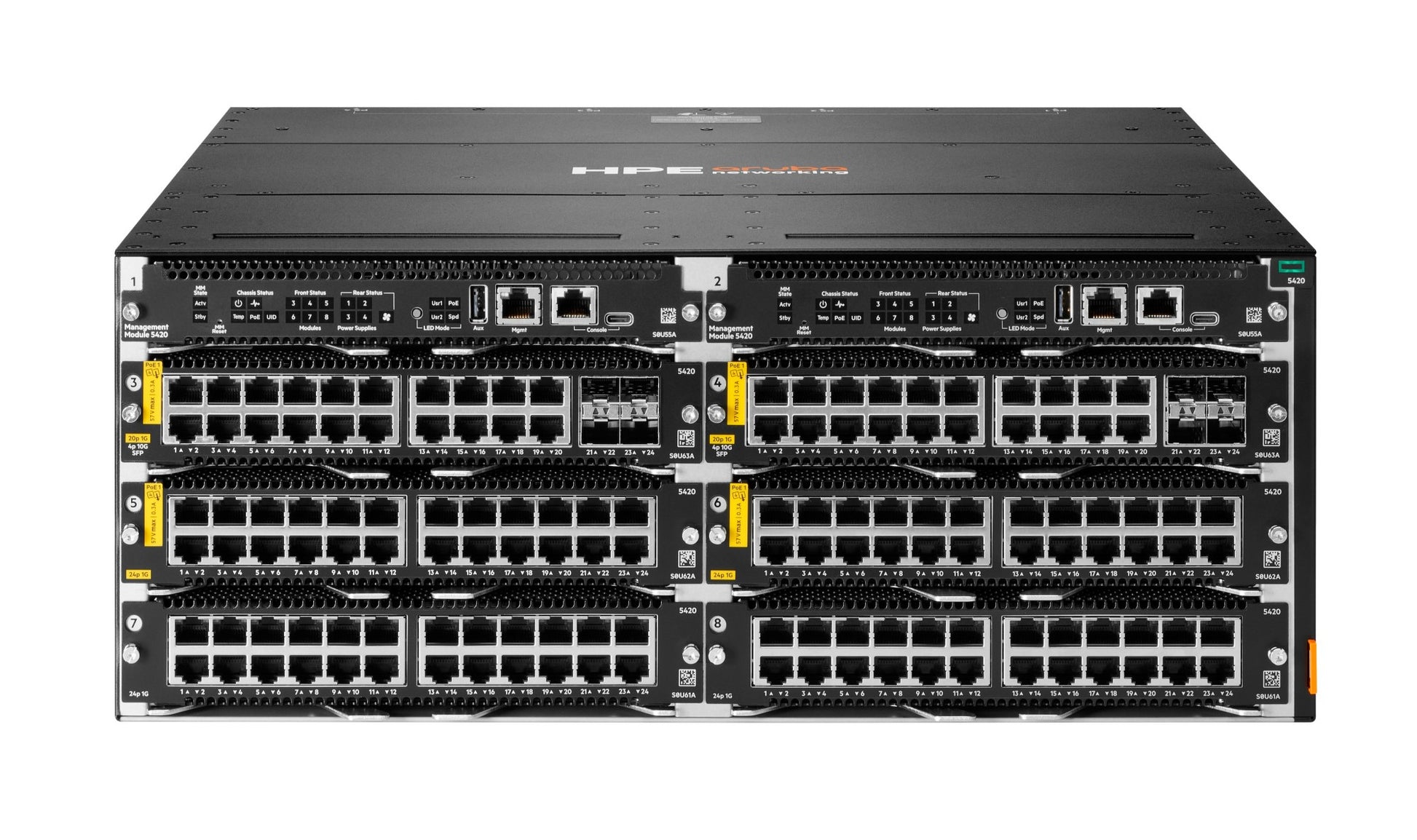

This line card is built for the CX 5420 6-slot modular chassis switch. It provides 20 Class 4 PoE+ 10/100/1000BASE-T ports plus two SFP28 uplink ports, suiting access, small-core and aggregation roles in small and medium campus and branch networks.
Each of the 20 RJ-45 ports delivers up to 30W of PoE+ (IEEE 802.3af/at), powered from the chassis PSU pool. The two SFP28 ports run at 1G, 10G or 25G depending on the transceiver or cable fitted. Maximum module bandwidth is 70 Gb/s. The module itself draws 35W worst case, excluding PoE delivery, and weighs 0.82 kg.
The module installs in line card slots 3 to 8 of the CX 5420 chassis and works with the CX 5420 1600W AC power supply S0U53A and a CX 5420 management module. The SFP28 ports accept 25G SFP28 optics such as JL484A (SR) and JL486A (LR), 25G DAC/AOC cables, and 10G SFP+ and 1G SFP optics.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Modular line card for the CX 5420 6-slot Layer 3 chassis
- Class 4 PoE+ on all 20 copper ports for access points, phones and cameras
- SFP28 uplinks for 1G, 10G or 25G connectivity
- MACsec hardware capability on the CX 5420 chassis, on uplink and downlink ports
- AOS-CX operating system with Network Analytics Engine and built-in REST API
- Energy Efficient Ethernet (IEEE 802.3az) and pre-standard PoE detection support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Module type: Line module for CX 5420 6-slot chassis (slots 3 to 8)
- Access ports: 20 x 10/100/1000BASE-T RJ-45
- PoE: Class 4 (up to 30W per port) on ports 1 to 20
- PoE standards: IEEE 802.3af/at
- Uplink ports: 2 x SFP28 (1G/10G/25G)
- SFP28 speeds: 25GbE and 10GbE with accessories, 1GbE with SFP optics
- Maximum module bandwidth: 70 Gb/s
- Module power consumption: 35W worst case, excluding PoE delivery
- Dimensions (W x D x H): 214.7 x 212.2 x 45.15 mm
- Weight: 0.82 kg
- Chassis operating temperature: 0 to 45 C
- Chassis primary airflow: Front to back
FAQs
Q: Does this module need a licence?
A: The embedded CX Foundation licence is included and active. You can upgrade to the term-based CX Advanced licence or the CX 54XX Advanced Feature Pack subscription for deeper visibility and advanced security.
Q: What power supply does the chassis need for PoE?
A: The CX 5420 1600W AC power supply S0U53A is required, and the chassis takes up to four. The PoE budget is the excess PSU power remaining after system and module allocation.
Q: Which chassis and slots does it fit?
A: It installs in line module slots 3 to 8 of the CX 5420 6-slot chassis (S0U59A, S0U60A and TAA versions). A CX 5420 management module (S0U55A or S0U58A) is also required.
Q: Which optics work in the SFP28 ports?
A: The ports accept HPE Aruba Networking 25G SFP28 transceivers such as JL484A (SR) and JL486A (LR), 25G DAC/AOC cables, and 10G SFP+ and 1G SFP optics.
Q: Is there a TAA-compliant version?
A: Yes, the TAA-compliant equivalent of this module is S0U74A.
