Aruba S0U62A | CX 5420 24-Port Gigabit PoE+ Switch Module, Class 4
SKU:S0U62A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The CX 5420 24-port Gigabit PoE+ module is a line card for the CX 5420 6-slot modular chassis. It adds PoE-capable edge access ports to a Layer 3 chassis running AOS-CX, which suits enterprise campus and branch networks that need to power IP phones, wireless access points and cameras from a single modular platform.
The module provides 24 x 10/100/1000 RJ-45 ports with Class 4 PoE (IEEE 802.3at, up to 30W per port). It has no uplink ports of its own, so transceivers are installed in other modules in the same chassis. The chassis forwards up to 160 Gb/s per line card slot, and PoE availability depends on the number of management modules, line cards, fan trays and power supplies installed.

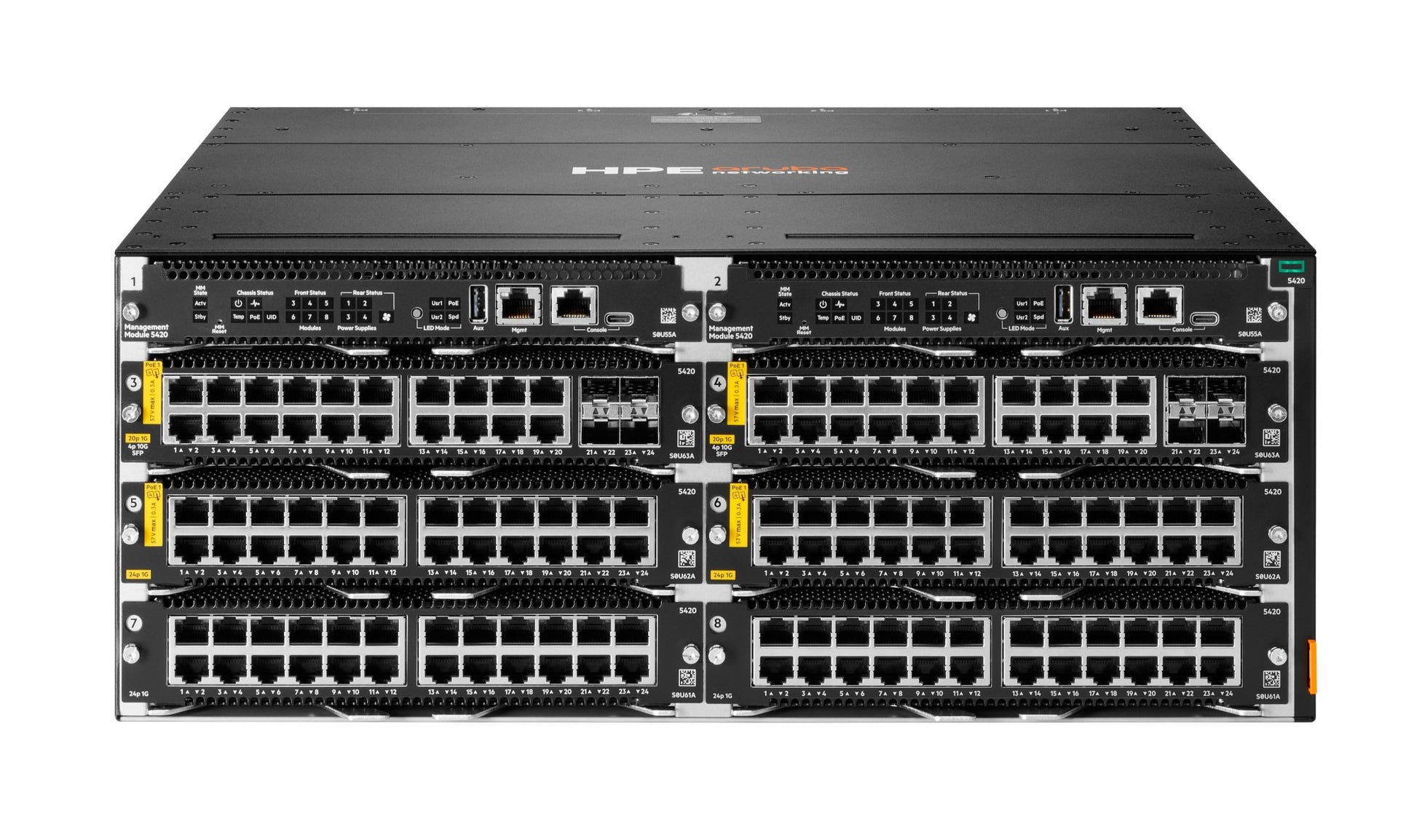

It installs in any of the six line card slots in the CX 5420 6-slot Switch (S0U59A) or 6-slot Chassis (S0U60A) and requires a CX 5420 Management Module (S0U55A or S0U58A). Power comes from the chassis, using S0U53A power supplies. The base AOS-CX feature set needs no licence, and the optional Advanced Feature Pack subscription adds CX Edge Insights, application-based policy and Reflexive ACL.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Modular Layer 3 chassis platform with BGP, OSPF, RIP, PIM, VSX and robust QoS
- Runs AOS-CX with Network Analytics Engine (NAE)
- VSX live upgrades, redundant power supplies and N+1 redundant fans in the chassis
- Line rate at 64 bytes with up to 160 Gb/s forwarding per slot
- Management via HPE Aruba Networking Central or HPE Mist
- Dynamic Segmentation extends role-based policy to wired access
- Multi-Edit automation for configuration and verification
- Integrated trusted platform module (TPM) for platform integrity
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Module type: I/O line card
- Ports: 24 x 10/100/1000 RJ-45
- PoE standard: Class 4, IEEE 802.3at (up to 30W per port)
- Uplink ports: None
- Host chassis: CX 5420 6-slot Switch (S0U59A) or 6-slot Chassis (S0U60A)
- Line card slots in chassis: 6 half-width slots
- Forwarding per line card slot: up to 160 Gb/s
- Required management module: S0U55A or S0U58A
- Supported power supply: S0U53A (1600W at 200-240VAC, 1000W at 100-127VAC), 4 PSU slots
- Chassis switching capacity: 960 Gbps
- Chassis throughput: 714 Mpps
- Chassis packet buffer: 64MB shared dynamically among ports
- Chassis MAC table capacity: 32,768
- Chassis operating temperature: 0 to 45 C
- Chassis dimensions (H x W x D): 17.41 x 44.25 x 44.74 cm (4U)
- Primary airflow: Front to back
FAQs
Q: Does this module need a licence?
A: No licence is required for the base AOS-CX feature set. The optional Advanced Feature Pack subscription unlocks CX Edge Insights, application-based policy and Reflexive ACL.
Q: Which chassis does the S0U62A fit?
A: It fits any of the six line card slots in the CX 5420 6-slot Switch (S0U59A) and 6-slot Chassis (S0U60A). The chassis also needs a CX 5420 Management Module (S0U55A or S0U58A).
Q: How is the module powered, and how much PoE does it deliver?
A: It is powered from the chassis using S0U53A power supplies, up to four per chassis. Each port provides Class 4 PoE (802.3at, up to 30W), and the total PoE available depends on the management modules, line cards, fan trays and power supplies installed.
Q: Does it have SFP uplink ports?
A: No. This module has 24 RJ-45 ports only. Transceiver ports are provided by other CX 5420 modules such as S0U67A, S0U68A, S0U63A or S0U64A.
Q: How does it differ from other CX 5420 line cards?
A: This is the 24-port 10/100/1000 Class 4 PoE (802.3at) version. A TAA-compliant sibling is available as S0U72A.
