Aruba

Aruba S0U61A | CX 5420 24-Port Gigabit Line Card, Non-PoE, RJ45

SKU:S0U61A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

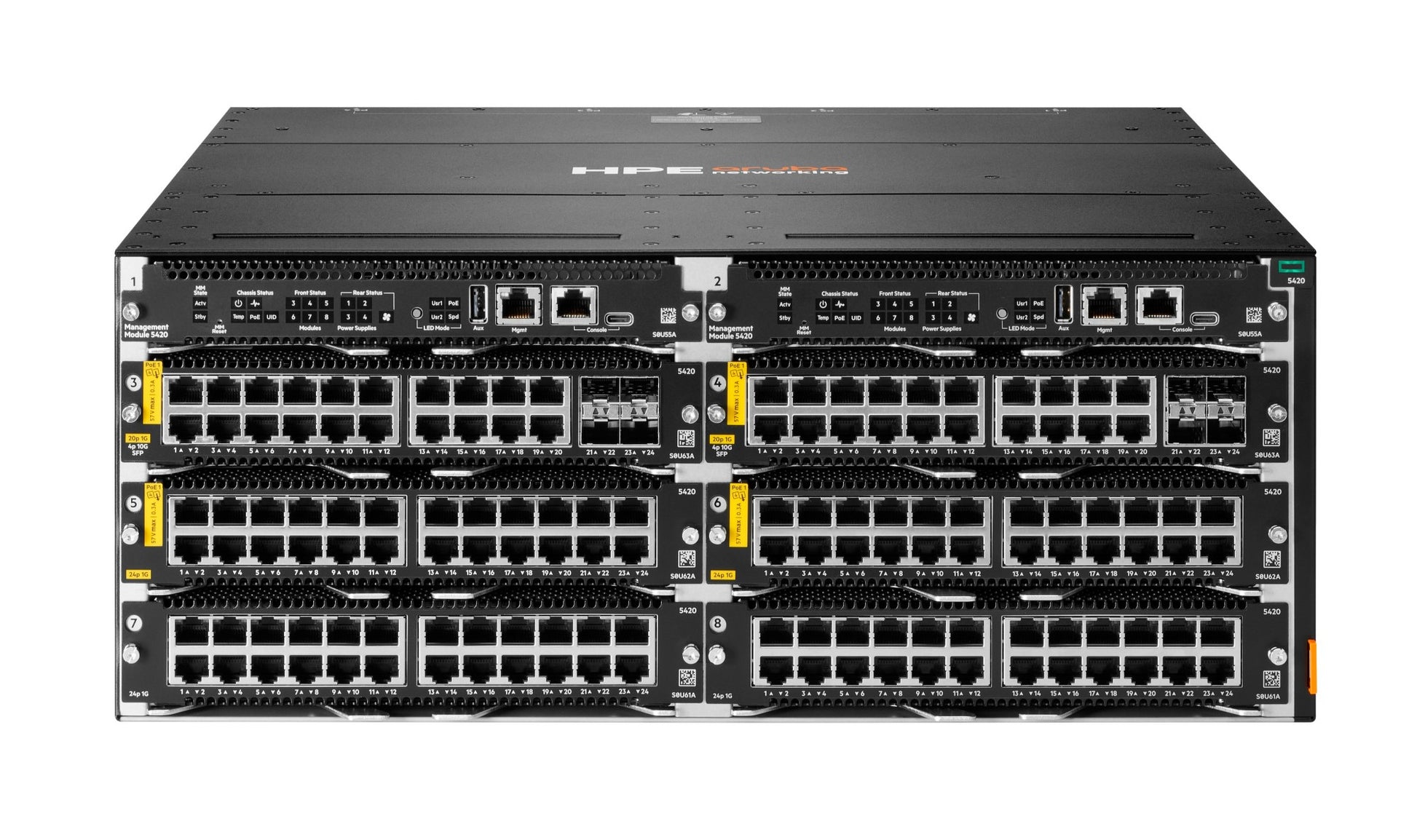

The S0U61A is a 24-port 10/100/1000BASE-T RJ-45 line card for the modular 6-slot Aruba CX 5420 Layer 3 chassis. It suits access and aggregation layer connectivity in small and medium campus and branch enterprise networks where non-PoE Gigabit copper ports are needed in a modular chassis.

This variant provides 24 RJ-45 ports with no PoE and no uplink ports, and uses front-to-back airflow. It is built on the Gen7 ASIC architecture and runs under the AOS-CX operating system, with up to 160 Gb/s of forwarding per line card slot. The module is hot-swappable and fits a half-width slot in the 4U chassis. It draws its power from the chassis, so it does not need a separate supply.

The module is intended only for the CX 5420 6-slot chassis, alongside the chassis management modules, S0U54A fan tray and S0U53A 1600W AC power supplies. It has no SFP ports. The Class 4 PoE version of this module is S0U62A.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Gen7 ASIC architecture for low latency, increased packet buffering and adaptive power consumption
- Built-in MACsec hardware capability on the CX 5420 platform, with software support in future releases
- Network Analytics Engine (NAE) for monitoring, troubleshooting and automation
- VSX Live Upgrade for high availability
- Fully programmable AOS-CX operating system with REST API
- Layer 2 and Layer 3 features including OSPF, ECMP, VRRP, LACP, RSTP, MSTP and static IPv4/IPv6 routing
- Role-based segmentation and policy enforcement through dynamic segmentation
- Support for IEEE 802.3az Energy Efficient Ethernet

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: S0U61A
- Interfaces: 24 x 10/100/1000BASE-T RJ-45
- PoE: None (non-PoE variant)
- Uplink ports: None
- Device type: Switch module, Layer 3, managed
- Form factor: Plug-in module (1U half-width slot)
- Airflow: Front to back
- Forwarding per line card slot: up to 160 Gb/s, line rate at 64 bytes
- ASIC architecture: Gen7
- Dimensions (W x D x H): 21.3 x 22.9 x 4.3 cm
- Weight: 920.8 g
- Chassis compatibility: CX 5420 6-slot switch (4U)
- Chassis switching capacity: 960 Gbps
- Chassis throughput: up to 714 Mpps
- Chassis packet buffer: 64MB shared dynamically among ports
- Chassis latency: 2.5 micro sec
- Management protocols: SSH, RADIUS, TACACS+, SNMP v2c/v3, RMON, NTP, TFTP, SFTP, REST API
- Standards: IEEE 802.3az (EEE), IEEE 802.3z
- Hot-swappable: Yes

FAQs

Q: Does this line card need its own licence?
A: No separate licence is needed for the line card itself. It runs on the CX 5420 chassis under AOS-CX. Management through Aruba Central or HPE Mist is optional and subscription-based.

Q: Does this module provide PoE?
A: No. S0U61A is the non-PoE variant. If you need PoE ports, the Class 4 PoE version of this module is S0U62A.

Q: Which chassis does it fit?
A: It is designed only for the CX 5420 6-slot chassis, including the TAA variant. It works alongside the chassis management modules, S0U54A fan tray and S0U53A 1600W AC power supplies.

Q: Does it have SFP uplink ports?
A: No. The module provides 24 RJ-45 ports only and has no SFP or uplink ports, so transceivers do not apply to it.

Q: How is the module powered?
A: It draws power from the chassis. The CX 5420 uses hot-swappable S0U53A 1600W AC power supplies, which deliver 1600W at 200-240Vac and 1000W at 100-127Vac.
