Aruba S0U53A | CX 5420 1600W AC Power Supply, Hot-Swap, 80 PLUS Platinum
SKU:S0U53A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

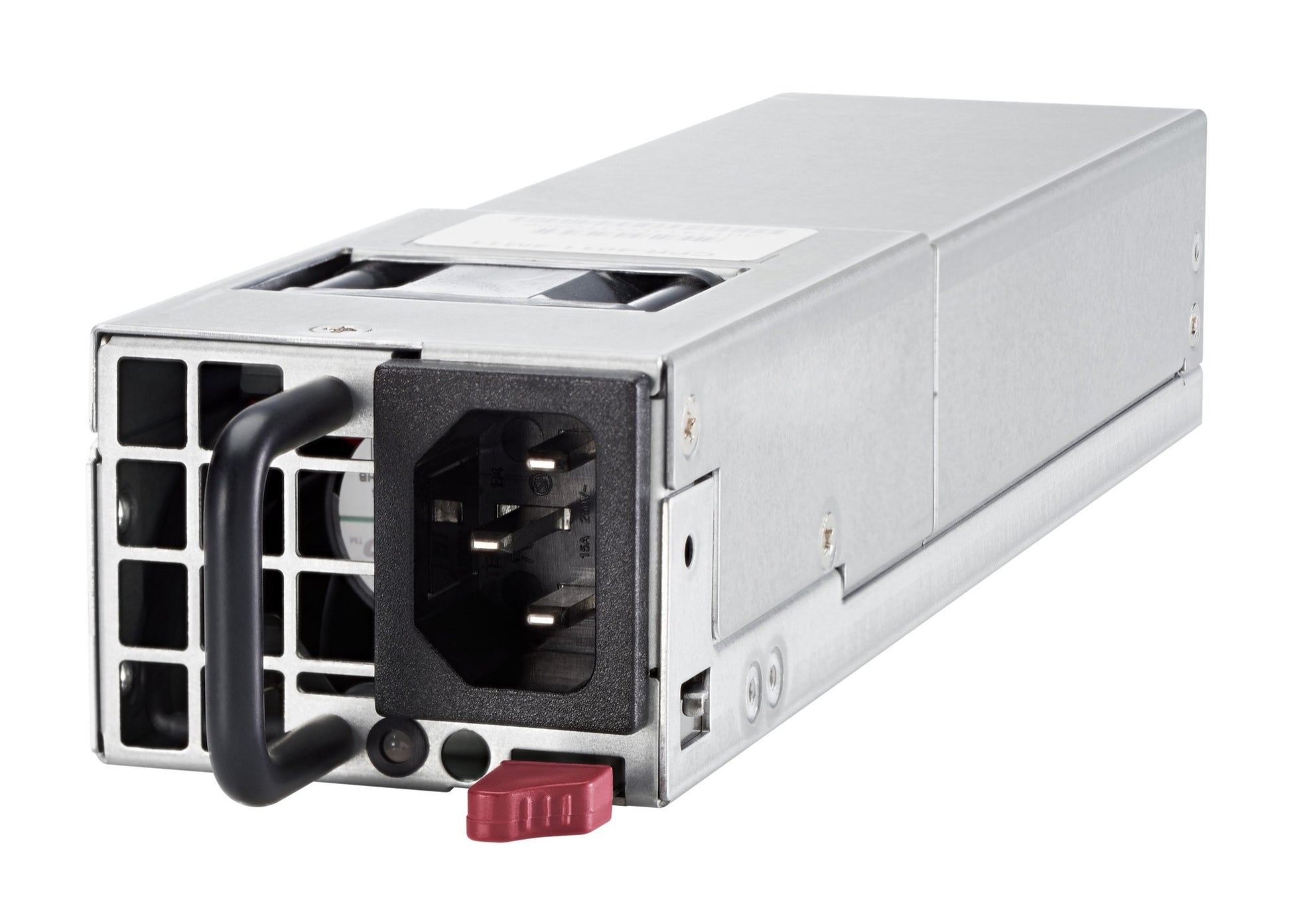

The Aruba CX 5420 1600W AC power supply is a hot-swappable, field-replaceable PSU for the Aruba CX 5420 modular chassis switch. It suits campus and enterprise edge deployments that need a high PoE budget, including 802.3bt devices, along with redundant power.
Output is 1600W on high-line input (200-240 VAC) and 1000W on low-line input (100-127 VAC), with the unit adjusting automatically to the input voltage at 50 or 60 Hz. It carries 80 PLUS Platinum efficiency and uses an IEC 60320 C16 inlet. The chassis has four rear PSU slots, with up to 960W of PoE power available per slot, and PoE availability depends on the modules, line cards, fan trays and PSUs installed. Fitting several units gives N+1 redundancy.
The S0U53A is the PSU for the Aruba CX 5420 6-slot chassis, including the S0U59A and S0U60A models. It requires a C16 inlet adapter with a C15 power cord. No licence or subscription is needed for the power supply.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable and field-replaceable in the CX 5420 chassis
- Supports N+1 redundancy, with the chassis supporting 144 ports at 30W PoE in an N+1 configuration
- Automatically adjusts to input voltage between 100-127 and 200-240 VAC at 50 or 60 Hz
- 80 PLUS Platinum efficiency
- Dual-colour green and amber status LED with latch release tab and handle
- Powers IEEE 802.3af, 802.3at and 802.3bt devices through the chassis PoE line cards
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: S0U53A
- Power output: 1600W at 200-240 VAC, 1000W at 100-127 VAC
- AC voltage: 100-127 / 200-240 VAC, auto-adjusting
- Frequency: 50-60 Hz
- Input current: 11.6 A at 100-127 VAC
- Input current: 9 A at 200 VAC
- Input current: 8 A at 208-240 VAC
- 80 PLUS certification: Platinum
- Power inlet: IEC 60320 C16
- PSU slots per chassis: 4 (rear)
- Maximum PoE power per slot: 960W
- Maximum PoE load: more than 5760W with four 1600W PSUs installed
- Dimensions (H x W x D): 67.8 x 100 x 165 mm
- Weight: 1.34 kg
- Non-operating temperature: -40 to 70 C
- Operating relative humidity: 5% to 95% at 45 C, non-condensing
- Non-operating storage humidity: 5% to 95% at 65 C, non-condensing
- Maximum operating altitude: 3.0 km
- Maximum non-operating altitude: 4.5 km
FAQs
Q: Does this power supply need a licence?
A: No. The power supply does not require a licence or subscription.
Q: How much power does it deliver?
A: It delivers 1600W on high-line input (200-240 VAC) and 1000W on low-line input (100-127 VAC), adjusting to the input voltage automatically.
Q: Which chassis does it fit?
A: It fits the Aruba CX 5420 6-slot chassis, including the S0U59A and S0U60A models. The chassis has four PSU slots, and S0U53A is the supported PSU SKU.
Q: What power cord or inlet does it need?
A: The unit has an IEC 60320 C16 inlet and requires a C16 inlet adapter with a C15 power cord.
Q: Can it be used for PoE and redundancy?
A: Yes. Each slot can supply up to 960W of PoE power, and fitting multiple units gives N+1 redundancy. PoE availability depends on the modules, line cards, fan trays and PSUs installed.
