Aruba

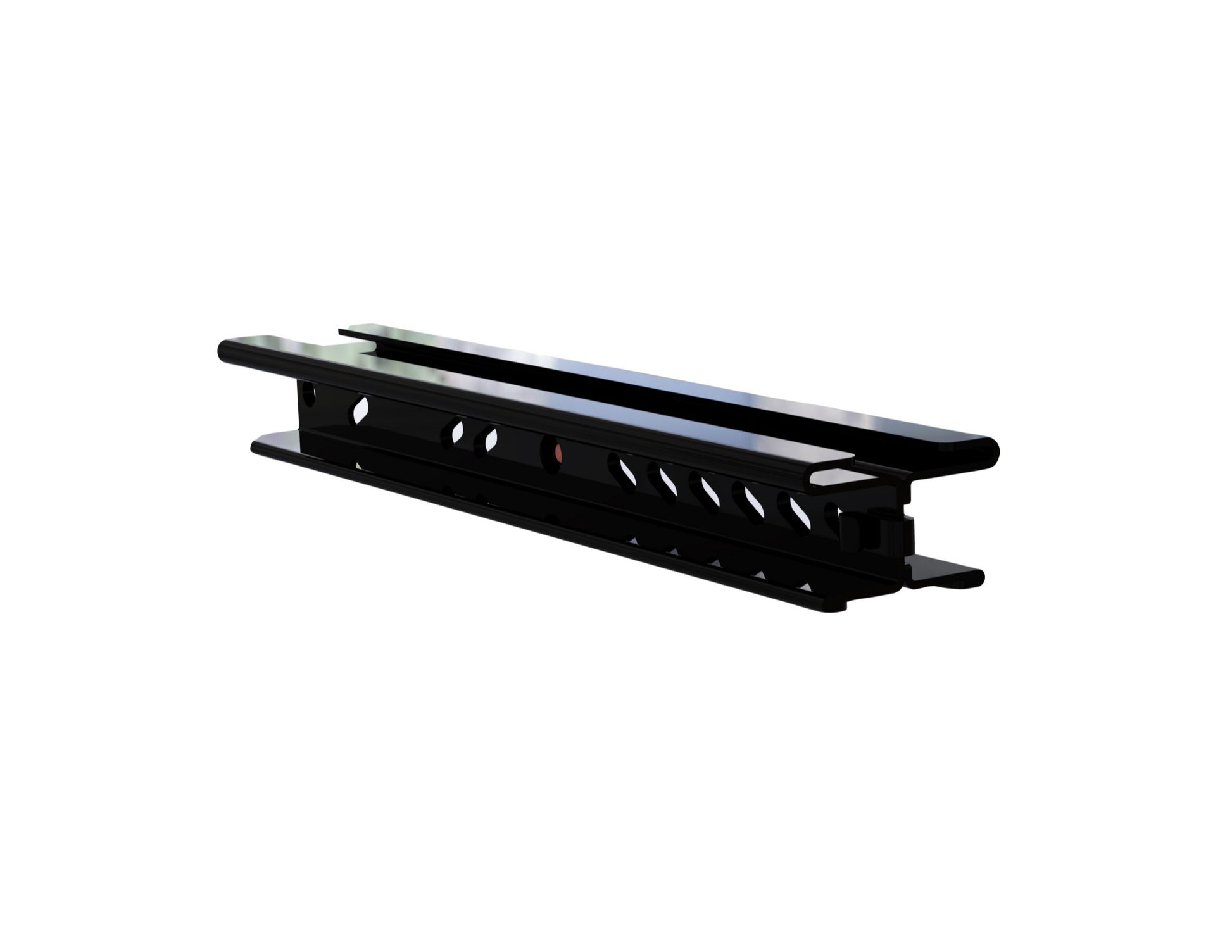

Aruba R3J16A | Campus AP Mount, Type B, Flat 15/16 in Rail, 1-Pack

SKU:R3J16A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AP-MNT-B is a Type B mounting bracket for fixing Aruba indoor campus access points to a flat 15/16 in suspended ceiling rail. It suits enterprise Wi-Fi deployments in offices, campuses and similar venues where access points attach to suspended ceiling T-rails.

This is the individual kit, one bracket per pack, with metal construction and compact dimensions of 142 x 18 x 15 mm at 99.8 g. The low-profile design reduces the gap between the access point and the ceiling or wall, which allows side-entry Ethernet cables. A spring-loaded pin and fasteners hold the access point firmly in place and help prevent accidental falls, and an illustrated installation guide speeds up the job.

It works with the Aruba 510, 530 and 550 Series campus access points, including the AP-504, AP-505, AP-514, AP-515, AP-534, AP-535 and AP-555. For a 9/16 in rail, choose the AP-MNT-A (R3J15A). For multi-unit rollouts, 10-pack Type B kits are available as Q9G69A and R6T34A.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Mounts indoor access points to a flat 15/16 in suspended ceiling rail
- Reduces the gap between the access point and the ceiling or wall
- Allows side-entry Ethernet cabling
- Spring-loaded pin and fasteners give a firm installation that helps prevent accidental falls
- Durable metal construction
- Illustrated installation guide for quick installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: AP-MNT-B
- Product type: WLAN access point mount
- Mount type: Suspended ceiling rail, flat 15/16 in (Type B)
- Quantity per pack: 1
- Construction: Metal
- Height: 142 mm (5.59 in)
- Width: 18 mm (0.709 in)
- Depth: 15 mm (0.591 in)
- Weight: 99.8 g (3.52 oz)
- Compatibility: Aruba 510, 530 and 550 Series campus access points
- Designed for: AP-504, AP-505, AP-514, AP-515, AP-534, AP-535, AP-555

FAQs

Q: Which ceiling rail does the AP-MNT-B fit?
A: The AP-MNT-B is the Type B bracket for a flat 15/16 in suspended ceiling rail. For a 9/16 in rail you need the Type A bracket, AP-MNT-A (R3J15A).

Q: Which Aruba access points is it compatible with?
A: It is designed for the Aruba 510, 530 and 550 Series campus access points, including the AP-504, AP-505, AP-514, AP-515, AP-534, AP-535 and AP-555.

Q: Is this a single mount or a multi-pack?
A: R3J16A is the individual kit with one bracket per pack. Type B 10-pack kits are available as Q9G69A and R6T34A.

Q: Does it allow side-entry Ethernet cables?
A: Yes. The bracket reduces the gap between the access point and the ceiling or wall, which allows side-entry Ethernet cabling.
