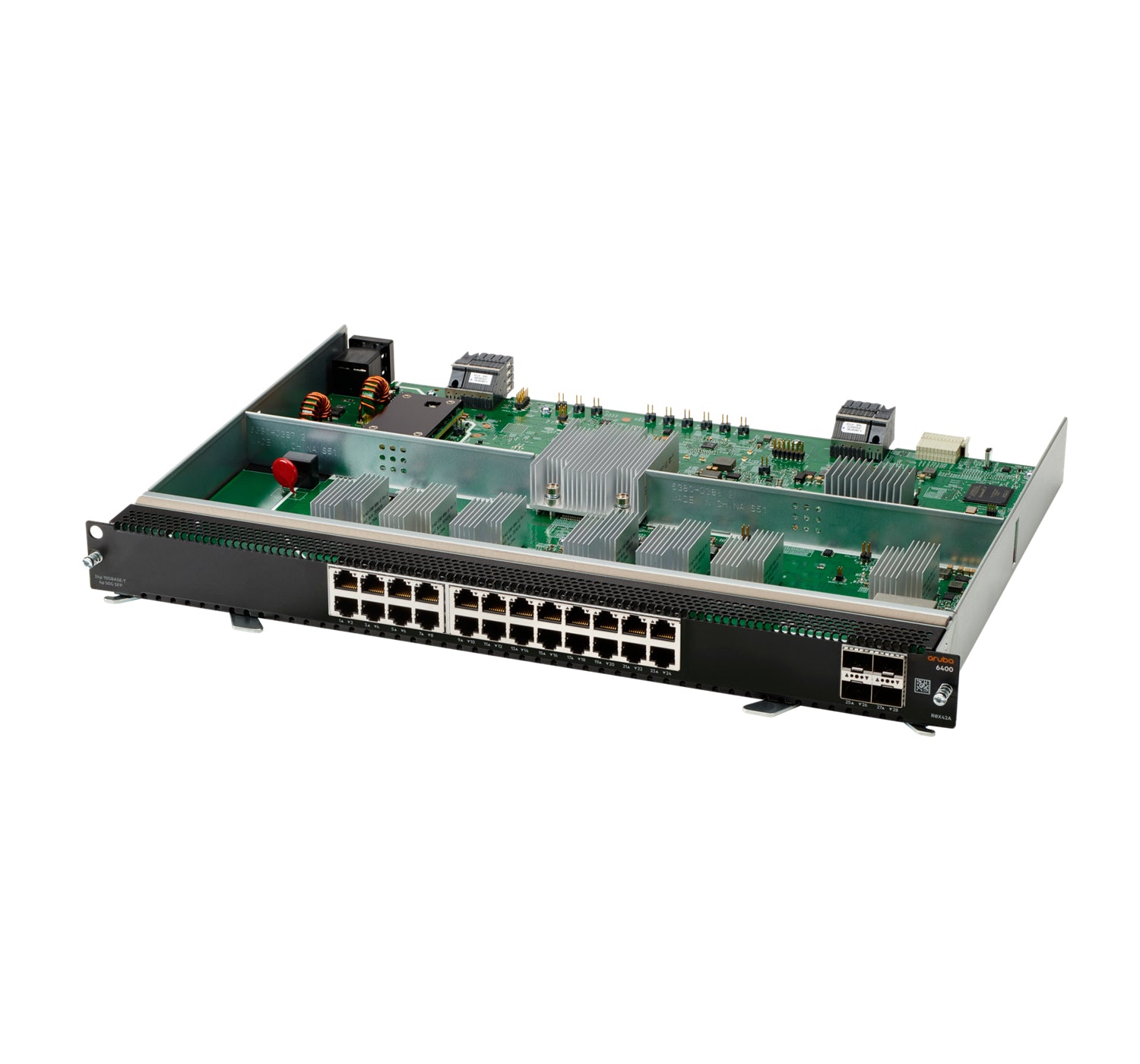

Aruba R0X42A | CX 6400 24-Port 10GBASE-T Line Card, 4x 25G SFP56
SKU:R0X42A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 6400 24-port 10GBASE-T and 4-port SFP56 module is a non-PoE line card for the CX 6405 and CX 6410 modular chassis switches. It suits campus access, aggregation and core deployments, as well as data centre top-of-rack or server aggregation where 10GBASE-T copper connectivity is needed alongside high-speed fibre uplinks.
The card provides 24 x 10GBASE-T RJ-45 ports and 4 x SFP56 uplink ports that accept 1G SFP, 10G SFP+, 25G SFP28 and SFP56 transceivers. 50GbE operation is available over DAC. Each line card has a dual-core ARM Cortex A72 CPU at 1.8GHz, 4GB DDR4 memory and 8MB of packet buffer, with up to 2.8Tb of non-blocking fabric per slot. This is the original-generation module, with R0X42C as its v2 equivalent.
It installs in the CX 6405 (R0X26A/R0X26C, 5 slots) and CX 6410 (R0X27A/R0X27C, 10 slots) chassis alongside the R0X31A management module, and it can be mixed with other v1 and v2 line cards in the same chassis. The card needs no licence of its own and runs under the AOS-CX operating system of the host chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs AOS-CX with a database-driven architecture and Network Analytics Engine (NAE) for monitoring and remediation
- Supports VSX live upgrades with redundant power supplies and fans for high availability
- Layer 3 services including BGP, MPLS, EVPN, VXLAN, VRF and OSPF with security and QoS
- IEEE 802.1AE MACsec available on uplink and downlink ports as a platform feature
- Line-rate 1/10/25/50GbE uplinks, with 50G DACs usable for interconnect and VSX
- Dynamic Segmentation for role-based policy
- Non-blocking 2.8Tb fabric per slot in the 5 or 10 slot chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 24 x 10GBASE-T (RJ-45)
- Uplinks: 4 x SFP56 (1/10/25/50G SFP, SFP+, SFP28, SFP56 transceivers)
- PoE: None (non-PoE module)
- Supported chassis: CX 6405 (R0X26A/R0X26C), CX 6410 (R0X27A/R0X27C)
- Line card CPU: Dual Core ARM Cortex A72 @ 1.8GHz
- Line card memory: 4GB DDR4
- Packet buffer: 8MB per line card
- Fabric: up to 2.8Tb non-blocking per slot
- System switching capacity: 14 Tbps (6405) / 28 Tbps (6410)
- System throughput capacity: 5.7 Bpps (6405) / 11.4 Bpps (6410)
- MAC table capacity: 32,768
- IPv4/IPv6 host table: 49,152
- IPv4/IPv6 unicast routes: 61,000
- VRF: 256
- Operating temperature: 0 to 45 C up to 5,000 ft; 0 to 40 C at 5,001 to 10,000 ft
- Non-operating temperature: -40 to 70 C
- Operating relative humidity: 15% to 95% at 45 C, non-condensing
- Primary airflow: Front-to-back
FAQs
Q: Does this line card need a licence?
A: No licence is needed for the line card itself. The CX 6400 platform runs AOS-CX, and Aruba Central uses Foundation or Advanced subscription tiers. An optional CX Advanced Feature Pack unlocks Edge Insights and Reflexive ACLs.
Q: Which chassis does it fit?
A: It installs in the Aruba CX 6405 (R0X26A/R0X26C, 5 slots) and CX 6410 (R0X27A/R0X27C, 10 slots) chassis, alongside the R0X31A management module.
Q: How is it powered?
A: It is a non-PoE card powered from the chassis, which takes up to four modular PSUs (R0X35A 1800W or R0X36A 3000W). The card's draw counts against the chassis power budget.
Q: What optics work in the SFP56 uplink ports?
A: The four uplink ports accept Aruba 1G SFP, 10G SFP+, 25G SFP28 and SFP56 transceivers and DACs. 50GbE operation is available via DAC.
Q: How does R0X42A differ from R0X42C?
A: R0X42A is the original-generation 24x 10GBASE-T and 4x SFP56 module, and R0X42C is its v2 equivalent. Both can be used in the same chassis.
