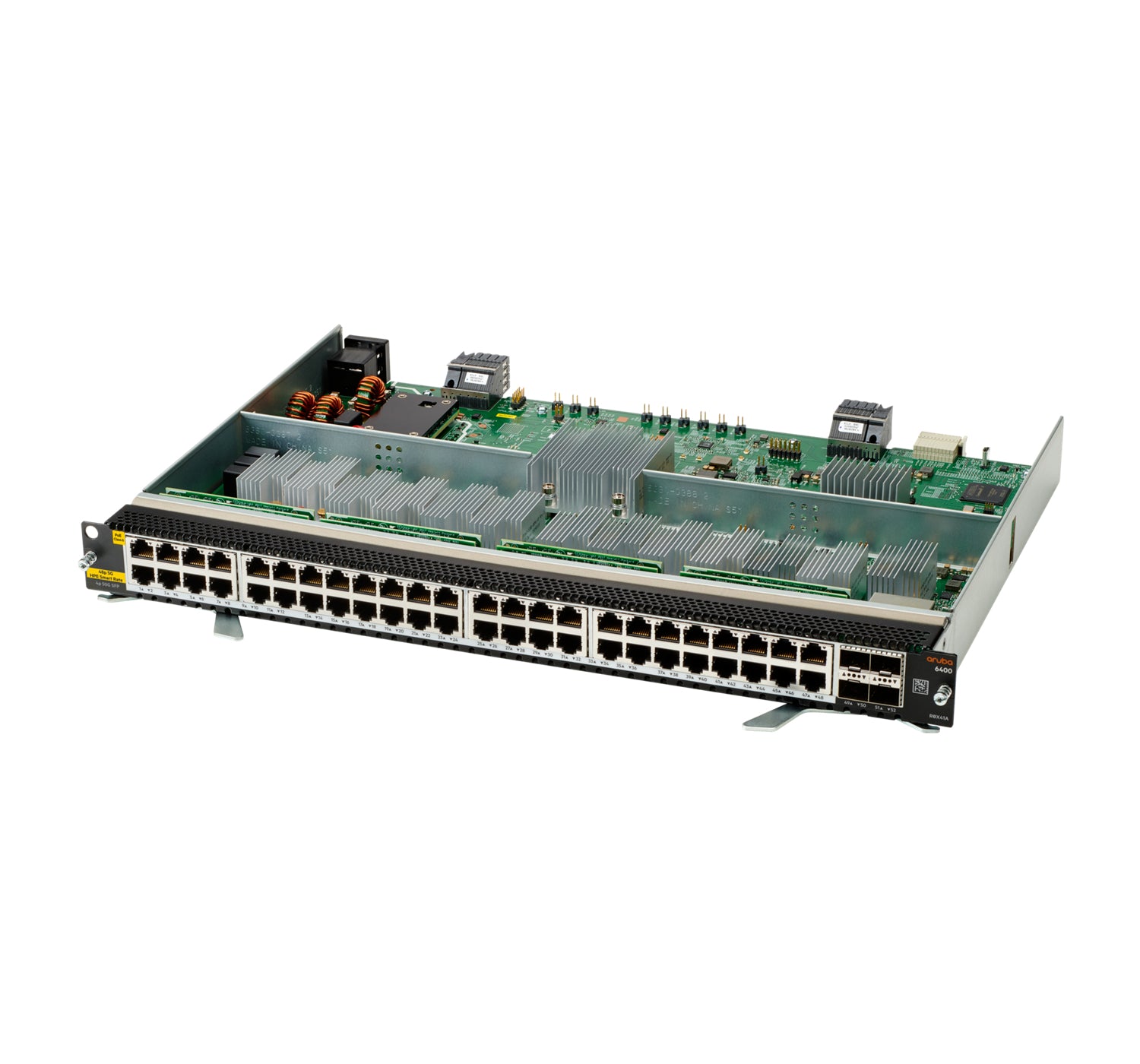

Aruba R0X41A | CX 6400 48-Port 5G PoE++ Line Card, 4x 25G SFP56
SKU:R0X41A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 6400 48-port Smart Rate line card adds high-density multi-gigabit PoE to the CX 6405 and 6410 modular chassis. It suits campus access and aggregation layers that need to power Wi-Fi 6 and 6E access points, IoT devices and other high-power endpoints, with 25G uplinks or server connections on the same module.
The card provides 48 HPE Smart Rate RJ-45 ports running at 1, 2.5 or 5GbE, with 100BASE-TX also supported. Every RJ-45 port delivers IEEE 802.3bt Class 6 PoE at up to 60W, and the card remains compatible with 802.3af and 802.3at devices. Four SFP56 ports provide 1G, 10G and 25G connectivity, with 50G capability planned for a future software release. Maximum module bandwidth is 440 Gb/s. This is the v1 module, and the revised v2 card is listed separately as R0X41C.
The module is built on the Gen7 ASIC architecture used across the 6400 series and is managed by AOS-CX through the chassis management modules. The overall PoE budget depends on the chassis power supplies installed, so size the power supplies before filling slots with PoE cards.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Full-density HPE Smart Rate multi-gigabit connectivity with 60W PoE on every RJ-45 port
- Up to 480 Smart Rate PoE ports in a 6410 chassis with 10 slots populated
- Gen7 ASIC architecture with low latency, increased packet buffering and adaptive power consumption
- Class 6 PoE for IoT devices and Wi-Fi 6 and 6E access points
- Backward compatible with 802.3af and 802.3at powered devices
- Runs AOS-CX, with VSX for high availability and programmability
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: R0X41A
- Module revision: v1 (the v2 revision is R0X41C)
- RJ-45 ports: 48 x 1/2.5/5GBASE-T (HPE Smart Rate)
- RJ-45 speeds supported: 100BASE-TX, 1000BASE-T, 2.5GBASE-T, 5GBASE-T
- SFP56 ports: 4 (25GbE, 10GbE and 1GbE supported; 50G via a future software release)
- Maximum bandwidth: 440 Gb/s
- PoE: IEEE 802.3bt Class 6 (60W, 4-pair) on ports 1-48
- PoE standards: IEEE 802.3af, 802.3at, 802.3bt
- Dimensions (W x D x H): approx. 315 x 439 x 43 mm
- Compatible chassis: Aruba CX 6405 and 6410
- Switch ASIC architecture: Aruba Gen7 ASIC
- Operating system: AOS-CX
FAQs
Q: Does this line card need a separate licence?
A: No separate licence is needed for the line card itself. It is managed by AOS-CX on the 6400 chassis management modules, and an Aruba Central subscription is optional.
Q: Which chassis does the R0X41A fit?
A: It fits the open line-card slots of the Aruba CX 6405 and 6410 modular chassis.
Q: How is PoE power supplied to the 48 ports?
A: Each RJ-45 port can deliver up to 60W under IEEE 802.3bt Class 6. The total PoE budget depends on the 6400 chassis power supplies installed, so check the chassis power supply sizing before filling slots with PoE cards.
Q: What can be connected to the four SFP56 ports?
A: The SFP56 ports take 1G, 10G and 25G SFP, SFP+ and SFP28 optics and DACs. 50G capability is planned for a future software release.
Q: How does R0X41A differ from R0X41C?
A: R0X41A is the original v1 module, while R0X41C is the newer v2 revision of the same 48-port Smart Rate Class 6 PoE card with four SFP56 ports. Both are listed as compatible line cards for the 6400 chassis.
