Aruba

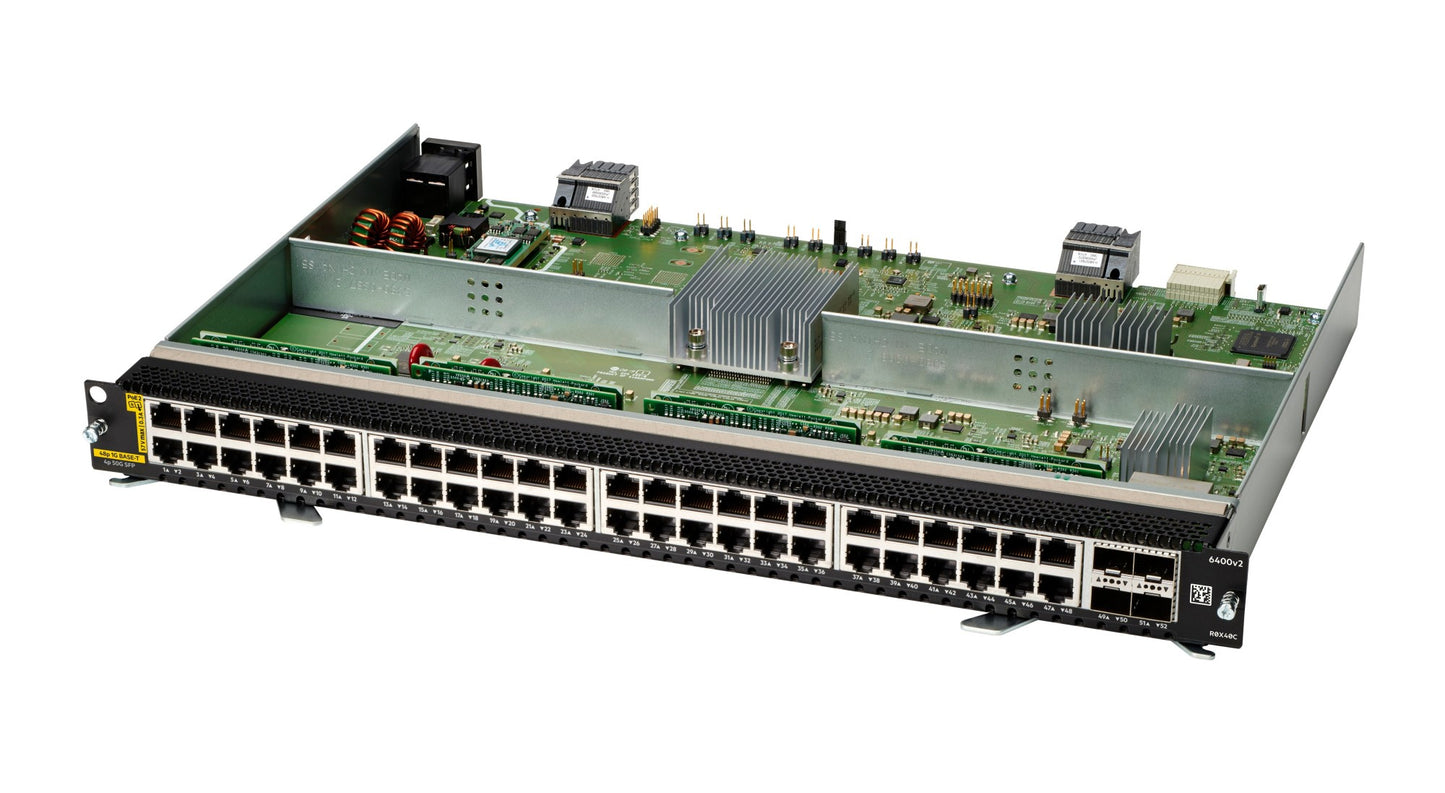

Aruba R0X40C | CX 6400 48-Port 1G Class 6 PoE Line Card, 4x SFP56, v2

SKU:R0X40C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CX 6400 v2 48-port 1GbE Class 6 PoE line card is a modular line module for the Aruba CX 6405 and CX 6410 chassis. It suits campus access, aggregation and core deployments where dense 1GbE PoE is needed for high-power access points, IP phones, cameras and IoT devices.

The module provides 48 x 10/100/1000BASE-T RJ-45 ports with Class 6 PoE (IEEE 802.3bt, up to 60W per port), plus 4 x SFP56 uplink ports that take 1G, 10G, 25G and 50G transceivers and DACs. It has no power supply of its own and draws power from the chassis, so the PoE available depends on the management modules, line cards, fan trays and power supplies installed. The v2 designation separates it from the earlier 6400 line cards.

It fits the CX 6405 v2 (R0X26C) and CX 6410 v2 (R0X27C) chassis and runs AOS-CX. Supported SFP56 optics and DACs include R0M46A, R0M47A, R0M48A, S0V64A, S0V65A and S0V66A.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.3bt Class 6 PoE delivers up to 60W per port for high-power APs and IoT devices
- Always-On PoE keeps power flowing during scheduled reboots and firmware upgrades
- Quick PoE powers devices as soon as the switch receives AC power
- Pre-standard PoE detection powers legacy PoE devices
- IEEE 802.3az Energy Efficient Ethernet and Auto-MDIX on all 10/100/1000 ports
- SFP56 uplinks support high-speed interconnect and VSX using 50G DACs
- Runs AOS-CX with Network Analytics Engine, VSX redundancy, dynamic segmentation, REST API and ISSU
- Layer 3 features including BGP, MPLS, EVPN, VXLAN, VRF and OSPF

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Downlink ports: 48 x 10/100/1000BASE-T RJ-45
- PoE: Class 6, IEEE 802.3bt, up to 60W per port
- Uplink ports: 4 x SFP56 (1/10/25/50G)
- PoE standards (CX 6400 series): IEEE 802.3af, 802.3at, 802.3bt
- Module version: v2 line module
- Compatible chassis: CX 6405 v2 (R0X26C), CX 6410 v2 (R0X27C)
- Management module for the chassis: R0X31A
- Chassis power supplies: R0X35A (1800W) or R0X36A (3000W)
- Line card CPU (series): Dual Core ARM Cortex A72 @ 1.8GHz
- Line card memory (series): 4GB DDR4
- Packet buffer (series): 8MB per line card
- Jumbo frame size (series): up to 9198 bytes
- Fabric (series): non-blocking 2.8 Tb per slot
- Operating temperature (chassis): 0 to 45 C up to 5,000 ft; 0 to 40 C from 5,001 to 10,000 ft
- Operating humidity (chassis): 15% to 95% at 45 C, non-condensing
- Non-operating temperature (chassis): -40 to 70 C
- Maximum operating altitude (chassis): 10,000 ft (3.048 km)

FAQs

Q: Which chassis does this line card fit?
A: It fits the Aruba CX 6405 v2 (R0X26C) and CX 6410 v2 (R0X27C) modular chassis.

Q: Does the module need a separate licence?
A: No separate licence is required for the module. It runs AOS-CX on the CX 6400 chassis, and Aruba Central subscriptions are optional.

Q: How is the module powered, and how much PoE is available?
A: The module has no power supply of its own and is powered by the chassis, which uses R0X35A (1800W) or R0X36A (3000W) power supplies. Available PoE depends on the management modules, line cards, fan trays and power supplies installed, with up to 60W per port at Class 6.

Q: Which transceivers work in the SFP56 ports?
A: The ports accept 1G SFP, 10G SFP+, 25G SFP28 and 50G SFP56 transceivers and DACs, such as R0M46A and R0M47A DACs, R0M48A SR, S0V64A eSR, S0V65A LR and S0V66A ER. The 100M SFP FX (J9054D) is not supported on these ports.

Q: How does this v2 module differ from the earlier 6400 line cards?
A: This is the v2 module with 48 x 1GbE Class 6 PoE ports and 4 x SFP56 uplinks, designed for the v2 CX 6405 and CX 6410 chassis.
