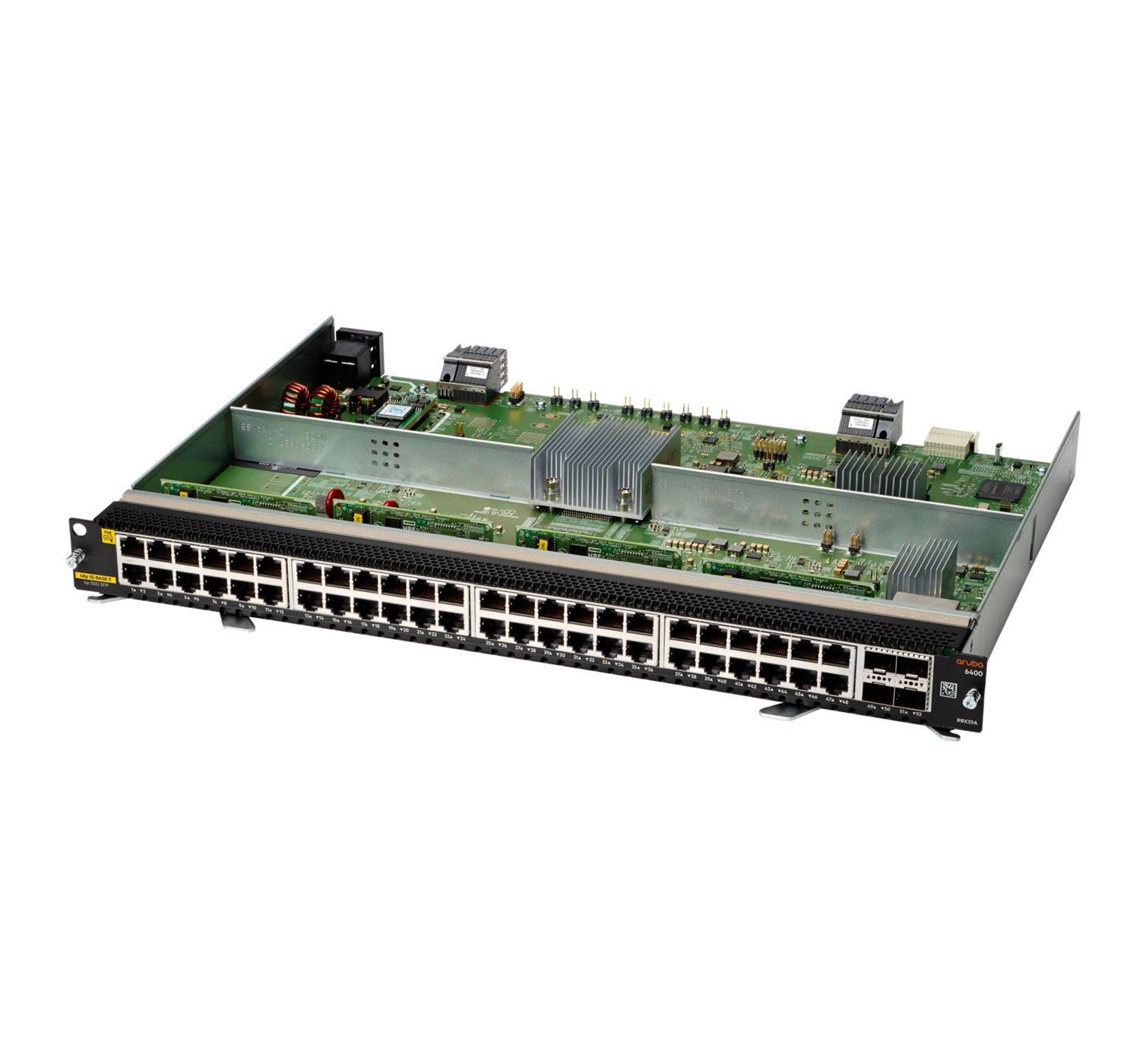

Aruba R0X39B | CX 6400 48-Port Class 4 PoE Line Card, 4x SFP56
SKU:R0X39B
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 6400 48-port 1GbE Class 4 PoE and 4-port SFP56 module is a line card for the Aruba CX 6405 and 6410 modular chassis. It suits campus access and aggregation, where wired access with PoE+ devices such as access points, phones and cameras is paired with high-speed uplinks and VSX interconnect.
The module provides 48 x 10/100/1000BASE-T RJ-45 ports with Class 4 PoE (IEEE 802.3at, up to 30W per port) and 4 x SFP56 ports supporting 1GbE, 10GbE, 25GbE and 50GbE. Maximum module bandwidth is 248 Gb/s. The RJ-45 ports do not support multi-gig speeds. This is the v1 module, which is distinct from the v2 successor R0X39C. It is powered by the chassis power supplies, so the total PoE budget depends on the power supply configuration installed in the chassis.
The line card is used with the Aruba CX 6405 (R0X26A) and 6410 chassis together with an Aruba CX 6400 management module such as R0X31A. 50GbE operation on the SFP56 ports requires CX 10.09.0001 or later and is intended for 50G DACs for interconnect and VSX. The module runs on the ArubaOS-CX software of the chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Gen7 ASIC architecture on the CX 6400 platform
- Runs ArubaOS-CX, a database-driven operating system
- Virtual Switching Extension (VSX) for high availability and non-disruptive upgrades
- Dynamic Segmentation for secure access for users and IoT devices
- Modular, hot-swappable line card design for campus access and aggregation
- SFP56 ports for high-speed uplinks and VSX interconnect
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: R0X39B
- Module type: Line card for modular chassis
- Access ports: 48 x 10/100/1000BASE-T RJ-45
- PoE: Class 4, IEEE 802.3at, up to 30W per port
- SFP56 ports: 4 x 1GbE/10GbE/25GbE/50GbE
- Maximum module bandwidth: 248 Gb/s
- RJ-45 multi-gig (2.5G/5G/10G): No
- Chassis compatibility: Aruba CX 6405 (R0X26A) and 6410
- Management module: Aruba CX 6400 management module required (for example R0X31A)
- 50GbE on SFP56: Requires CX 10.09.0001 or later
- Module version: v1 (successor is the v2 module R0X39C)
- Power: Supplied by the chassis power supplies
FAQs
Q: Does this module need a separate licence?
A: No separate licence is required for the module. It runs on the ArubaOS-CX software of the 6400 chassis and management module.
Q: Which chassis does it fit?
A: It fits the Aruba CX 6405 (R0X26A) and 6410 chassis and needs an Aruba CX 6400 management module such as R0X31A.
Q: How is PoE power provided?
A: All 48 RJ-45 ports offer Class 4 PoE (802.3at, up to 30W per port). The module draws from the chassis power supplies, so the total PoE budget depends on the power supply configuration in the chassis.
Q: What speeds do the SFP56 ports support?
A: Each of the 4 SFP56 ports supports 1GbE, 10GbE, 25GbE and 50GbE. 50GbE requires CX 10.09.0001 or later and is intended for 50G DACs for interconnect and VSX.
Q: How does R0X39B differ from R0X39C?
A: R0X39B is the v1 module. R0X39C is the v2 successor module, so confirm which version your deployment requires.
