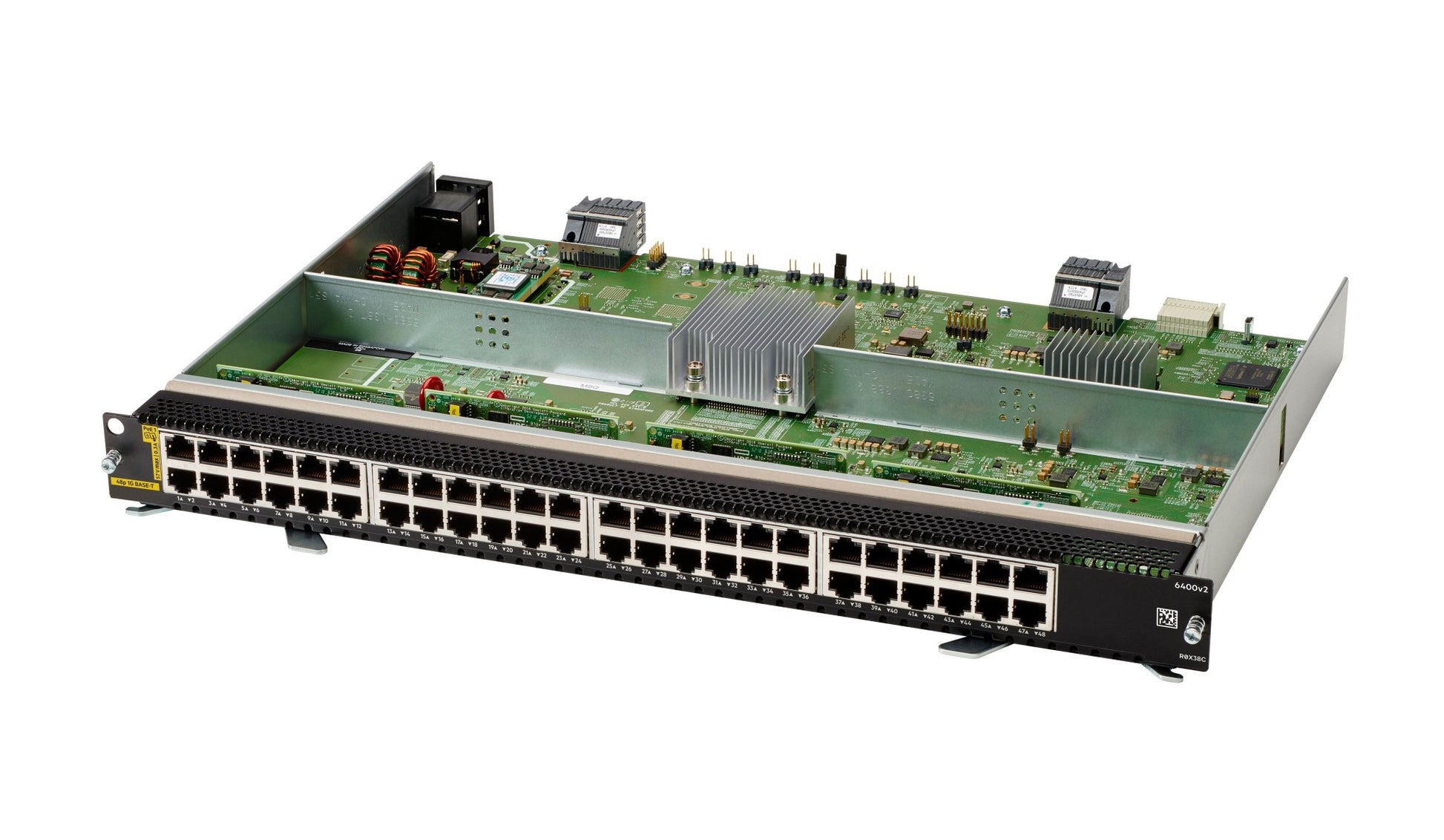

Aruba R0X38C | CX 6400 48-Port 1G PoE+ Class 4 Line Card, v2
SKU:R0X38C
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The CX 6400 48-port 1GbE Class 4 PoE v2 line card is a modular switch module for the Aruba CX 6400 chassis range. It suits high-density campus access and aggregation deployments that need 1GbE PoE for wireless access points, IP phones and cameras, backed by chassis-based resiliency.
The module provides 48 x 10/100/1000BASE-T RJ-45 ports, each able to deliver IEEE 802.3at Class 4 PoE at up to 30W per port. Maximum line-module bandwidth is 48 Gb/s. This v2 version uses the Gen7 ASIC generation and has no SFP56 uplinks. The total PoE budget depends on the number and rating of the power supplies installed in the host chassis. It runs AOS-CX and needs no separate licence for the line card itself.
The line card installs in the Aruba CX 6405 and 6410 chassis, which provide management, power and cooling. A management module (R0X31A) is required in the chassis. It supersedes part number R0X38B.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Fully distributed architecture with Gen7 ASICs for low latency, increased packet buffering and adaptive power consumption
- Runs AOS-CX, a cloud-native, microservices-based network operating system
- Supports VSX active-active redundancy and VSX Live Upgrade
- Layer 3 feature set including BGP, MPLS, EVPN, VXLAN, VRF and OSPF
- Dynamic Segmentation and advanced telemetry via the AOS-CX platform
- Time series database stores configuration and operational state data for troubleshooting
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: R0X38C
- Ports: 48 x 10/100/1000BASE-T (RJ-45)
- PoE: IEEE 802.3at Class 4, up to 30W per port on ports 1-48
- Maximum bandwidth: 48 Gb/s
- Module generation: v2 (Gen7 ASIC generation)
- Uplinks: none, no SFP56 ports on this version
- Form factor: line module for the CX 6400 modular chassis
- Chassis compatibility: Aruba CX 6405 and 6410
- Management: provided by the chassis management module (R0X31A)
- Supersedes: R0X38B
- Weight: approx. 3 kg
FAQs
Q: Does this line card need a separate licence?
A: No separate licence is needed for the line card itself. It runs on AOS-CX in the CX 6400 chassis.
Q: Which chassis does this line card work with?
A: It is designed for the Aruba CX 6405 and 6410 modular chassis. A management module (R0X31A) must be installed in the chassis.
Q: How much PoE does each port provide?
A: Each of the 48 ports supports Class 4 PoE at up to 30W. The total PoE budget depends on the number and rating of power supplies fitted in the chassis.
Q: How does R0X38C differ from R0X38B?
A: R0X38C is the v2 module using the Gen7 ASIC generation and supersedes R0X38B. It provides 48 Class 4 PoE 1GbE ports with no SFP56 uplinks.
