Aruba R0X38B | CX 6400 48-Port 1G PoE+ Class 4 Line Card, v2
SKU:R0X38B
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

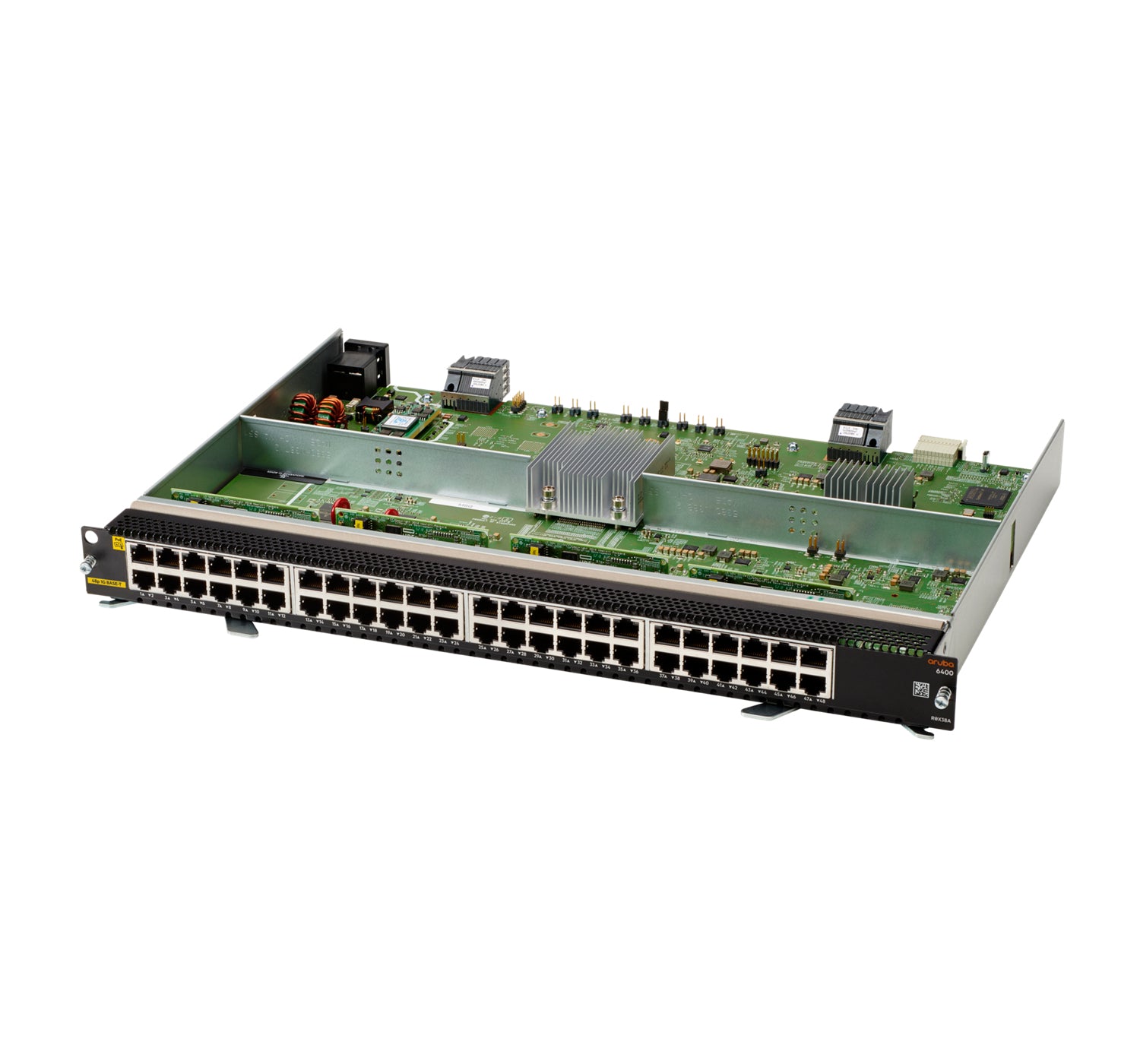

The Aruba CX 6400 48-port 1G PoE+ Class 4 v2 line card is a modular access module for the Aruba CX 6405 and CX 6410 chassis. It suits high-density campus and enterprise access deployments, powering IP phones, wireless access points and cameras from a single hot-swappable card.
The card provides 48 x 10/100/1000BASE-T RJ-45 ports, each supplying Class 4 PoE (IEEE 802.3at, up to 30W per port). It has no SFP uplinks. The line card is built around a dual core ARM Cortex A72 CPU at 1.8GHz with 4GB DDR4 memory and an 8MB packet buffer, and runs AOS-CX on the Gen7 ASIC platform. In a CX 6405 chassis the system delivers 14 Tbps of switching capacity and 5.7 Bpps of throughput, with VSX supported for high availability. Total PoE available depends on the number of power supplies, line cards, fan trays and management modules installed.
The card is powered from the chassis through the modular power supplies R0X35A and R0X36A. It requires the CX 6400 Management Module (R0X31A) and the chassis fan trays (R0X32A), and is listed as supported in the Aruba CX 6405 (R0X26A) and CX 6410 chassis.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Gen7 ASIC architecture for low latency, non-blocking performance and adaptive power consumption
- AOS-CX database-driven operating system with Network Analytics Engine (NAE) for monitoring and remediation
- L2/L3 switching with BGP, OSPF, VRF, EVPN and VXLAN support on the CX 6400 platform
- MACsec encryption, QoS and Aruba Dynamic Segmentation
- VSX for high availability
- CX Mobile App and NetEdit support for deployment and automated configuration
- Hot-swappable in the CX 6400 chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: R0X38B
- Ports: 48 x 10/100/1000BASE-T RJ-45 (1GbE)
- PoE: Class 4, 30W per port (IEEE 802.3at Type 2)
- Total PoE: depends on chassis PSU count
- Uplinks: no SFP uplinks
- Line card CPU: Dual Core ARM Cortex A72 @ 1.8GHz
- Line card memory: 4GB DDR4
- Packet buffer: 8MB per line card
- Chassis compatibility: Aruba CX 6405 (5 open slots) and CX 6410 (10 open slots)
- System switching capacity (6405 chassis): 14 Tbps
- System throughput capacity (6405 chassis): 5.7 Bpps
- Average latency, 1G (LIFO 64-byte): 5.32 microseconds
- Switched virtual interfaces (dual stack): 2,048
- IPv4 host table (ARP): 49,152
- IPv6 host table (ND): 49,152
- IPv4 unicast routes: 61,000
- IPv6 unicast routes: 61,000
- Operating system: AOS-CX
- High availability: VSX supported
- Power: drawn from chassis power supplies
FAQs
Q: Which chassis does this line card fit?
A: It fits the Aruba CX 6405 (R0X26A) and CX 6410 chassis, which provide 5 and 10 open line card slots respectively. A CX 6400 Management Module (R0X31A) and the chassis fan trays (R0X32A) are also required.
Q: Does it need a separate licence?
A: No separate licence is needed for the base AOS-CX feature set. Optional CX 64xx Advanced Feature Pack subscriptions are available for advanced features.
Q: How is the card powered, and how much PoE can it deliver?
A: The card draws power from the chassis through the modular power supplies R0X35A and R0X36A. Each port supplies Class 4 PoE up to 30W, and the total PoE available depends on how many power supplies, line cards, fan trays and management modules are installed.
Q: Does this card have SFP uplink ports?
A: No. It provides 48 x 10/100/1000BASE-T RJ-45 PoE ports only, with no SFP uplinks.
Q: Can it be replaced while the chassis is running?
A: Yes. The line card is a hot-swappable chassis module in the CX 6400 series.
