Aruba R0X35A | CX 6400 Power Supply, 1800W, C16 Inlet, Hot-Swap
SKU:R0X35A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

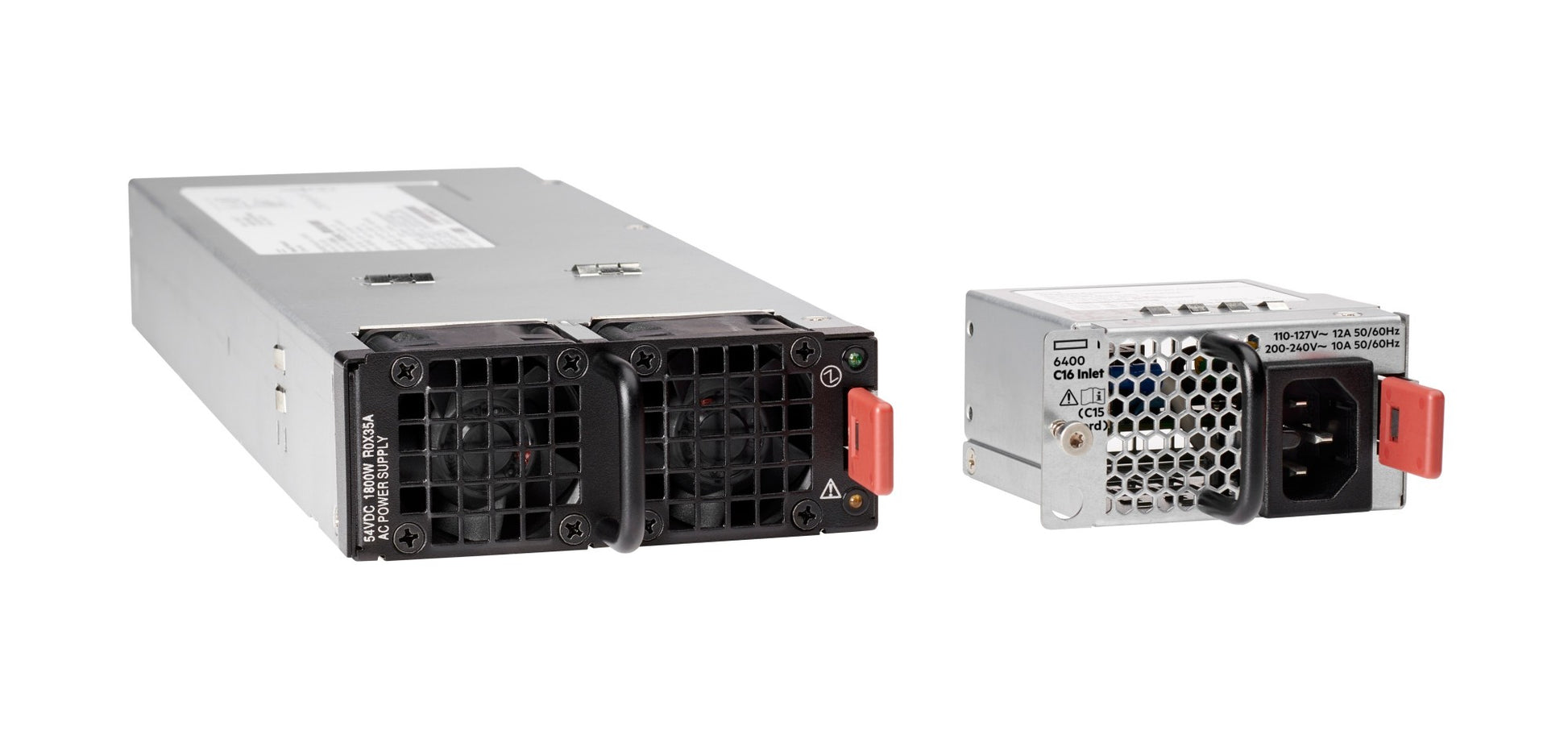

The R0X35A is a hot-swappable 1800W AC power supply module for the Aruba CX 6400 series, built for the CX 6405 and CX 6410 modular chassis switches. It is a front-serviceable module with a removable, rear-serviceable IEC C16 power cord inlet adapter, so it can be replaced without disturbing the chassis cabling.
Output is 1800W at 200-240VAC and derates to 1100W at 110-127VAC. Input is 110-127 / 200-240VAC at 50-60 Hz, with a maximum input current of 12A at 110-127VAC and 10A at 200-240VAC. Each chassis takes up to four power supplies, and the PoE budget available depends on how many power supplies, line cards, management modules and fan trays are installed.
Fitting multiple units provides N+1 or N+N power redundancy with hitless, stateful failover. It can be mixed in the same chassis with the 3000W R0X36A power supply, which uses a C20 inlet. No licence is needed for the power supply itself.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable power supply for replacement without powering down the chassis
- N+1 and N+N power redundancy in case of power line or supply failure
- Increases total power availability with hitless, stateful failover
- Removable rear-serviceable C16 power cord inlet adapter
- Front-serviceable module for easy replacement
- Supports PoE-dense line cards, including 60W Smart Rate (1/2.5/5GbE) PoE, in the 6405 and 6410 chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Power output: 1800W at 200-240VAC
- Power output at low line: 1100W at 110-127VAC
- AC input voltage: 110-127 / 200-240VAC
- Input frequency: 50-60 Hz
- Maximum input current: 12A at 110-127VAC, 10A at 200-240VAC
- Inlet: IEC C16 (removable, rear-serviceable adapter)
- Form factor: Modular, front-serviceable, hot-swappable
- Supported chassis: CX 6405 (5-slot, 7RU) and CX 6410 (10-slot, 12RU)
- Power supplies per chassis: up to four
- Operating temperature (CX 6400 system): 0 to 45 C up to 5,000 ft, 0 to 40 C at 5,001-10,000 ft
- Safety: EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1
- Emissions: FCC Part 15 Class A, EN 55022 Class A, CISPR 22/32 Class A, AS/NZS CISPR 22 Class A
FAQs
Q: Which switches does the R0X35A power supply fit?
A: It fits the Aruba CX 6405 (5-slot) and CX 6410 (10-slot) modular chassis. Each chassis supports up to four power supplies.
Q: What output can I expect on 110-127VAC mains?
A: Output is 1800W at 200-240VAC and derates to 1100W at 110-127VAC. Maximum input current is 12A at 110-127VAC and 10A at 200-240VAC.
Q: Can it be mixed with the 3000W power supply?
A: Yes. The R0X35A can be installed in the same chassis as the 3000W R0X36A, which uses a C20 inlet instead of the C16 inlet on this unit.
Q: Does it support power redundancy?
A: Yes. Installing multiple power supplies provides N+1 or N+N redundancy with hitless, stateful failover.
Q: Does the PoE budget depend on this power supply alone?
A: No. Available PoE depends on the number of power supplies, management modules, line cards and fan trays installed in the chassis.
