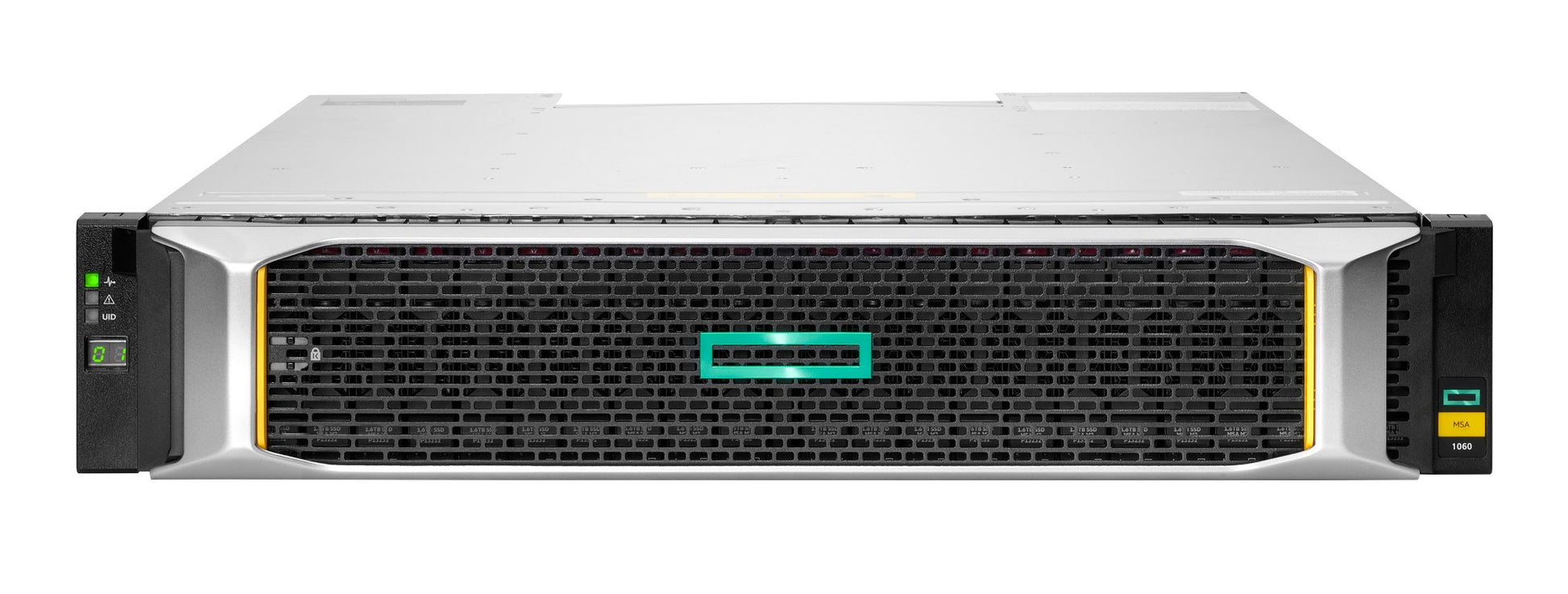

• HPE ProLiant DL380 Gen10 server in Aruba R0Q87B SFF hybrid array
1 1

Aruba

Aruba R0Q87B | MSA 1060 12Gb SAS SFF Storage Array, 2x 2-Port

R0Q87B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The MSA 1060 is a 2U small form factor, dual-controller entry-level block storage array with 12Gb SAS host connectivity, suited to small and mid-sized workloads. This revision ships with two 2-port storage controllers (4 x 12Gb SAS host ports per array) and supports up to 24 SFF HDD and/or SSD in a hybrid or all-flash configuration. Automated tiering and snapshot-based data protection make it a practical choice for virtualisation, backup and general-purpose shared storage.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Automated tiering engine moves hot data to the fastest media in real time
- Virtualised snapshot technology for data protection and instant recovery, 64 snapshots standard with 512 optional per array
- Hybrid or all-flash configuration from day one with any mix of SSD, Enterprise SAS and Midline SAS HDD
- Dual hot-swappable active/active controllers
- Storage Management Utility designed for IT generalists
- Certified for HPE Morpheus VM Essentials Software (Gen6 and Gen7 MSA arrays)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U, SFF chassis
- Controllers: 2 x MSA 1060 12Gb SAS storage controllers, 2 ports each
- Host interface: 4 x 12Gb SAS ports per array
- Drive bays: up to 24 SFF HDD and/or SSD per array chassis
- Expansion: up to 3 additional 24-bay SFF 2060 or 12-bay LFF 2060 enclosures (4 total including the array)
- Maximum capacity: 737.28 TB with SFF expansion, 904.32 TB with LFF expansion
- Dimensions: 3.5 x 17.5 x 20.0 in, weight 11 lb
- Clustering and SAN backup support
- Two AC power supplies
- Energy Star certified

FAQs

Q: What host connectivity does this MSA 1060 array use?
A: It uses 12Gb SAS host connectivity, with two 2-port controllers providing 4 x 12Gb SAS ports per array. The 16Gb Fibre Channel and 10GBASE-T iSCSI variants use different SKUs.

Q: How many drives does it support and what type?
A: The SFF chassis holds up to 24 HDD and/or SSD, and you can mix SSD, Enterprise SAS and Midline SAS drives for hybrid or all-flash configurations.

Q: Can the capacity be expanded?
A: Yes. Up to three 24-bay SFF or 12-bay LFF 2060 expansion enclosures can be added, giving four enclosures in total including the array, for a maximum capacity of 737.28 TB with SFF or 904.32 TB with LFF expansion.

Q: Does it support snapshots and tiering?
A: Yes. It includes virtualised snapshot technology, with 64 snapshots standard and 512 optional per array, and an automated tiering engine that places hot data on the fastest media.

Q: Is the controller configuration redundant?
A: Yes. It uses dual hot-swappable active/active controllers and two AC power supplies for a resilient entry-level storage deployment.
