• HPE ProLiant DL380 Gen10 server in Aruba R0Q86B SFF iSCSI array
1 1

Aruba

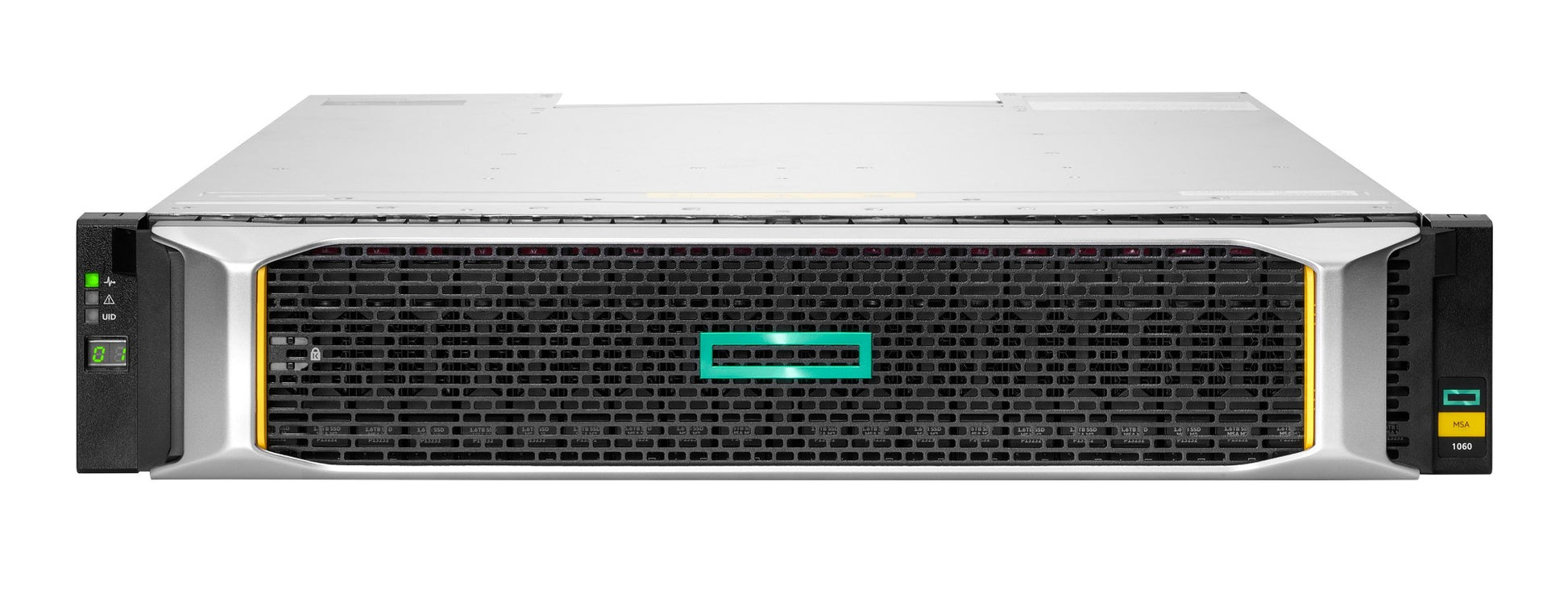

Aruba R0Q86B | MSA 1060 24-Bay SFF 10GBASE-T iSCSI Storage Array

R0Q86B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The MSA 1060 is an entry-level 2U small-form-factor iSCSI storage array with dual active/active controllers and 10GBASE-T host connectivity over four host ports. This 24-bay SFF model supports SAS HDD and SSD media with automated tiering and snapshots, making it well suited to small and medium businesses and remote offices that need flash-ready shared block storage. It is the updated 'B' model with 94% efficient power supplies that meet EU Lot9 2023 requirements.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Virtualised snapshot technology for data protection and instant recovery
- Remote replication via Fibre Channel or iSCSI for disaster recovery
- Automated tiering engine moves hot data to the fastest media in real time
- MSA-DP+ disk group type with integrated sparing, fast rebuilds and incremental expansion
- Flexible, modular architecture that mixes SSDs, Enterprise SAS HDDs and Midline SAS HDDs
- Battery-free cache backup using super capacitors and compact flash
- 94% efficient power supplies that meet EU Lot9 2023 power efficiency requirements
- Customer self-installable, self-repairable and self-upgradeable
- Certified for use with HPE Morpheus VM Essentials Software
- Web-based Storage Management Utility and MSA Health Check analytics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack-mount SFF chassis with 24 x 2.5-inch drive bays (SAS, HDD and/or SSD)
- 2 hot-swappable active/active controllers with 2 x 10GBASE-T iSCSI ports each (4 host ports per array)
- Block access type
- 24GB data (read/write) cache plus system memory per array
- Up to 8TB read cache per array
- Two pools of 1 PB each
- RAID levels 0, 1, 5, 6, 10 and MSA-DP+
- Expansion with up to 3 x 2060 enclosures (SFF 24-bay or LFF 12-bay), 4 enclosures in total including the array
- Over 154,000 IOPS
- Tiering: Performance, Standard and Archive tiers
- Up to 512 snapshots, volume copy and remote snaps
- Thin provisioning, space reclamation and thin rebuild

FAQs

Q: What host interface does this MSA 1060 use?
A: It uses 10GBASE-T iSCSI. Each of the two controllers provides two 10GBASE-T ports, giving four host ports per array.

Q: How many drives does it support and can it be expanded?
A: The chassis has 24 x 2.5-inch SFF bays. It can be expanded with up to three 2060 enclosures (SFF 24-bay or LFF 12-bay), for four enclosures in total including the array.

Q: Can it mix SSDs and hard drives?
A: Yes. The array supports SSDs, Enterprise SAS HDDs and Midline SAS HDDs, and its tiering engine automatically places hot data on the fastest media.

Q: Does it support snapshots and replication?
A: Yes. It supports up to 512 snapshots, volume copy and remote snaps, with remote replication available over Fibre Channel or iSCSI.

Q: What makes the 'B' model different?
A: The updated 'B' model uses 94% efficient power supplies that meet EU Lot9 2023 power efficiency requirements.
