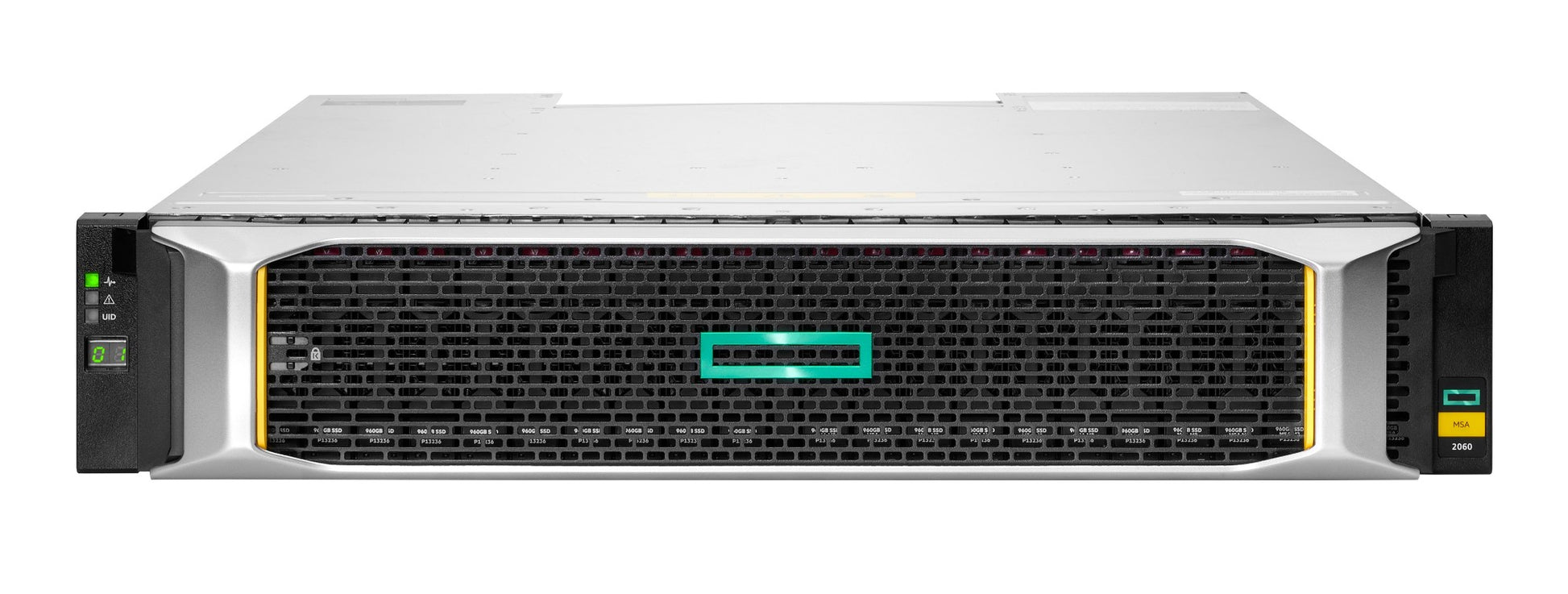

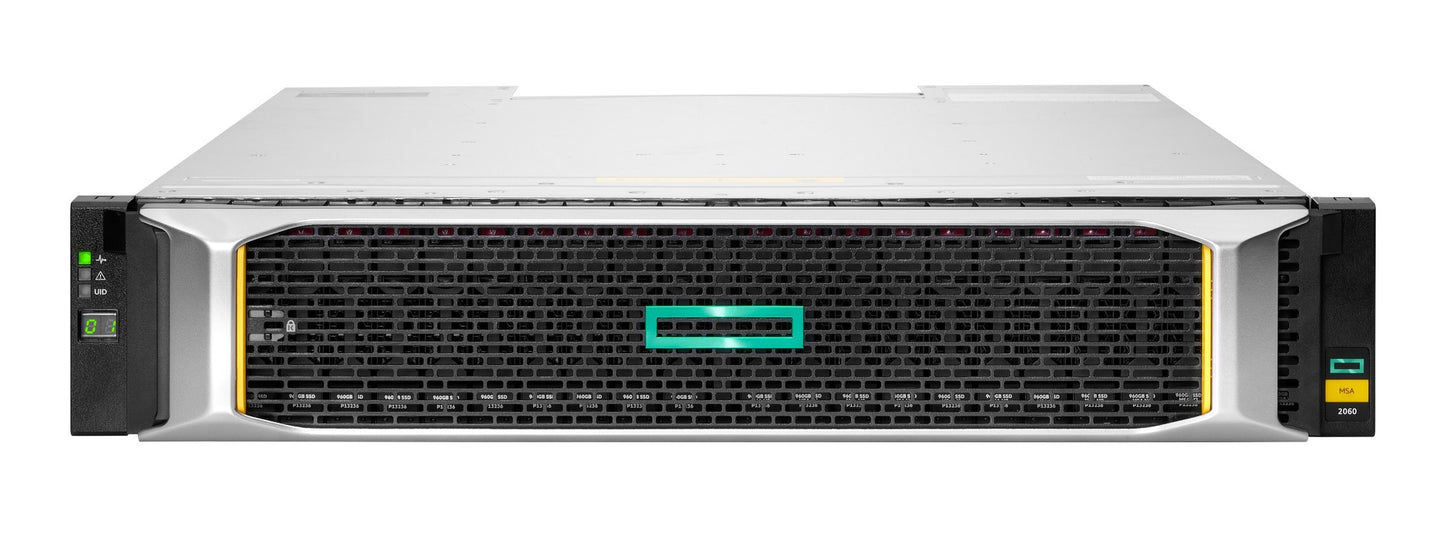

Aruba R0Q84B | MSA 2060 24-Bay SFF Storage Array, 12Gb SAS, 2x 1.92TB SSD

R0Q84B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

Entry-level 2U SAN storage array with dual active/active MSA 2060 controllers and 12Gb SAS host connectivity across 24 SFF 2.5-inch drive bays. This configuration includes 2 x 1.92TB SSDs (3.84TB total) and 24GB of system cache, with automated tiering, snapshots and replication support for hybrid or all-flash deployments. It suits small and medium-sized businesses that need direct-attached or SAS-connected block storage with room to scale through up to nine expansion enclosures.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Automated tiering engine moves hot data to the fastest media in real time
- Virtualised snapshot technology for data protection and instant recovery
- Remote replication over Fibre Channel or iSCSI on models with those host interfaces
- Encrypted SSDs and HDDs with local key management
- Dual hot-swappable active/active controllers
- Veeam Backup & Replication repository certification
- NEBS certification for the 12Gb SAS SFF array
- Software suite with Advanced Data Services licence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U, 24 x SFF (2.5") drive bays
- Controllers: 2 x MSA 2060 12Gb SAS, 4 host ports per controller (8 per array)
- Host connectivity: 12Gb SAS
- Included drives: 2 x 1.92TB SSD (3.84TB total)
- System cache: 24GB
- Expansion: up to 9 drive enclosures, SFF and LFF mixing supported
- Maximum capacity: up to 240 SFF HDDs/SSDs per array
- Expansion interface: 12Gb SAS
- Performance: up to 395,000 random read IOPS with SSDs
- Virtual Storage RAID levels: 1, 5, 6, 10, MSA-DP+
- Snapshots: 64 per array standard, 512 with Advanced Data Services licence
- Cache protection: battery-free backup using super capacitors and MMC
- Dimensions: approx. 8.9 x 44.5 x 50.8 cm (chassis only)
- Compliance: TAA compliant, Energy Star

FAQs

Q: What host connectivity does this MSA array use?
A: It uses 12Gb SAS host connectivity, with 4 host ports on each of the 2 controllers for 8 host ports per array.

Q: What drives are included?
A: This configuration includes 2 x 1.92TB SSDs, giving 3.84TB of raw SSD capacity, in a chassis with 24 SFF 2.5-inch bays.

Q: Can the array be expanded?
A: Yes. It supports up to 9 expansion drive enclosures over 12Gb SAS, with SFF and LFF enclosures able to be mixed, for up to 240 SFF drives per array.

Q: Does it support tiering and snapshots?
A: Yes. It includes an automated tiering engine and virtualised snapshots, with 64 snapshots per array as standard and 512 with the Advanced Data Services licence.

Q: Which RAID levels are supported?
A: Virtual Storage supports RAID 1, 5, 6, 10 and MSA-DP+.
