Aruba R0Q82B | MSA 2062 24-Bay SFF 10GbE iSCSI SAN Storage, 3.84TB SSD

R0Q82B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

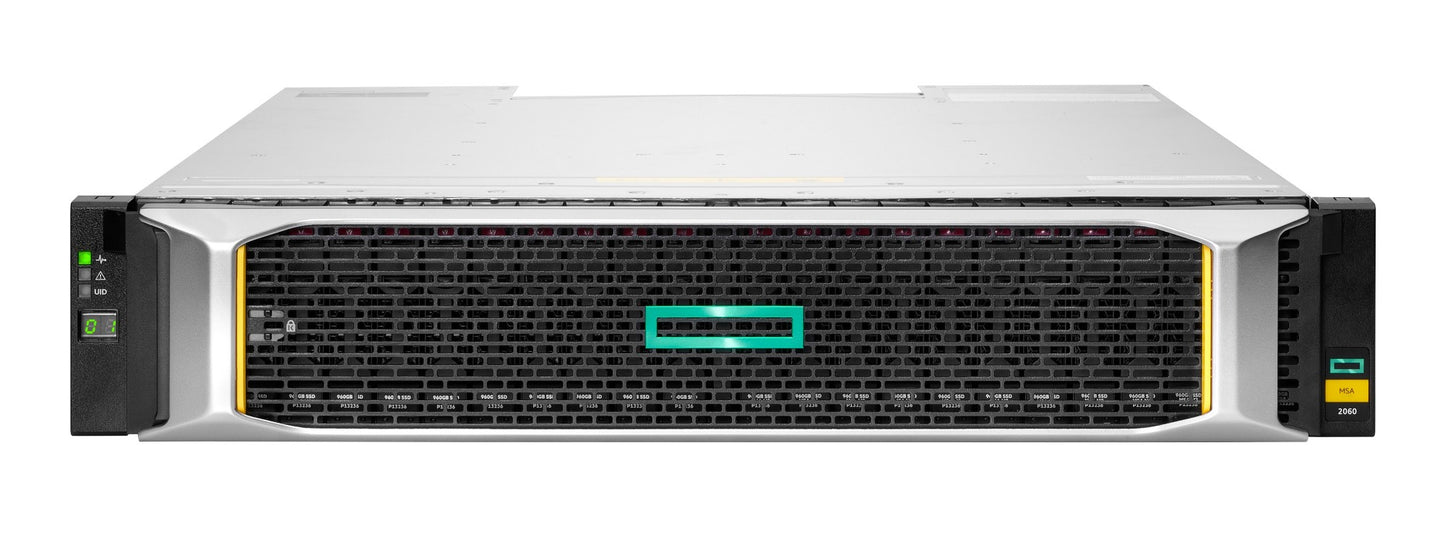

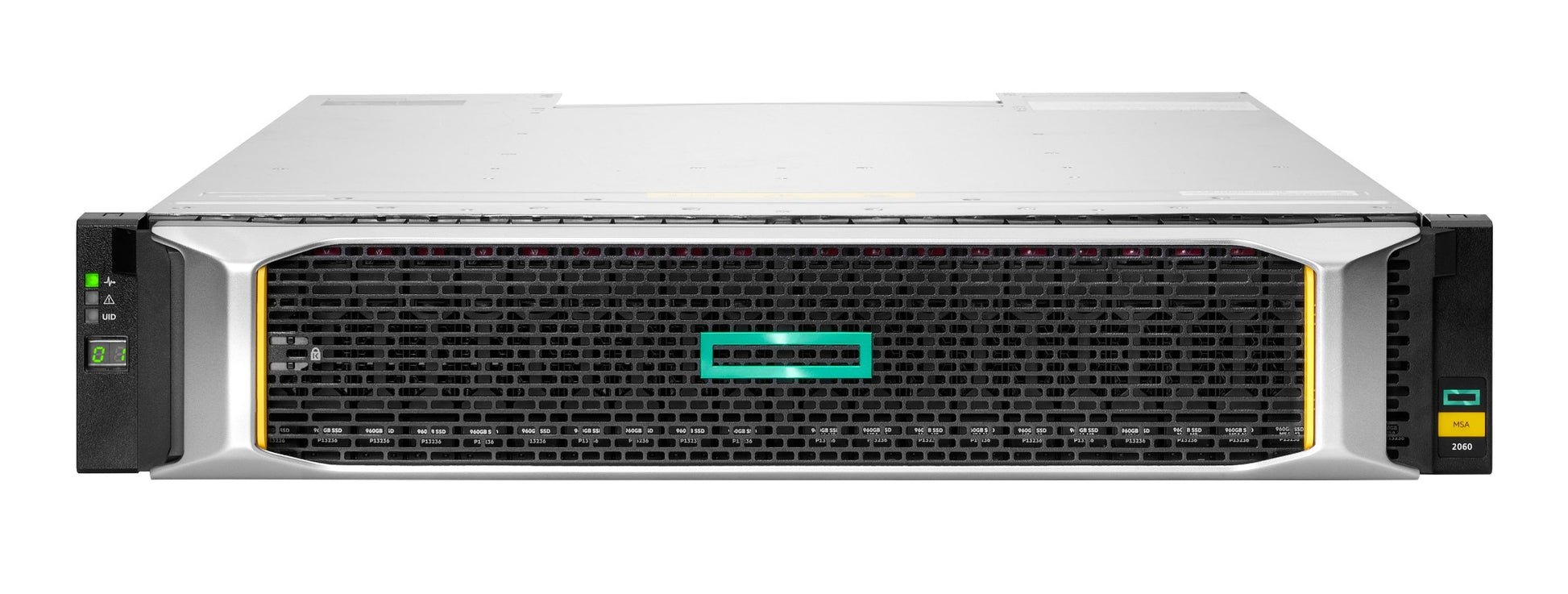

The MSA 2062 is a 2U dual-controller hybrid-flash SAN storage array with 10GbE iSCSI host connectivity and 24 SFF drive bays. This configuration includes 3.84TB of embedded flash from 2 x 1.92TB Read Intensive SSDs, making it suited to small and medium businesses and remote offices. Automated storage tiering and thin provisioning are included, and capacity can be grown with MSA 2060 drive enclosures.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Automated storage tiering that moves hot data to the fastest media in real time
- Thin provisioning and snapshots (64 included, 512 with Advanced Data Services licence)
- Encrypted SSDs and HDDs with local key management
- Remote replication for disaster recovery and Veeam backup integration
- Dual hot-swappable controllers for resilience
- Customer self-installable and self-repairable
- All-inclusive software suite included

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack-mountable
- Drive bays: 24 x 2.5in SFF (SAS-3)
- Controllers: 2 x hot-swappable active/active
- Host ports: 4 per controller, 8 per array
- Host connectivity: iSCSI 10/25GbE (SFP), Gen6 SFP option required
- Included drives: 2 x 1.92TB Read Intensive SFF SSD (3.84TB embedded flash)
- Performance: up to 395,000 IOPS
- System cache: 24GB
- Expansion ports: 12Gb SAS
- Expansion: up to 9 MSA 2060 drive enclosures (24-bay SFF and/or 12-bay LFF)
- Maximum raw capacity per array: 1831.68TB (all SFF)
- Dimensions: 8.9 x 44.5 x 50.8 cm (3.5 x 17.5 x 20.0 in)
- Weight: approx. 5.0 kg (11 lb)
- Power supply: 94% efficient
- Energy Star compliant

FAQs

Q: What host connectivity does this MSA 2062 use?
A: This model provides iSCSI host connectivity at 10/25GbE over SFP, with 4 host ports per controller and 8 per array. A Gen6 SFP option is required for the host ports.

Q: How much storage is included?
A: It includes 2 x 1.92TB Read Intensive SFF SSDs, giving 3.84TB of embedded flash. The 24 SFF bays allow further drives to be added.

Q: Can capacity be expanded?
A: Yes. The array supports up to 9 MSA 2060 drive enclosures, in 24-bay SFF and/or 12-bay LFF form, for a maximum raw capacity of 1831.68TB when all SFF.

Q: Does it support thin provisioning and tiering?
A: Yes. Thin provisioning and automated storage tiering are included, and snapshots are supported (64 included, 512 with the Advanced Data Services licence).

Q: Is data at rest encryption supported?
A: Yes. The array supports encrypted SSDs and HDDs with local key management.
