Aruba R0Q77B | MSA 2060 12-Bay LFF Storage Array, 12Gb SAS, Dual Controller

R0Q77B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

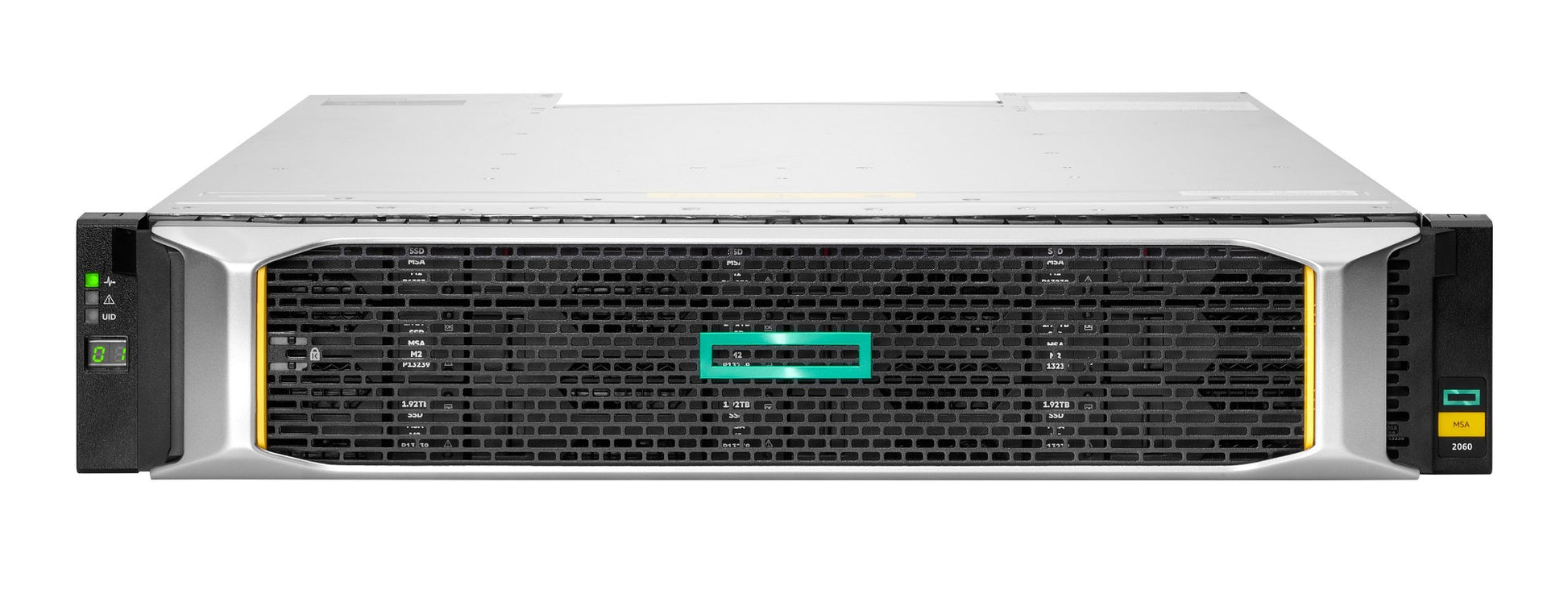

The MSA 2060 12Gb SAS LFF storage array is a flash-ready hybrid 2U block storage system for small and remote office deployments. This model has a 12-bay 3.5in large form factor chassis with dual controllers, each providing four 12Gb SAS host ports. It supports any mix of SSD, Enterprise SAS and Midline SAS drives, and can grow through mixed LFF and SFF expansion enclosures.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Virtualised snapshot technology for data protection and instant recovery
- Thin provisioning, volume copy and automated tiering
- Self-encrypting SSD and HDD support
- Supports any combination of SSDs, Enterprise SAS HDDs and Midline SAS HDDs
- Modular growth with mixed 3.5in LFF and 2.5in SFF expansion enclosures
- Clustering support and SAN backup support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number R0Q77B: MSA 2060 Large Form Factor chassis with two 4-port 12Gb SAS controllers
- 2U rack chassis with 12 x 3.5in LFF drive bays
- Dual controllers with 8 x 12Gb SAS host ports in total (4 per controller)
- RAID levels: RAID 0 (read cache only), 1, 5, 6, 10, MSA-DP+
- Up to 9 expansion enclosures, LFF and SFF can be mixed, 12Gb SAS expansion interface
- Up to 120 LFF drives per array with maximum expansion
- Up to 395,000 IOPS
- 24GB data cache plus system memory per array, up to 8TB read cache
- Two storage pools of 1PB each
- Weight 5 kg, dimensions 8.9 x 44.5 x 50.8 cm
- Energy Star compliant

FAQs

Q: What host connectivity does this MSA 2060 model use?
A: It has dual controllers with four 12Gb SAS host ports each, giving 8 x 12Gb SAS host ports in total.

Q: What drive types and bay count does it support?
A: The chassis has 12 x 3.5in LFF bays and supports SSD, Enterprise SAS and Midline SAS drives in any combination.

Q: How can capacity be expanded?
A: It supports up to 9 expansion enclosures over a 12Gb SAS interface, and LFF and SFF enclosures can be mixed, reaching up to 120 LFF drives per array.

Q: Which RAID levels are supported?
A: RAID 0 (read cache only), 1, 5, 6, 10 and MSA-DP+ are supported.

Q: Does it support snapshots and thin provisioning?
A: Yes. It includes virtualised snapshot technology, thin provisioning, volume copy and automated tiering.
