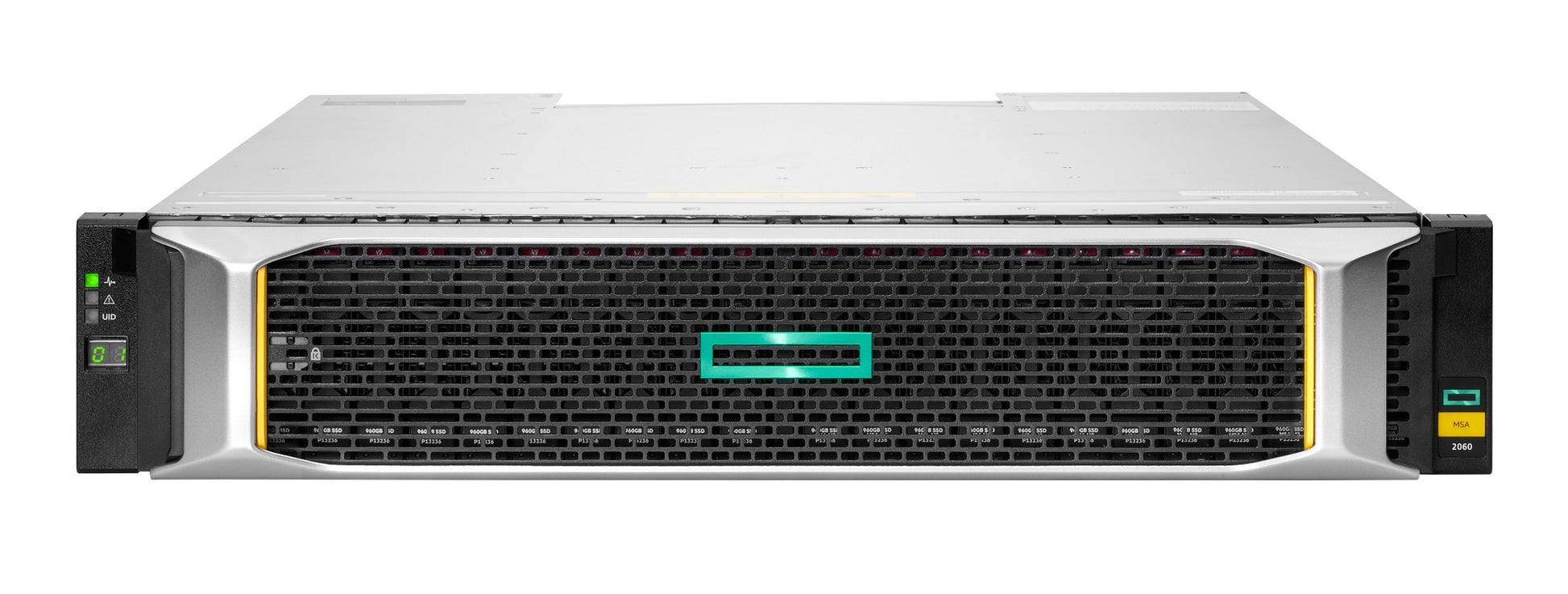

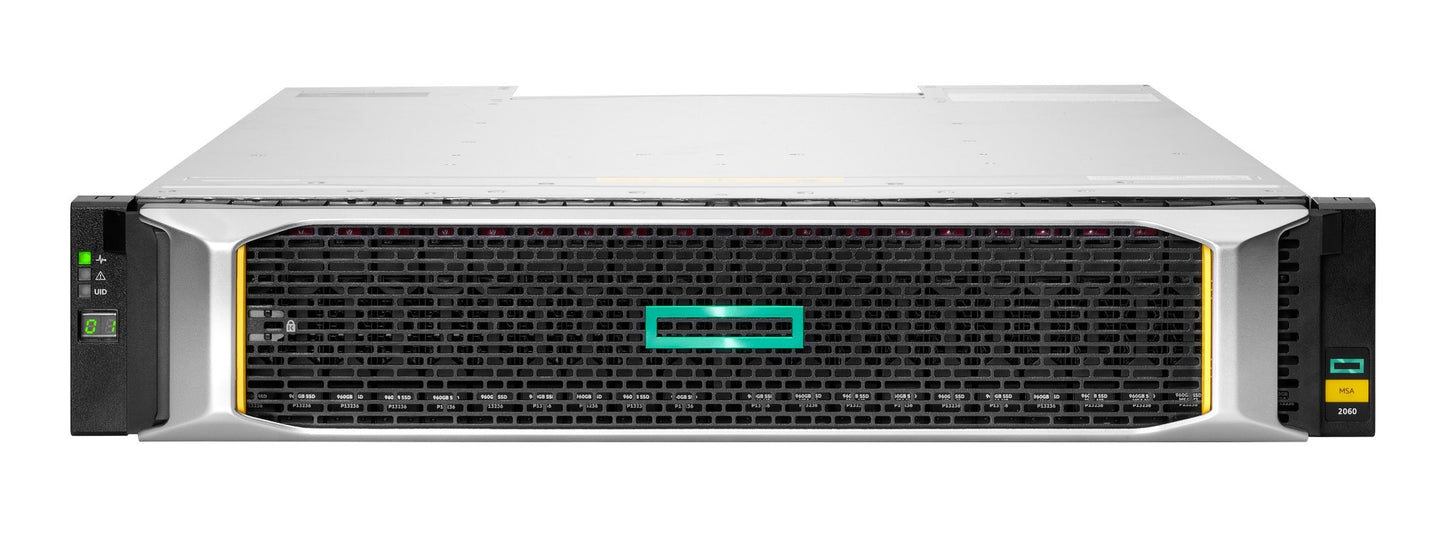

Aruba R0Q76B | MSA 2060 24-Bay SFF SAN Array, 10GbE iSCSI

R0Q76B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The MSA 2060 10GbE iSCSI SFF is a 2U SAN storage array with 24 x 2.5in SAS drive bays and two active/active controllers, each providing four 10/25GbE iSCSI host ports. It suits small and remote office deployments needing block storage with snapshots, thin provisioning and replication. The array scales with up to nine additional expansion enclosures, mixing LFF and SFF, and supports both HDD and SSD media.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Virtualised snapshot technology for data protection and instant recovery
- Remote replication over Fibre Channel or iSCSI for disaster recovery
- Thin provisioning and automated tiering across hybrid HDD and SSD
- Support for encrypted SSDs and HDDs with local key management
- Flexible mixed LFF and SFF expansion architecture
- Dual hot-swappable active/active controllers for resilience

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack-mountable, 24 x 2.5in SFF drive bays (SAS 12Gb/s)
- Controllers: 2 x MSA 2060 iSCSI controllers, dual hot-swappable, active/active
- Host ports: 4 per controller, 8 total, 10/25GbE iSCSI (Gen6 SFPs required, not included in the base system)
- Access type: Block
- RAID levels: 0, 1, 5, 6, 10, MSA-DP+
- Performance: up to 395,000 IOPS
- Expansion: up to 9 additional enclosures (10 total), mixing LFF and SFF, maximum 240 SFF drives per array
- Maximum raw capacity: 1843.2TB with all SFF drives
- Supplied with: chassis, two controllers, two AC power supplies, two 1.5m power cords and rack-mount kit
- Drives: none installed

FAQs

Q: Are drives included with this MSA 2060 array?
A: No. The array ships with the chassis, two controllers, two AC power supplies, two power cords and a rack-mount kit, with no drives installed. You add SAS HDDs or SSDs to suit your capacity and performance needs.

Q: Are SFP transceivers included for the iSCSI host ports?
A: No. The 10/25GbE iSCSI host ports require Gen6 SFPs, which are not included in the base system and must be selected separately.

Q: How can I expand storage capacity?
A: The array supports up to nine additional expansion enclosures, ten in total, mixing LFF and SFF enclosures, with a maximum of 240 SFF drives per array.

Q: Which RAID levels and data services are supported?
A: RAID 0, 1, 5, 6, 10 and MSA-DP+ are supported, along with virtualised snapshots, thin provisioning, automated tiering and remote replication over Fibre Channel or iSCSI.

Q: What host connectivity does this variant provide?
A: It has two controllers with four 10/25GbE iSCSI ports each, giving eight host ports in total for block-level SAN access.
