• HPE ProLiant DL380 Gen10 Aruba R0Q75B 12-bay 2U iSCSI SAN server
1 1

Aruba

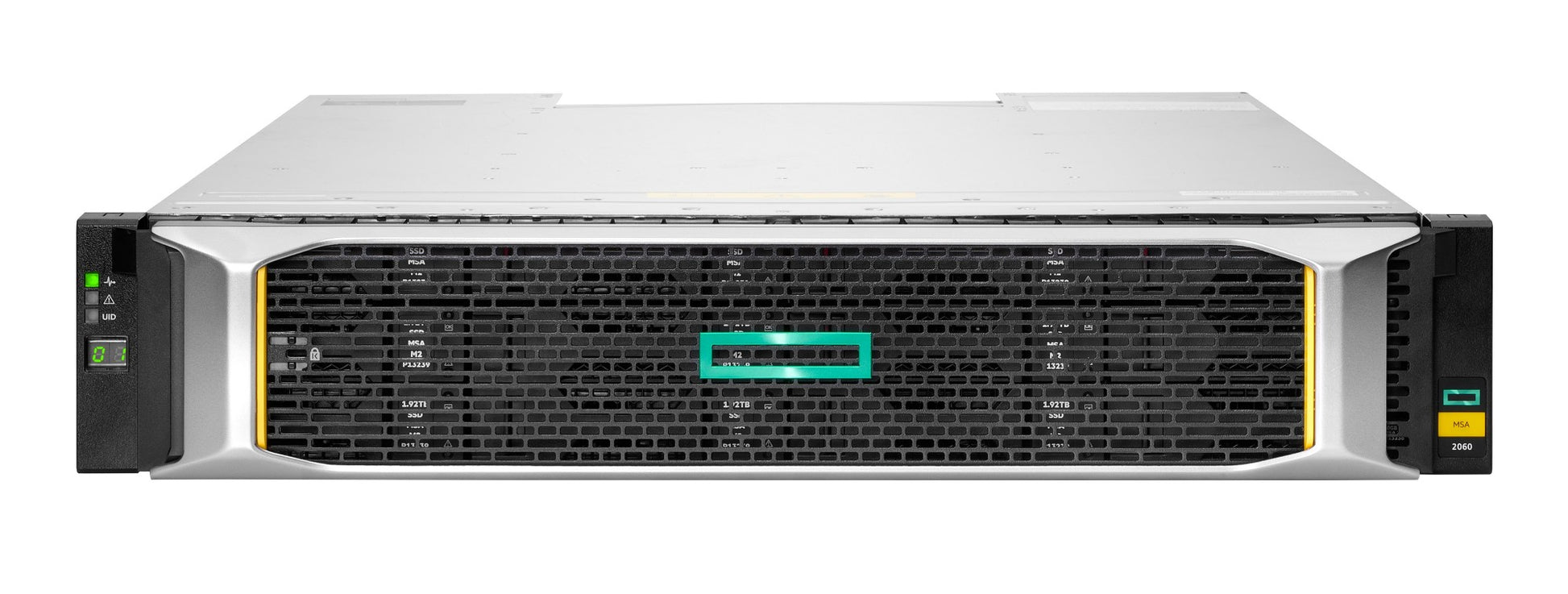

Aruba R0Q75B | MSA 2060 12-Bay LFF 10GbE iSCSI SAN Storage, 94% PSU

R0Q75B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

This 2U SAN storage array offers 12 large form factor 3.5in bays and two hot-swappable active/active controllers, each with 4 x 10/25GbE iSCSI host ports for shared block storage. The 'B' model includes the 94% efficient power supply and ships without SFPs, so 10GbE iSCSI links can use DAC cables or separately chosen optics. It suits small and mid-sized businesses and branch offices that need dependable shared storage with snapshots, tiering and remote replication, and can scale with up to 9 expansion enclosures over 12Gb SAS.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 6th Gen MSA architecture with Tiering 2.0 and MSA DP+ RAID protection
- Virtualised snapshot technology for data protection and instant recovery
- Remote replication over Fibre Channel or iSCSI for disaster recovery
- Up to 45% more IOPS and up to 60% better sequential throughput than MSA Gen5, depending on host protocol
- New web interface and RESTful management interface
- Customer self-repairable and self-upgradeable design with Health Check analytics
- 10GbE iSCSI configurations can use DAC cables instead of SFPs
- Optional locking bezel and next-generation drive carriers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2U rack-mount chassis with 12 x 3.5in LFF drive bays (HDD and/or SSD)
- 2 x hot-swappable active/active controllers
- 4 x 10/25GbE iSCSI host ports per controller, 8 host ports per array
- Block access type
- 12Gb SAS drive expansion, up to 9 expansion enclosures (LFF and/or SFF mixed)
- 24GB system cache with battery-free cache backup using super capacitors and MMC
- Maximum read cache of 8TB per array
- Dimensions approx. 8.9 x 44.5 x 50.8 cm, weight approx. 5 kg
- Energy Star and USGv6 certified
- Includes chassis, two controllers, two AC power supplies, two 1.5m C14 power cords and rack-mount kit
- SFPs not included

FAQs

Q: Are SFP transceivers included with this storage array?
A: No. SFPs are not included in the base system. For 10GbE iSCSI connections you can use DAC cables instead of separate SFP transceivers.

Q: How many host connections does this array provide?
A: It has two controllers, each with 4 x 10/25GbE iSCSI host ports, giving 8 host ports per array.

Q: Can capacity be expanded beyond the 12 internal bays?
A: Yes. The array supports up to 9 expansion enclosures over 12Gb SAS, and LFF and SFF enclosures can be mixed.

Q: What does the 'B' model designation mean?
A: The 'B' model includes the 94% efficient power supply, which meets EU Lot9 requirements.

Q: Does this array support replication for disaster recovery?
A: Yes. It supports remote replication over Fibre Channel or iSCSI, along with virtualised snapshots for data protection and instant recovery.
